7 Inch Color Touchscreen Ventilation Controller with Automatic Fan Speed Control WiFi Remote Control
7 Inch Color Touchscreen Ventilation Controller with Automatic Fan Speed Control WiFi Remote Control
7 Inch Color Touchscreen Ventilation Controller with Automatic Fan Speed Control WiFi Remote Control
7 Inch Color Touchscreen Ventilation Controller with Automatic Fan Speed Control WiFi Remote Control
Specifications
Supply Ability :
100000pcs
Model Number :
G7 Pro
MOQ :
1
Brand Name :
OEM or neutral
Design Style :
Contemporary, Modern, Minimalist, Industrial, European, Tropical
Feature :
Flexible, Energy Saving, Easy Install
Application :
Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell
WIFI Function :
Support Tuya app & Smart life app
Payment Terms :
T/T
Optional built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Price :
$103
Delivery Time :
2-3 weeks
Place of Origin :
Guangdong, China
Certification :
CE and RoHS
Shell Material :
PC and ABS
Description
Automatic Ventilation Scheduling Multi-Speed Fan Control Ventilation System Controller
Product Overview

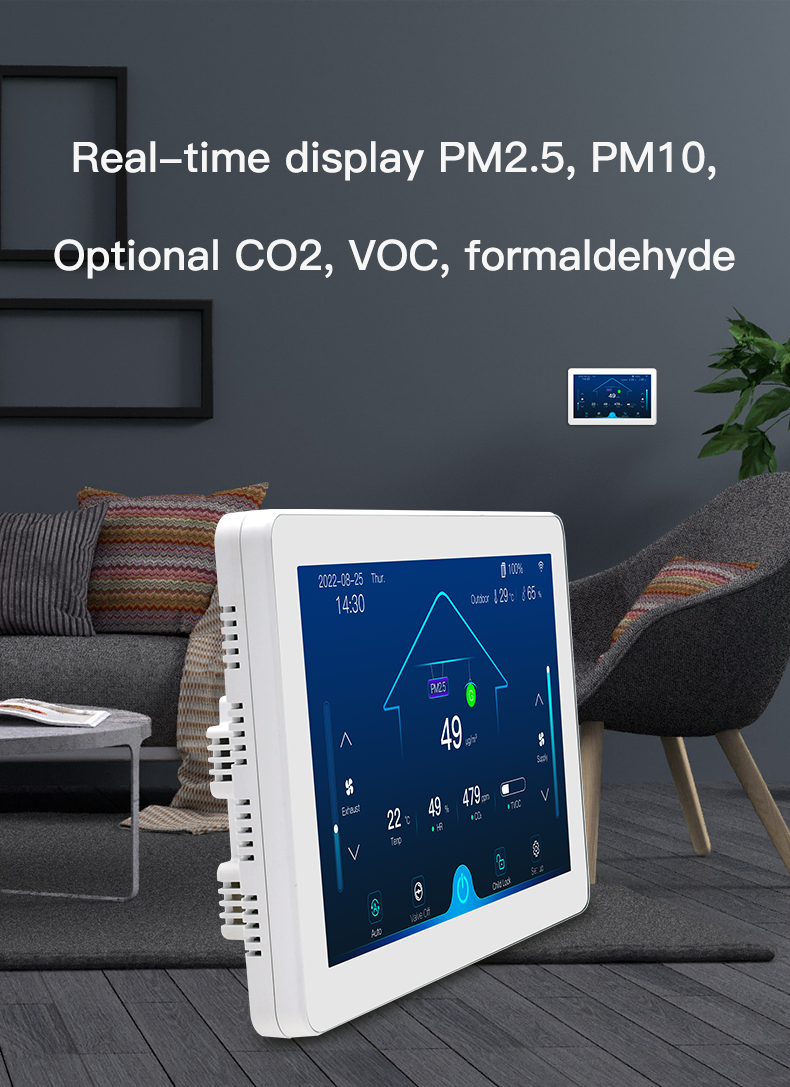

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.

Equipped with Wi-Fi for remote internet access and control, the controller also includes RS485 port and MODBUS protocol for communication with smart home systems and building automation. The AC version outputs relay signals to control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation.

Suitable for residential, commercial, and industrial applications, this system effectively improves air quality while creating healthy, comfortable, efficient, and energy-saving environments.

Key Features
  • 7-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
  • Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
  • Standard 86-type wall-mounted design for easy installation
  • Wi-Fi remote control via Smart Life App and Tuya App
  • RS485 communication support for building automation and system integration
  • OEM & ODM customization available including UI interface design, logo branding, and housing color customization
Technical Specifications

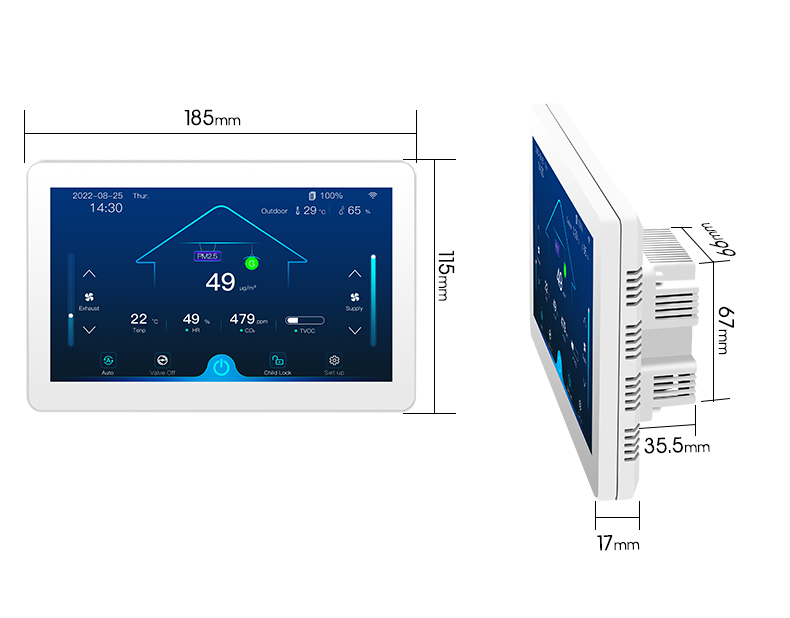

Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5% RH to 90% RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
Product Images
