4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
Specifications
Place of Origin :
China
Built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Rated voltage :
AC110-240V, 50/60Hz
Payment Terms :
T/T
Control power :
≤ 200W
Price :
$65
Resolution :
480*480
Brand Name :
OEM or neutral (no brand)
Delivery Time :
2-3 weeks
Dimension :
86 × 86 × 52.5 mm
Certification :
CE, RoHS
Material :
PC and ABS
Model Number :
G6-S
Supply Ability :
100000pcs
MOQ :
1
Description
Product overview:

G6-S fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional) and other data in real time; can be connected to WIFI (optional); with ModBus RTU (RS485) interface.

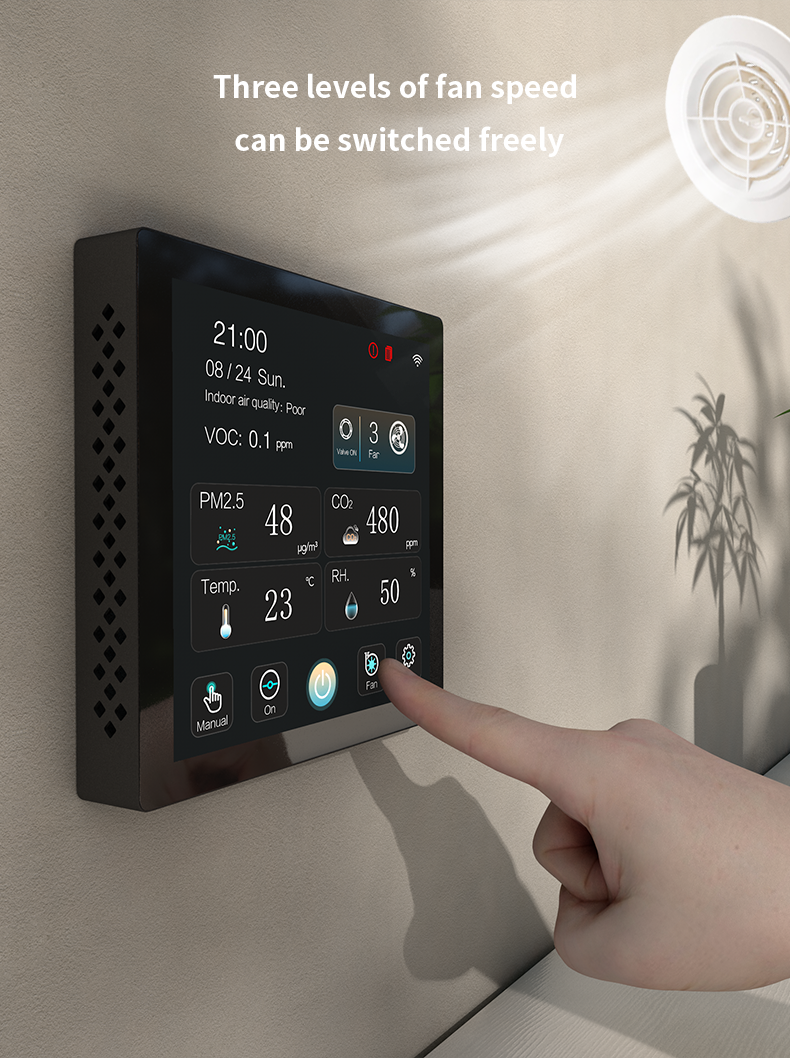

Users can connect to backends such as smart homes through the ModBus interface to monitor device status; the output signal of the AC 3-speed controller directly controls the start and speed of the fresh air fan.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Product features:

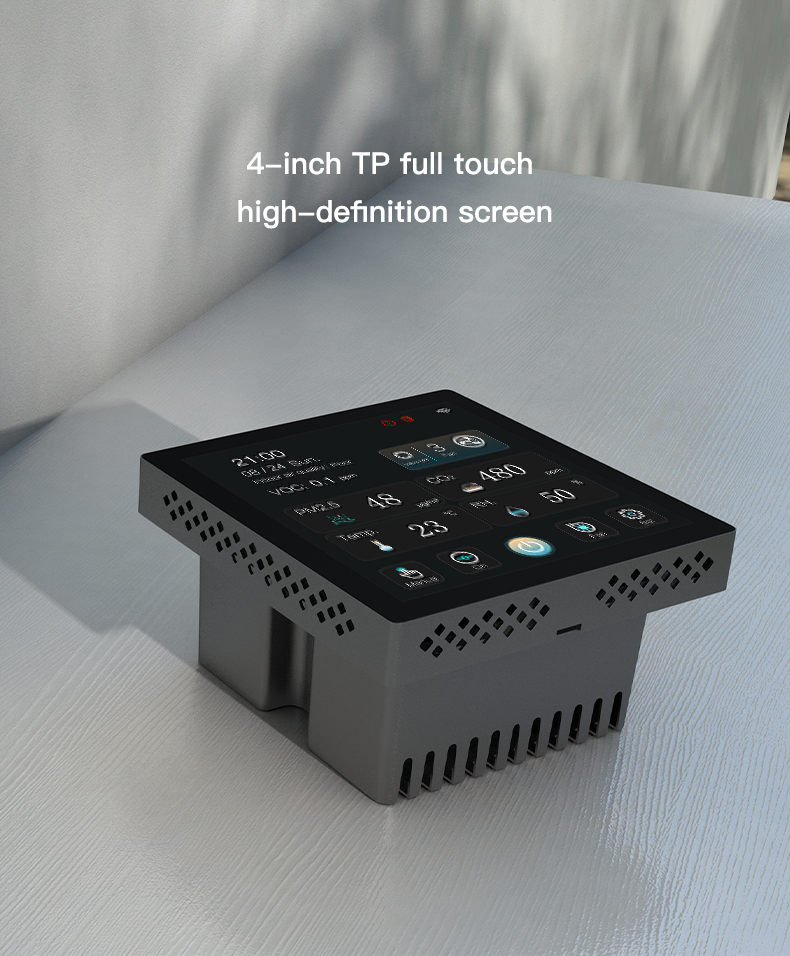

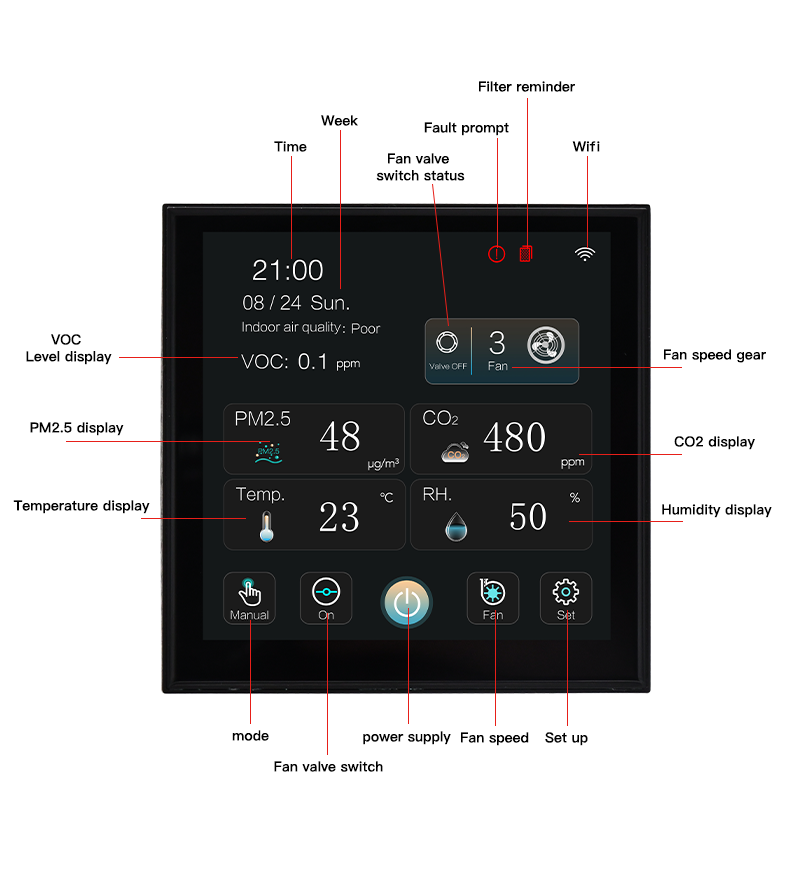

  • 4-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
  • Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
  • Standard 86-Type Wall Mounting for quick and convenient installation

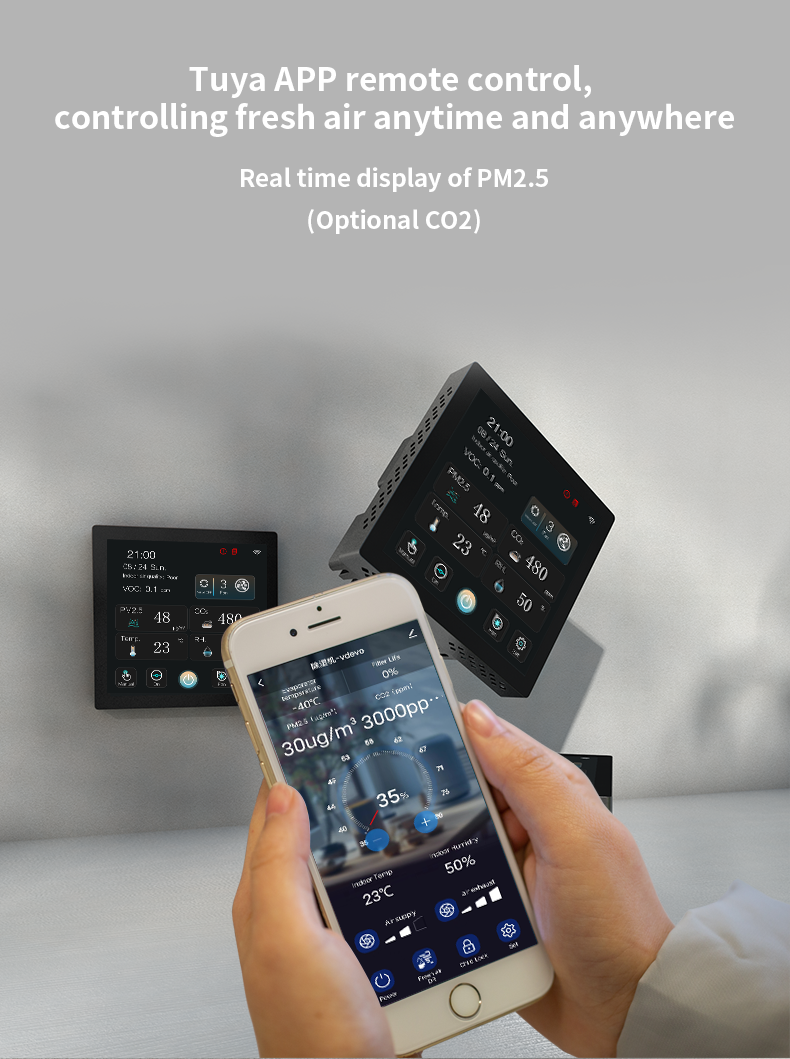

  • Wi-Fi App Control via Smart Life and Tuya App for remote access anytime, anywhere
  • RS485 Communication Interface for smart building and HVAC system integration
  • OEM/ODM Customization including UI design, logo printing, and enclosure color options
  • Compatible with Fresh Air Ventilation, HRV, and ERV Systems
Product specifications:
* Dimension: 86 × 86 × 52.5 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3
Product images:
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
4 Inch Color Touchscreen Smart HVAC Controller With Real Time CO2 PM2.5 VOC Monitoring
