Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule
Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule
Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule
Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule
Specifications
Display size :
4-inch full-color touchscreen
Standby power :
≤ 2.0W
Control power :
≤ 200W
MOQ :
1
Operating temperature :
-10℃--- +50℃
Model Number :
G6-S
Place of Origin :
Guangdong, China
Price :
$65
Brand Name :
OEM or neutral (no brand)
Certification :
CE, RoHS
Delivery Time :
2-3 weeks
Rated voltage :
AC110-240V, 50/60Hz
Dimensions :
86 × 86 × 52.5 mm
Payment Terms :
T/T
Supply Ability :
100000pcs
Description
Product overview:

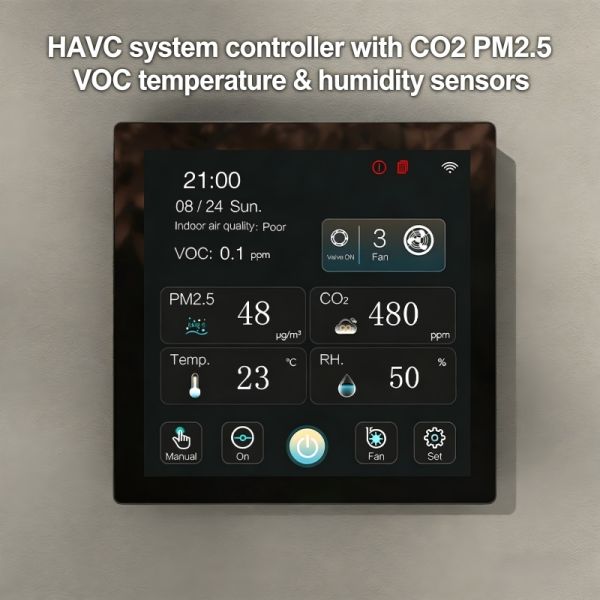

The Smart Fresh Air Ventilation Controller is a powerful and user-friendly solution designed for modern fresh air, HRV, and ERV ventilation systems. Featuring a 4-inch full-color touchscreen display, it provides real-time monitoring of indoor air quality and intelligent ventilation management for residential and commercial applications.

Equipped with advanced CO₂, PM2.5, and VOC monitoring capabilities, the controller automatically adjusts fan speed according to indoor air quality conditions, ensuring a healthier and more comfortable environment while optimizing energy consumption. Users can easily switch between automatic and manual operation modes to meet different ventilation requirements.

Product features:
  • Real-time CO₂, PM2.5, and VOC monitoring
  • Automatic fan speed control based on air quality
  • Wi-Fi remote control via Smart Life App and Tuya App
  • RS485 communication for system integration
  • Auto, Manual, and Scheduled operation modes
  • Standard 86-type wall-mounted installation
  • Compatible with Fresh Air, HRV, and ERV systems
Product specifications:

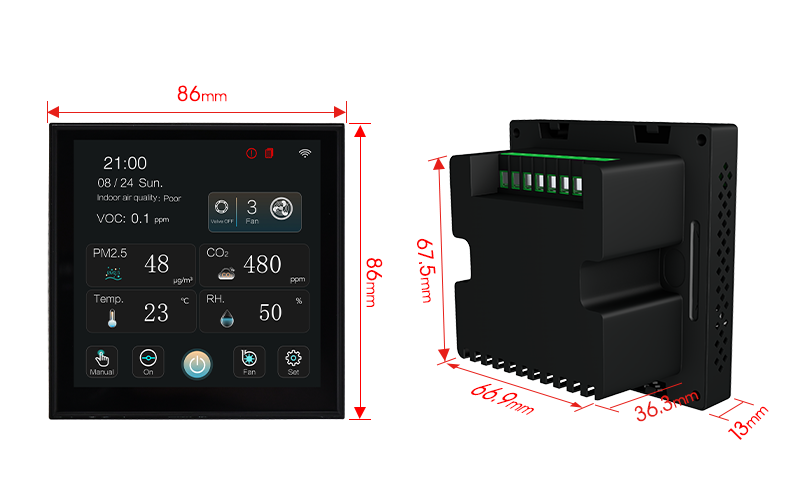

* Dimension: 86 × 86 × 52.5 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3
Product images:

Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule

Smart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable ScheduleSmart Fresh Air Ventilation Controller with Real Time CO₂ PM2.5 VOC Display WiFi Remote Access Weekly Programmable Schedule
