Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Specifications
Model Number :
G5-S
Operating Mode :
Auto / Manual / Schedule Mode
MOQ :
1
Delivery Time :
2-3 weeks
Dimension :
86 × 86 × 40 mm
Payment Terms :
T/T
Price :
US$95
Warm-up time :
2 minutes
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Fan Control :
Multi-Speed Fan Control
Certification :
CE, RoHS
Suitable fans :
AC/EC/DC
Place of Origin :
Guangdong, China
Power Supply :
Customized According to Project Requirements
Description
Product Overview:

G5-S Smart Fresh Air Ventilation Controller is an advanced indoor air quality management panel designed for modern HVAC, HRV, and ERV ventilation systems. It features a LCD-color display that provides real-time monitoring of key air parameters, including PM2.5, CO₂, TVOC, temperature, and humidity, allowing users to clearly understand and manage indoor air conditions at a glance.

It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality so as to create a healthy, comfortable, energy-efficient living and working environment.

Key Features:
Remote App Control

Control and monitor the ventilation system anytime through Smart Life or Tuya Smart App.

RS485 Integration

Supports integration with BMS, HVAC, and smart building management systems.

Flexible OEM/ODM Customization

Customized UI design, startup logo, enclosure color, and functional development available.

Wide System Compatibility

Suitable for Fresh Air Ventilation Systems, HRV (Heat Recovery Ventilation), and ERV (Energy Recovery Ventilation) applications.

Product Specifications:

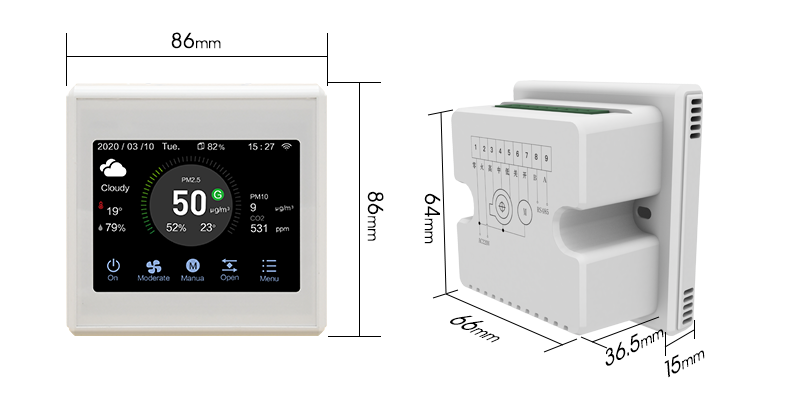

* Dimension: 86 * 86 * 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 5 years
* PM2.5 display range: 1ug/m3——999ug/M3

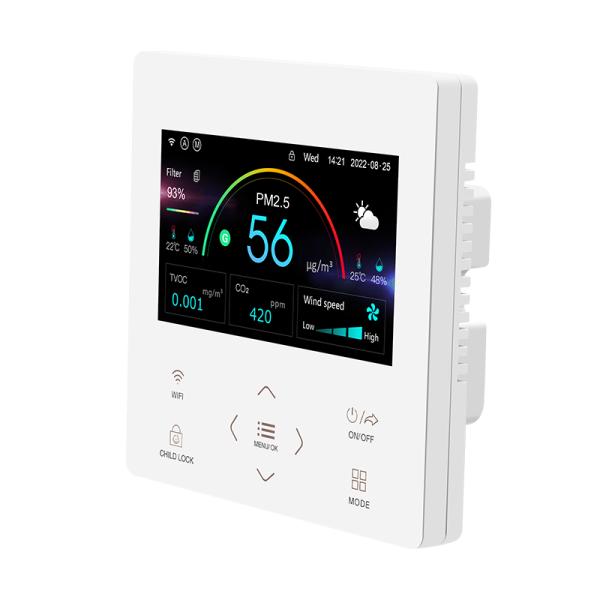

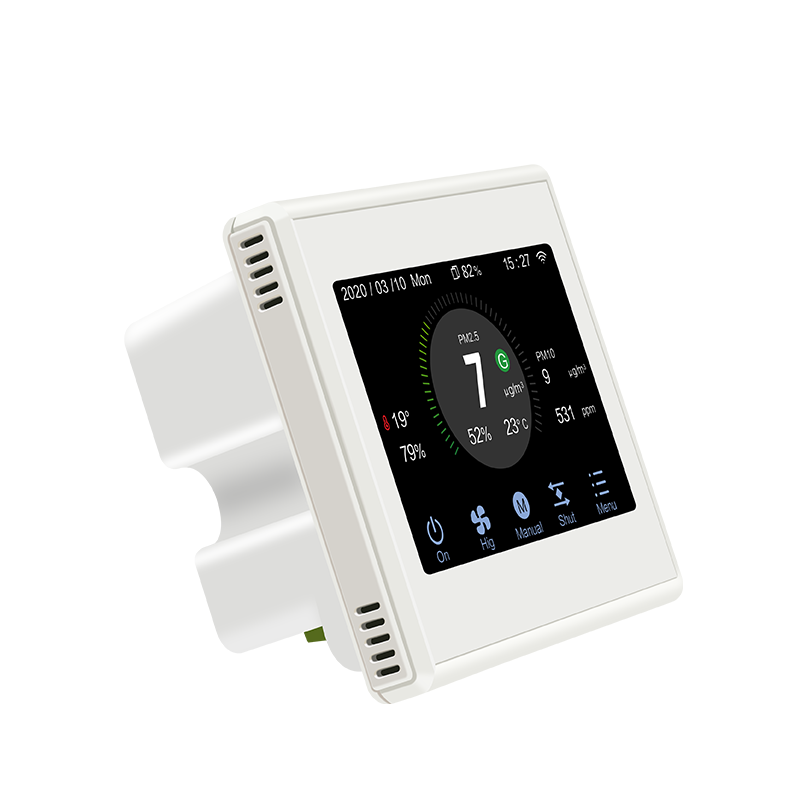

Product Images:

Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller

Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Wiring Diagram:
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
Certifications:
Fresh Air Smart HVAC Controller RS485 Integration Demand Controlled Ventilation Controller
