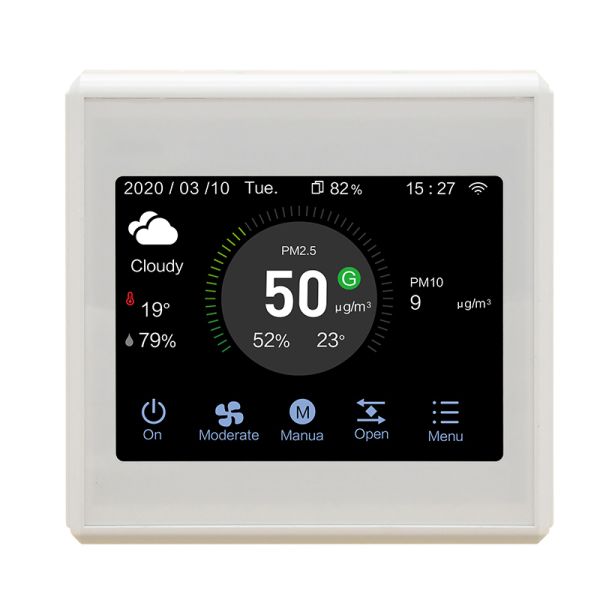

WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
Specifications
Model Number :
G5-S
Shell color :
White
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Timer Function :
Weekly Programmable Schedule
Certification :
CE, RoHS
Suitable for fans :
AC/EC/DC
Place of Origin :
Guangdong, China
Connectivity :
Wi-Fi, RS485
MOQ :
1
Delivery Time :
2-3 weeks
Power Supply :
AC220V
Payment Terms :
T/T
Price :
US$95
Installation :
Standard 86-Type Wall Mounting
Description
Product Overview:

G5-S intelligent HVAC system controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time indoor PM2.5 concentration and CO2 concentration (optional). Controller output signal can directly control the startup and speeds of the air purification equipment.

With Wi-Fi connectivity, the device enables remote control and monitoring through smart apps, while the intuitive touch interface and physical buttons provide flexible local operation. Additional features such as child lock, timing function, and multi-directional navigation keys enhance usability and safety for residential and commercial applications.

Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.

Key Features:
  • Automatic fan speed control based on air quality
  • Wi-Fi remote control via Smart Life App and Tuya App
  • RS485 communication for system integration
  • Auto, Manual, and Scheduled operation modes
  • Standard 86-type wall-mounted installation
  • Compatible with Fresh Air, HRV, and ERV systems
  • Energy-saving demand-controlled ventilation
  • OEM & ODM customization available
Technical Specifications:
* Dimension: 86 * 86 * 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 5 years
* PM2.5 display range: 1ug/m3——999ug/M3
Product Images:

WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System

WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System

WiFi RS485 Smart HVAC Controller PM2.5 CO2 TVOC Monitoring For Fresh Air System
