4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution
4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution
4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution
4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution
Specifications
Shell color :
White
Model Number :
G7
Communication Interface :
RS485 Standard
MOQ :
1
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Wireless Control :
Wi-Fi Remote Access
Price :
US$98
Supply Ability :
100000pcs
Timer Function :
Weekly Programmable Schedule
Certification :
CE, RoHS
Built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Brand Name :
OEM or neutral (no brand)
Energy Saving :
Demand-Controlled Ventilation Based on Air Quality
Place of Origin :
Guangdong, China
Description
Product Overview:

This Smart Fresh Air Ventilation Controller G7 is an advanced indoor air quality management panel designed for modern HVAC, HRV, and ERV ventilation systems. It features a 4.3-inch full-color display that provides real-time monitoring of key air parameters, including PM2.5, CO₂, TVOC, temperature, and humidity, allowing users to clearly understand and manage indoor air conditions at a glance.


With Wi-Fi connectivity, the device enables remote control and monitoring through smart apps, while the intuitive touch interface and physical buttons provide flexible local operation. Additional features such as child lock, timing function, and multi-directional navigation keys enhance usability and safety for residential and commercial applications.



Main Features:

Remote App Control

Control and monitor the ventilation system anytime through Smart Life or Tuya Smart App.

Smart Air Quality Control

Automatically adjusts fan speed according to real-time CO₂, PM2.5, and VOC levels to maintain healthy indoor air quality.

4.3-Inch Touchscreen

Large color LCD display provides clear visualization of system status, sensor data, and operating modes.

RS485 Integration

Supports integration with BMS, HVAC, and smart building management systems.



* Dimension:
120 × 120 × 53 mm
* Warm-up time:
1 minute
* Fixing hole distance:
60mm (standard)
* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire
* Recovery time:
≤ 30 seconds
* Rated voltage:
-10℃--- +50℃
* Standby Power:
≤ 3.0W
* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W
* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC
* PM2.5 display range:
0ug/m3——999ug/M3
* Temperature display range:
0℃ —— 99℃
* C02 display range:
0ppm——9999ppm
* Humidity display range:
0%—99%

Product Images:

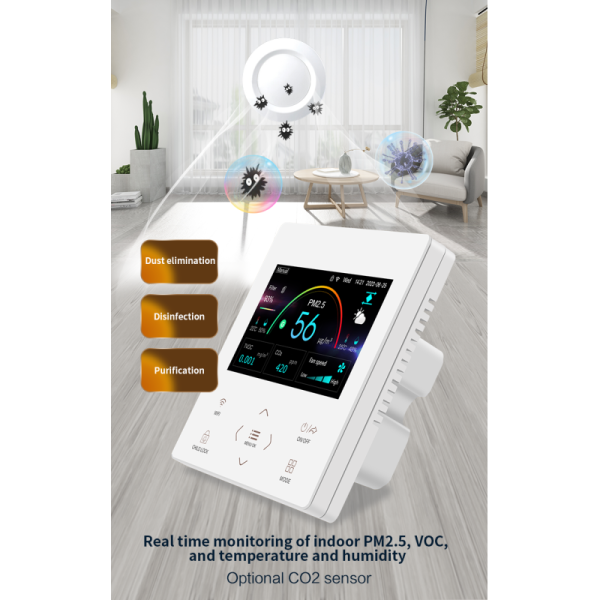

4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution

4.3 Inch LCD Color ERV Smart HVAC Controller With Ventilation System Parts Management Solution
