IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
Specifications
Model Number :
G5-S
Price :
US$95
Product Name :
Smart Fresh Air Ventilation Controller
Supply Ability :
100000pcs
Design Style :
Contemporary, Modern, Minimalist, Mediterranean, European
Payment Terms :
T/T
Suitable for fans :
AC/EC/DC
Fan Speed Levels :
Low/ Medium/ High
Delivery Time :
2-3 weeks
Application :
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet
Brand Name :
OEM or neutral (no brand)
Power Supply :
AC220V
Place of Origin :
Guangdong, China
MOQ :
1
Description

Product Overview:

G5-S intelligent HVAC system controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time indoor PM2.5 concentration and CO2 concentration (optional). Controller output signal can directly control the startup and speeds of the air purification equipment.


Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.



Key Features:

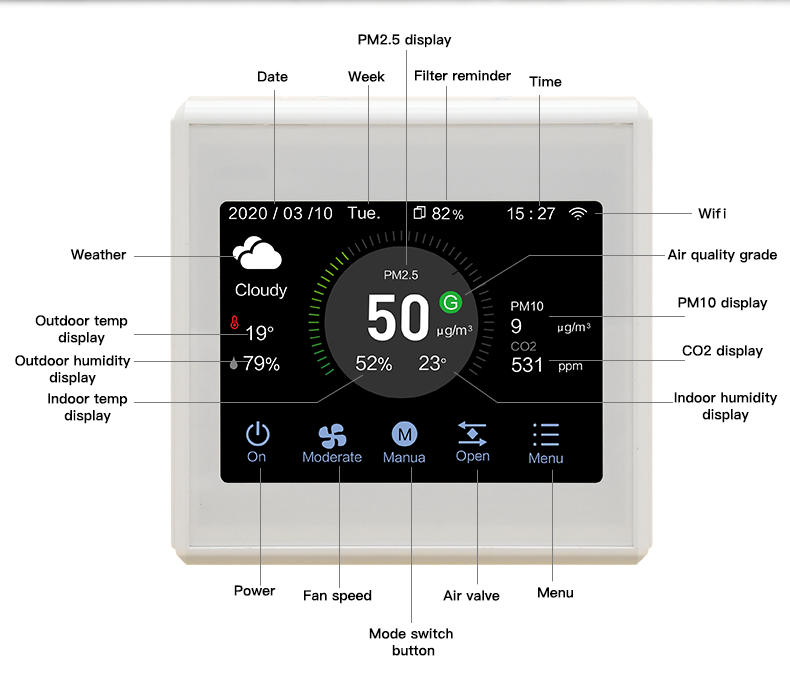

  • LCD color touchscreen display for intuitive operation
  • Automatic fan speed control based on real-time CO₂, PM2.5, and VOC levels
  • Smart air quality management for fresh air systems
  • Multi-speed ventilation adjustment for optimal indoor air quality
  • Data-driven intelligent control for energy-efficient operation
  • Suitable for HRV/ERV and other fresh air ventilation systems
* Dimension:
86 × 86 × 40 mm

* Warm-up time:
2 minutes
* Fixing hole distance:
60mm (standard)

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 2.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 99℃

* Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/M3

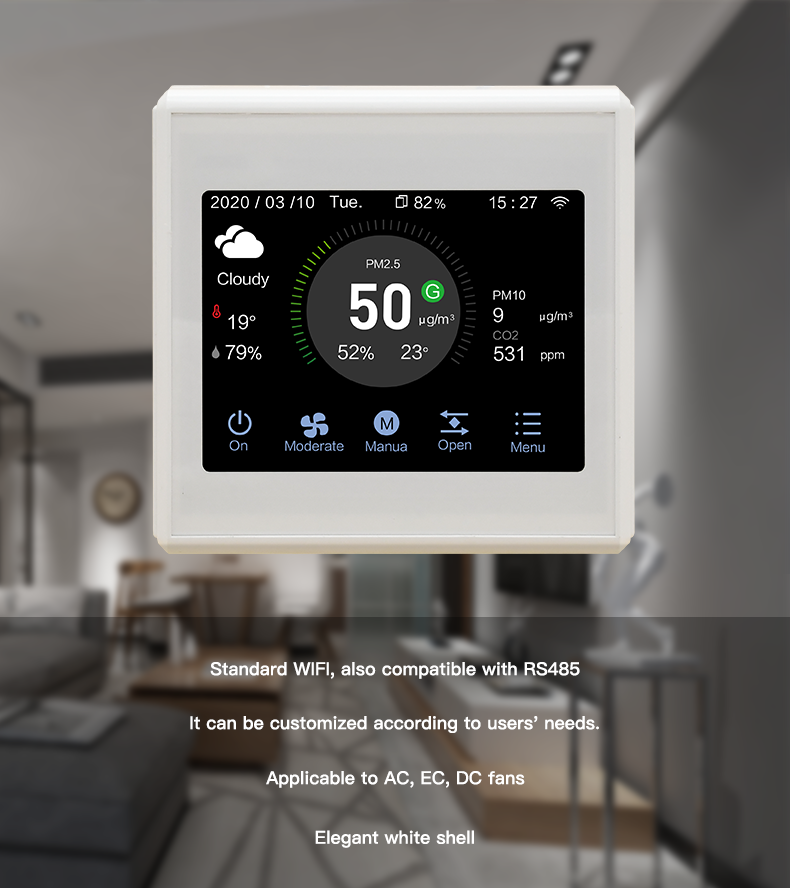

Product Images:

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management





Wiring Diagram:
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
