Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Specifications
Design Style :
Contemporary, Modern, Minimalist, Mediterranean, European
MOQ :
1
Suitable for fans :
AC/EC/DC
Supply Ability :
100000pcs
Warranty :
1 Year
Model Number :
G5-S
Delivery Time :
2-3 weeks
After-sale Service :
Online Technical Support, Other
Application :
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet
Brand Name :
OEM or neutral (no brand)
Price :
US$95
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Feature :
Flexible, Easy Installation
Description
Product Overview:

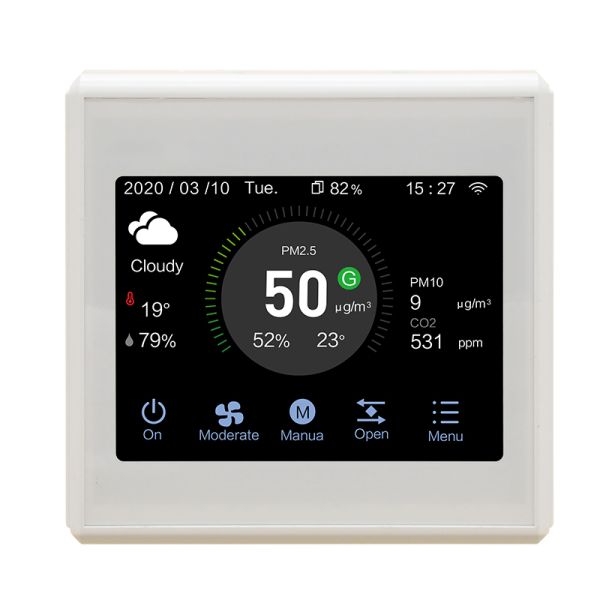

G5-S intelligent air controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time indoor PM2.5 concentration and CO2 concentration (optional). Controller output signal can directly control the startup and speeds of the air purification equipment.

It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality so as to create a healthy, comfortable, energy-efficient living and working environment.

Key Features:
  • Smart HVAC Ventilation Controller with RS485 for Building Automation System
  • Fresh Air System Controller for Commercial HVAC and Smart Building Projects
  • Intelligent Ventilation Control Panel for HRV/ERV and BMS Integration
  • Advanced Building Ventilation Controller with RS485 and Air Quality Sensors
* Dimension:
86 × 86 × 40 mm
* Warm-up time:
2 minutes
* Fixing hole distance:
60mm (standard)
* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire
* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz
* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 2.0W
* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W
* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC
* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 99℃
* Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/M3

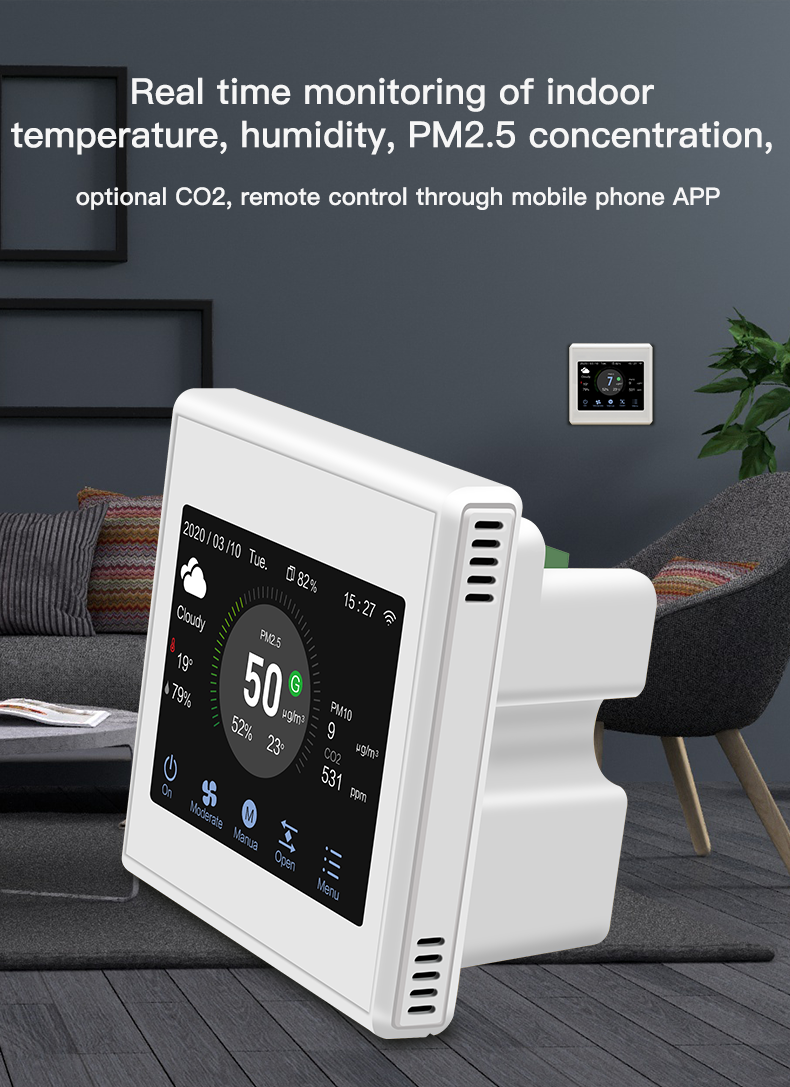

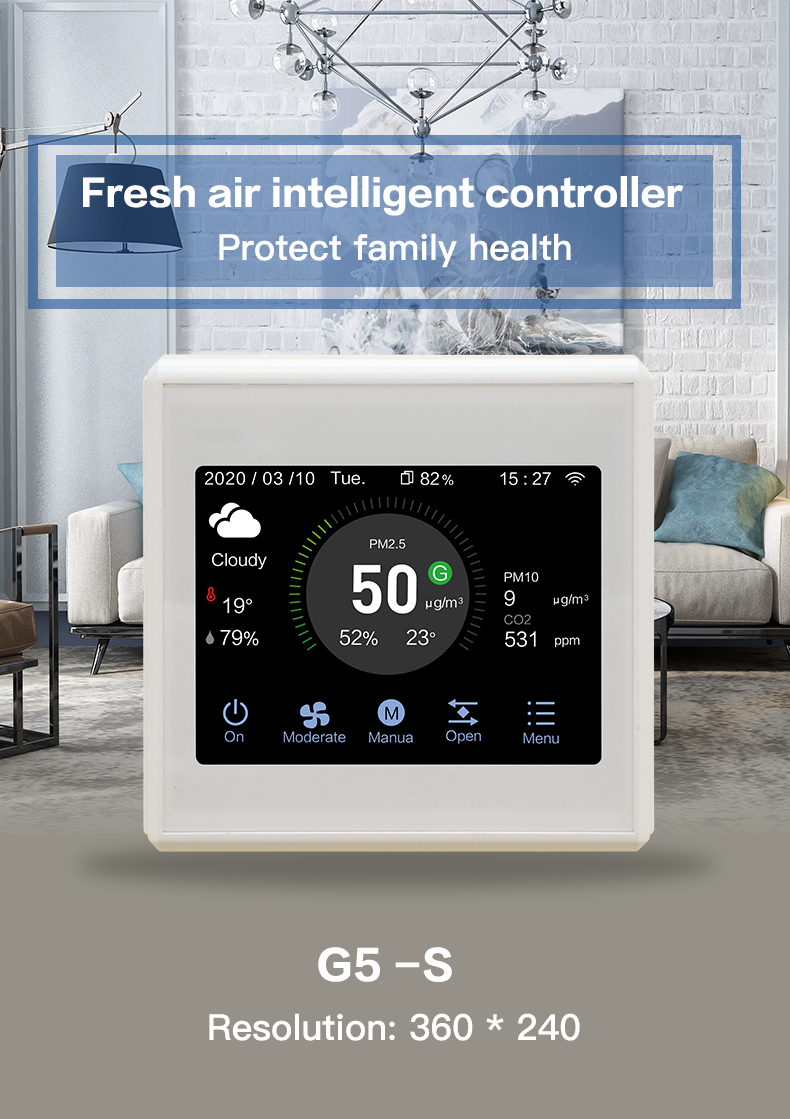

Product Images:
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management



Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management


Wiring Diagram:
Residential Fresh Air Smart HVAC Controller With PM2.5 CO2 TVOC Monitoring Management
