IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
Specifications
Fan Speed Levels :
Low/ Medium/ High
Model Number :
G5-S
Connectivity :
Wi-Fi, RS485
MOQ :
1
Delivery Time :
2-3 weeks
Mobile App :
Smart Life App / Tuya Smart App
Price :
US$95
Payment Terms :
T/T
Supply Ability :
100000pcs
Product Name :
Smart Fresh Air HVAC system Controller
Brand Name :
OEM or neutral (no brand)
Suitable for fans :
AC/EC/DC
Certification :
CE, RoHS
Power Supply :
AC220V
Place of Origin :
Guangdong, China
Description

Product Overview:

G5-S intelligent HVAC system controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time indoor PM2.5 concentration and CO2 concentration (optional). Controller output signal can directly control the startup and speeds of the air purification equipment.


With Wi-Fi connectivity, the device enables remote control and monitoring through smart apps, while the intuitive touch interface and physical buttons provide flexible local operation. Additional features such as child lock, timing function, and multi-directional navigation keys enhance usability and safety for residential and commercial applications.


Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.



Applications:

Residential Homes • Apartments • Offices • Schools • Hotels • Hospitals • Commercial Buildings • Smart Building Projects • HVAC Ventilation Systems




* Dimension:
86 × 86 × 40 mm

* Warm-up time:
2 minutes
* Fixing hole distance:
60mm (standard)

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 2.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 99℃

* Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/M3

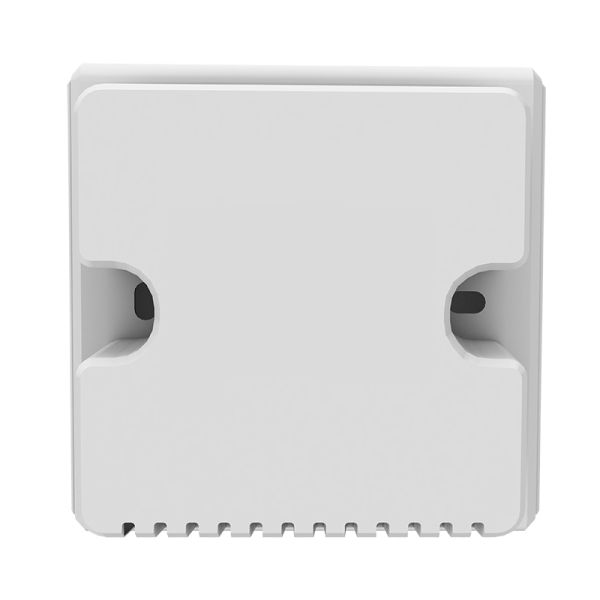

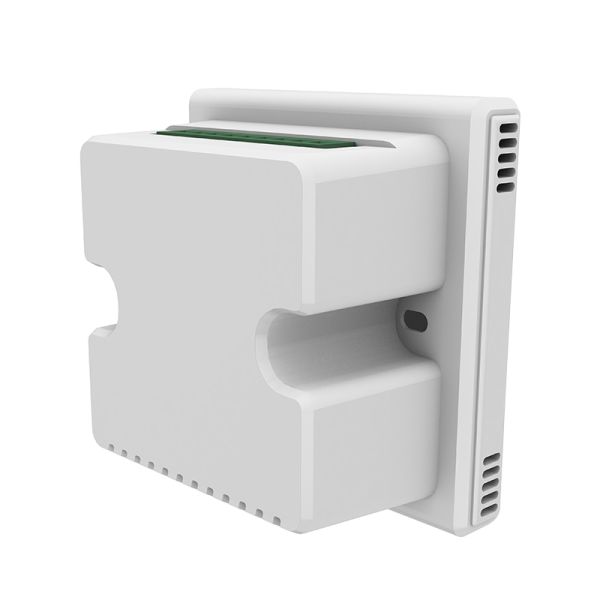

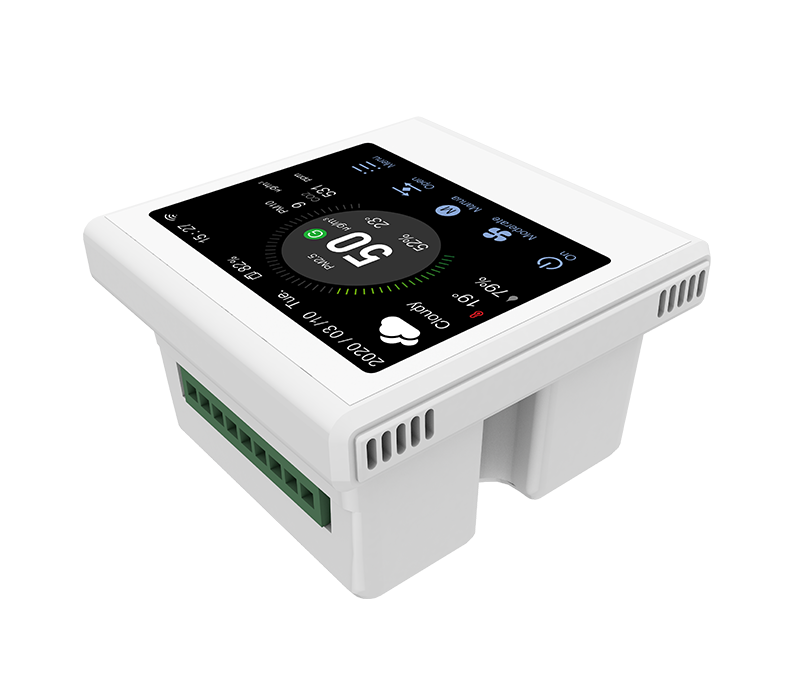

Product Images:

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
