Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control
Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control
Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control
Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control
Specifications
MOQ :
1
Delivery Time :
2-3 weeks
Display :
LCD Color Touchscreen
Payment Terms :
T/T
Model Number :
G6-X-XFCS
Operating temperature :
-10℃--- +50℃
Price :
US$105
Application :
Residential / Commercial
Certification :
CE, RoHS
Operating humidity :
5％RH----90％RH
Place of Origin :
China
Standby Power :
≤ 2.0W
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Function :
Fresh Air Ventilation + Dehumidification Control
Description
Product Overview:

G6-X-XFCS dehumidifier intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 in real time (optional); It can be connected to WIFI (optional), with ModBus RTU (RS485) interface. Users can connect to the background of smart home and others through ModBus interface to realize monitoring of equipment status.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality, create a healthy, comfortable, efficient, environmentally friendly and energy-saving living and working environment.

Key Features:
  • All-in-One Air System Control
    Integrated control of both fresh air ventilation and dehumidification systems, improving overall indoor comfort and air quality.
  • Real-Time Indoor Air Monitoring
    Displays key environmental data including temperature, humidity, CO₂, and PM2.5 (optional) for comprehensive air quality awareness.
  • WiFi Smart Control (Optional)
    Supports remote monitoring and control via mobile app, enabling smart home integration.
  • RS485 ModBus Communication
    Equipped with ModBus RTU (RS485) interface for seamless integration with BMS (Building Management System) and smart home platforms.
  • Multiple Operation Modes
    Includes Auto / Manual mode, providing flexible control for different environments.
Specifications:
* Dimension: 86 × 86 × 39 mm
* Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard)
* Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire
* Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz
* Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W
* Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W
* Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC
* Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃
* Life: ≥ 3 years
* PM2.5 display range: 1ug/m3——999ug/m3
* CO2 display range: 350ppm——2000ppm
Product Images:

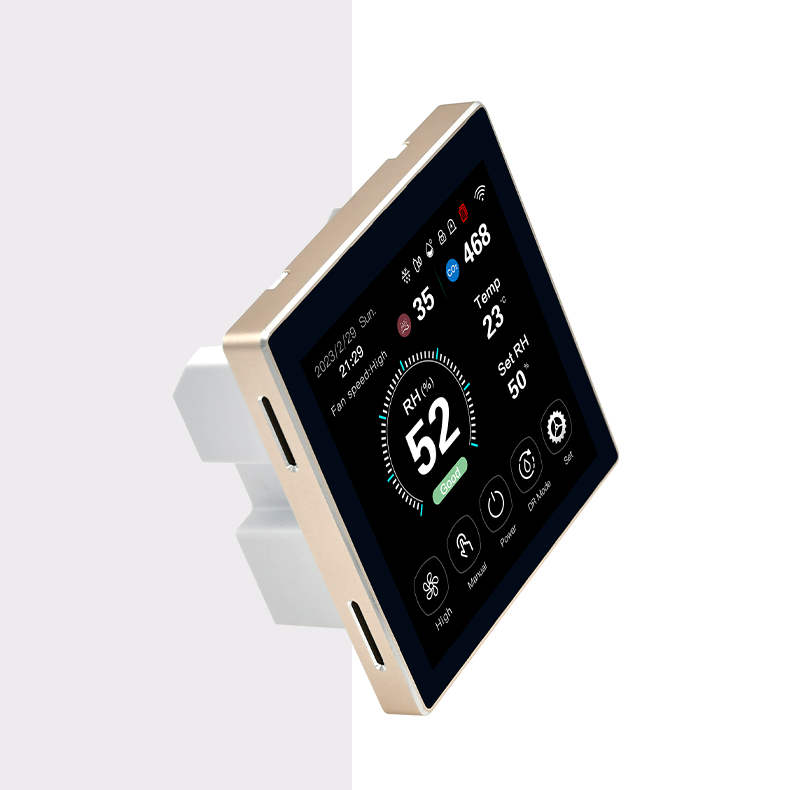

Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control

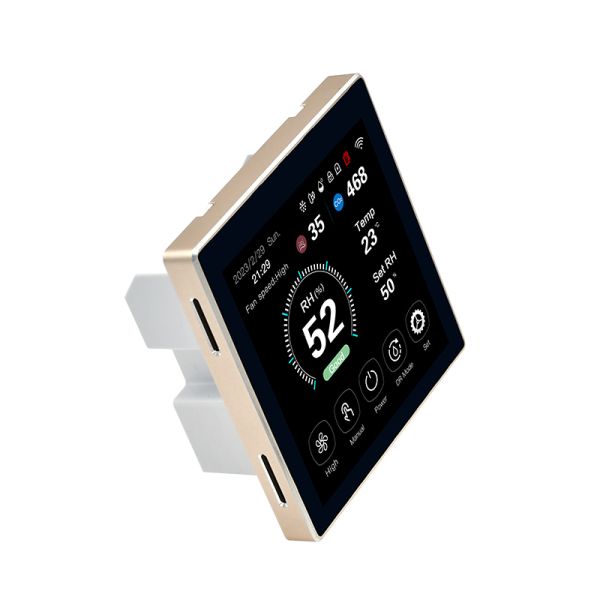

Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control

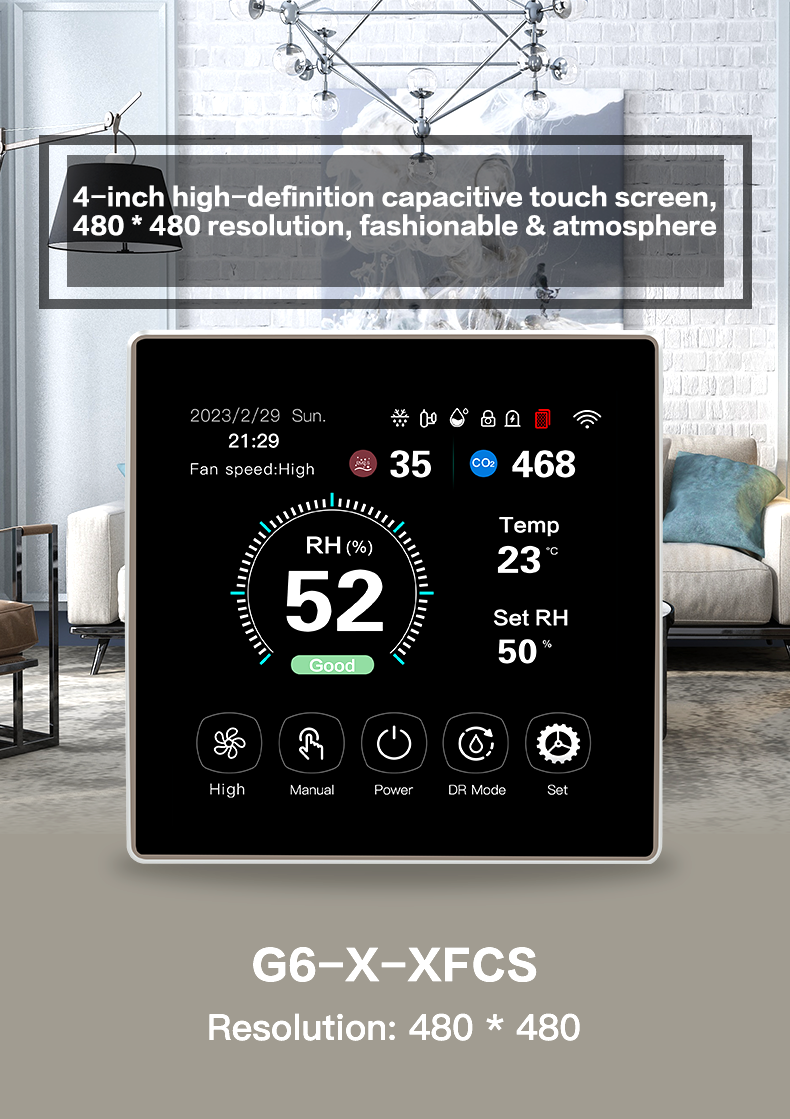

Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control

  • Smart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart ControlSmart Fresh Air Controller with LCD Touchscreen Real Time Air Monitoring WiFi Smart Control
