Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring
Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring
Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring
Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring
Specifications
Model Number :
G6-X-XFCS
Warm-up time :
2 minutes
MOQ :
1
Delivery Time :
2-3 weeks
Operating temperature :
-10℃--- +50℃
Payment Terms :
T/T
Price :
US$105
Standby Power :
≤ 2.0W
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Dimension :
86 × 86 × 39 mm
Certification :
CE, RoHS
Response time :
≤ 10 seconds
Place of Origin :
China
Rated voltage :
AC110-240V, 50/60Hz
Description
Product Overview:

The G6-X-XFCS Intelligent Dehumidifier Controller is designed for advanced indoor air environment management. It can monitor indoor temperature and humidity in real time, with optional support for PM2.5 and CO₂ detection, providing comprehensive air quality insights.

Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.

Key Features:
  • Fresh air ventilation + dehumidification integrated control
  • Real-time temperature & humidity monitoring
  • Optional CO₂ / PM2.5 / VOC air quality detection
  • WiFi remote control (Tuya / Smart Life app optional)
  • RS485 Modbus communication for BMS integration
  • Multiple operation modes: Auto / Manual
  • Energy-saving intelligent control system
  • Compatible with HVAC smart building systems
  • OEM/ODM customization available
Specifications:

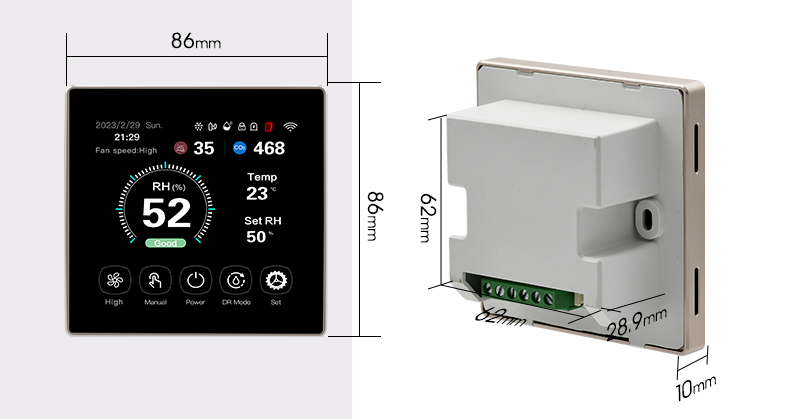

* Dimension: 86 * 86 * 39 mm
* Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard)
* Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire
* Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz
* Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W
* Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W
* Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC
* Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃
* Life: ≥ 3 years
* PM2.5 display range: 1ug/m3——999ug/m3
* CO2 display range: 350ppm——2000ppm

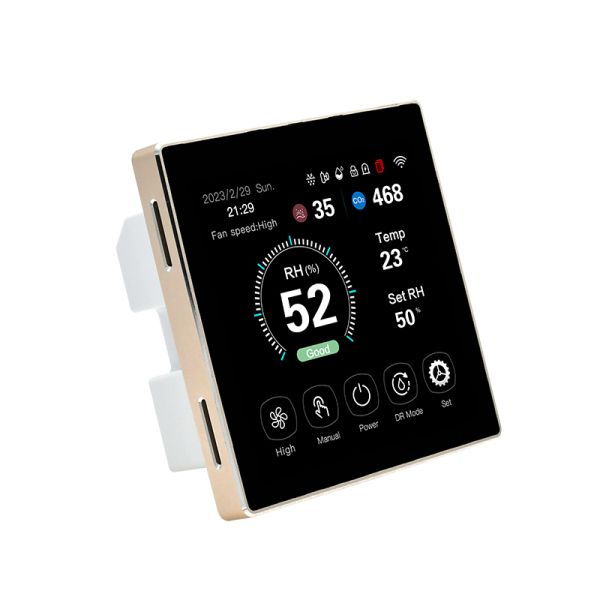

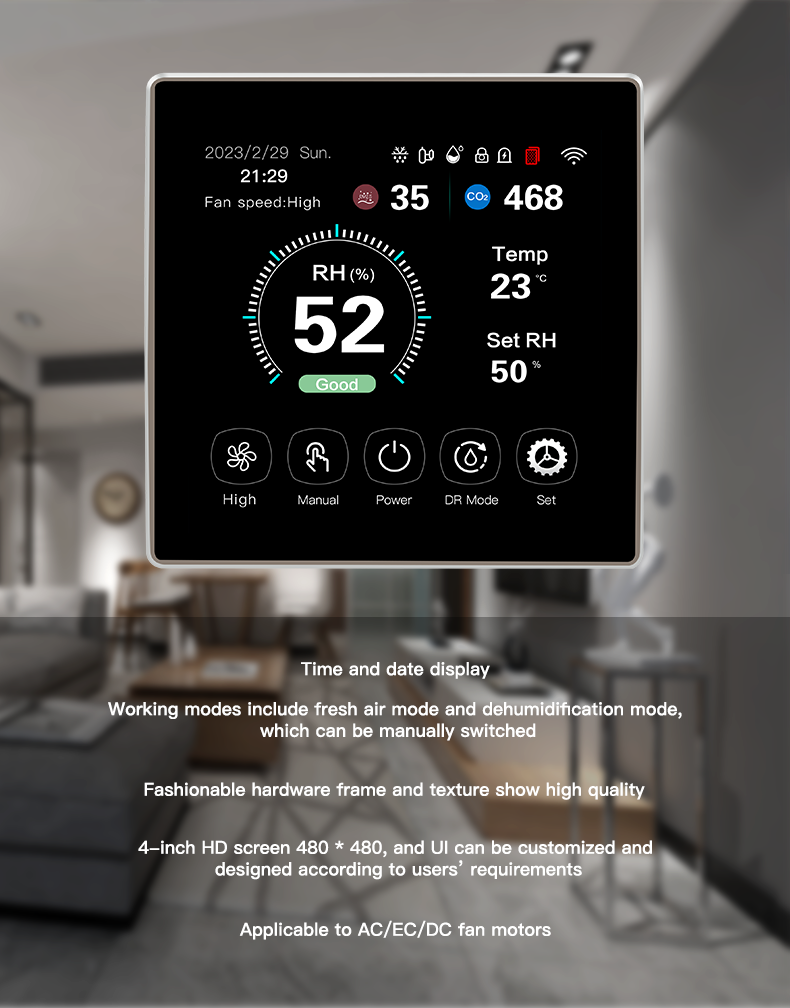

Product Images:

Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring

Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring

Touchscreen Smart HVAC Controller Fresh Air Dehumidifier Controller Real Time Monitoring
