Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management
Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management
Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management
Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management
Specifications
Model Number :
G6-X-XFCS
Fan Speed Control :
Multi-speed intelligent adjustment
MOQ :
1
Delivery Time :
2-3 weeks
Display :
LCD Color Touchscreen
Payment Terms :
T/T
Price :
US$105
Application :
Residential / Commercial
Supply Ability :
100000pcs
Brand Name :
OEM or neutral (no brand)
Function :
Fresh Air Ventilation + Dehumidification Control
Certification :
CE, RoHS
Mobile App :
Tuya Smart / Smart Life (Optional)
Place of Origin :
China
Communication Protocol :
RS485 Modbus RTU
Description
Product Overview:

G6-X-XFCS dehumidifier intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 in real time (optional); It can be connected to WIFI (optional), with ModBus RTU (RS485) interface. Users can connect to the background of smart home and others through ModBus interface to realize monitoring of equipment status.

Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.

Key Features:
  • All-in-One Air System Control
    Integrated control of both fresh air ventilation and dehumidification systems, improving overall indoor comfort and air quality.

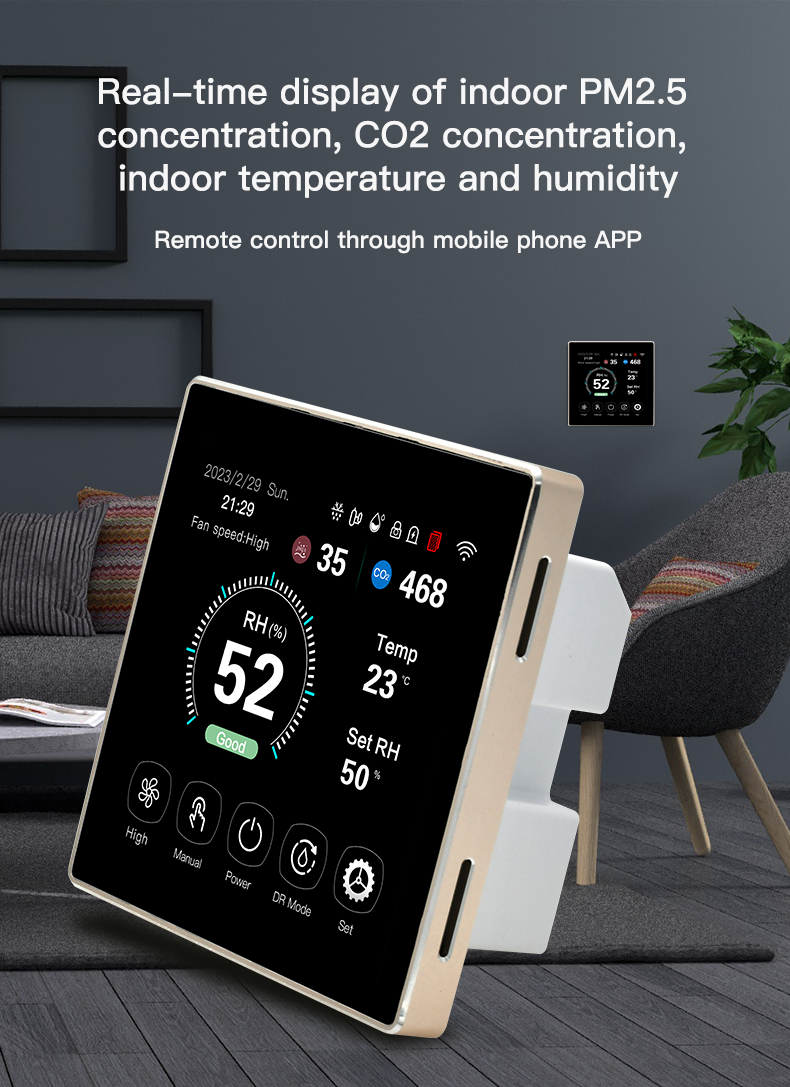

  • Real-Time Indoor Air Monitoring

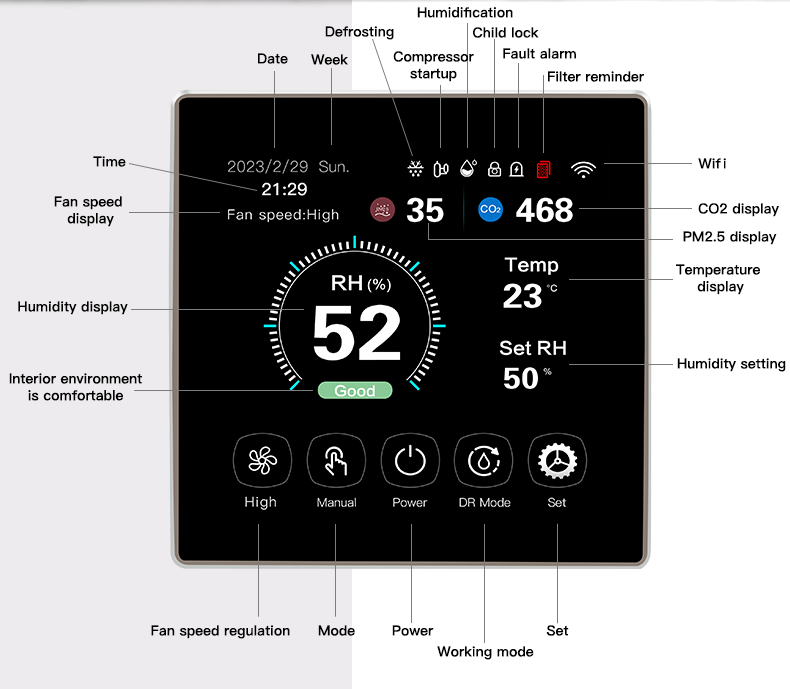

    Displays key environmental data including temperature, humidity, CO₂, and PM2.5 (optional) for comprehensive air quality awareness.
  • WiFi Smart Control (Optional)
    Supports remote monitoring and control via mobile app, enabling smart home integration.
  • RS485 ModBus Communication
    Equipped with ModBus RTU (RS485) interface for seamless integration with BMS (Building Management System) and smart home platforms.
  • Energy Recovery Ventilation (ERV) Compatible
  • Heat Recovery Ventilation (HRV) Compatible
Specifications:
* Dimension: 86 × 86 × 39 mm
* Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard)
* Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire
* Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz
* Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W
* Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W
* Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC
* Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃
* Life: ≥ 3 years
* PM2.5 display range: 1ug/m3——999ug/m3
* CO2 display range: 350ppm——2000ppm
Product Images:

Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management

Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management

  • Intelligent Smart HVAC Controller With Temperature Humidity CO2 Control System ManagementIntelligent Smart HVAC Controller With Temperature Humidity CO2 Control System Management
