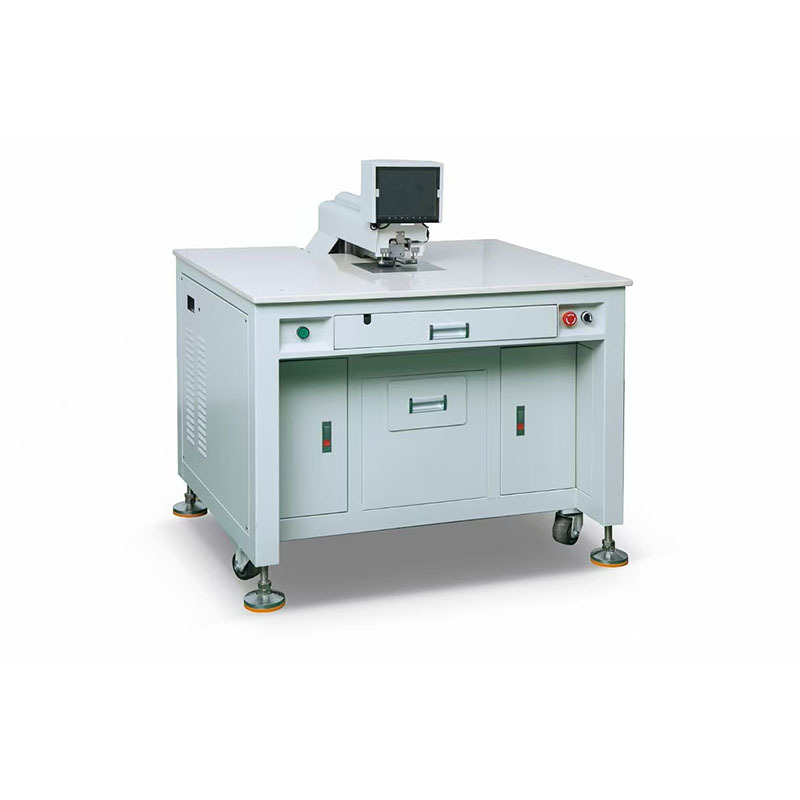

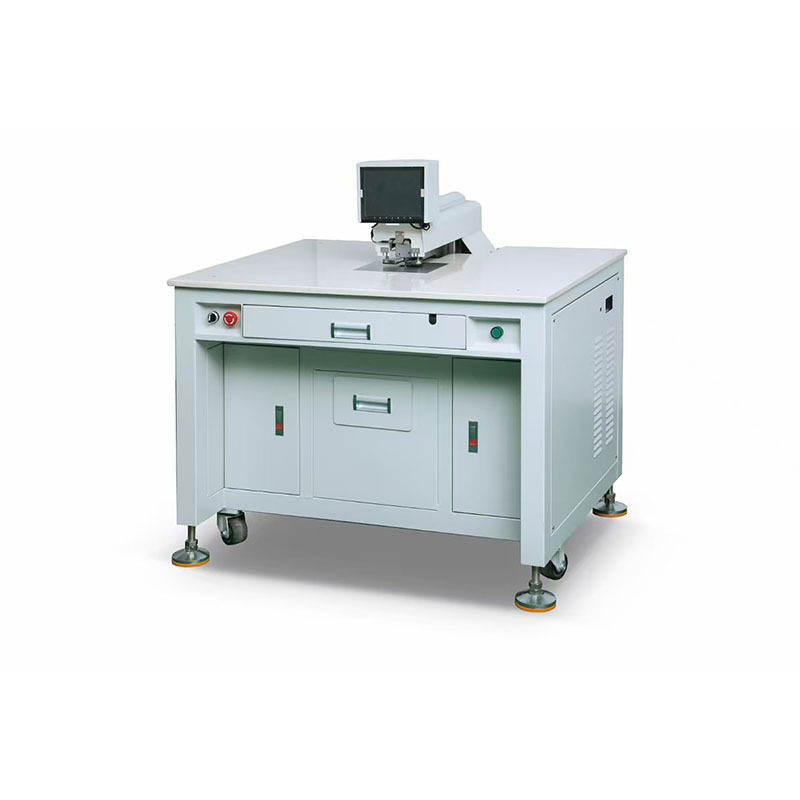

Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles

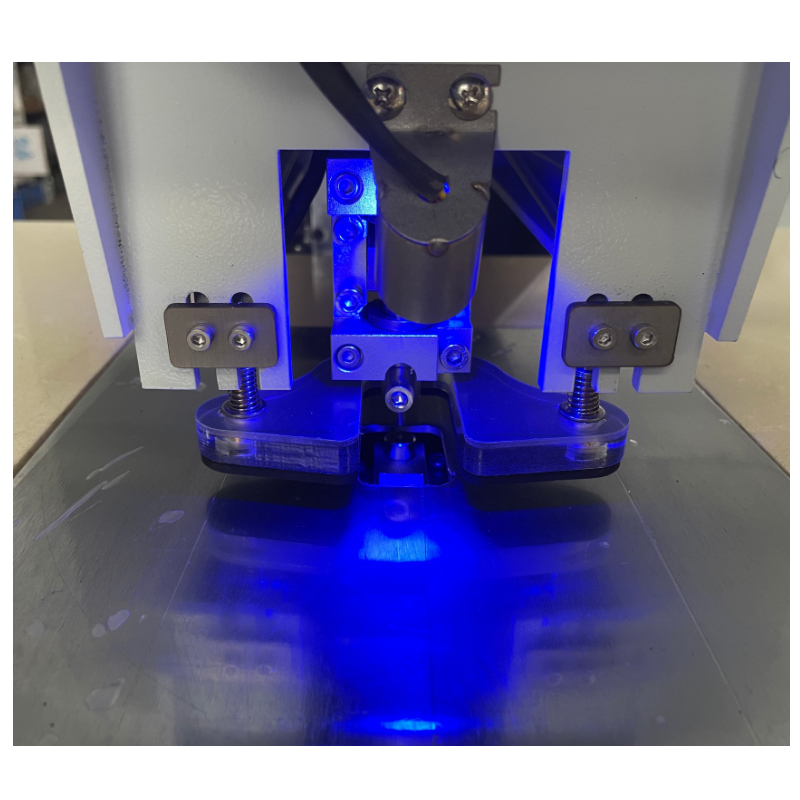

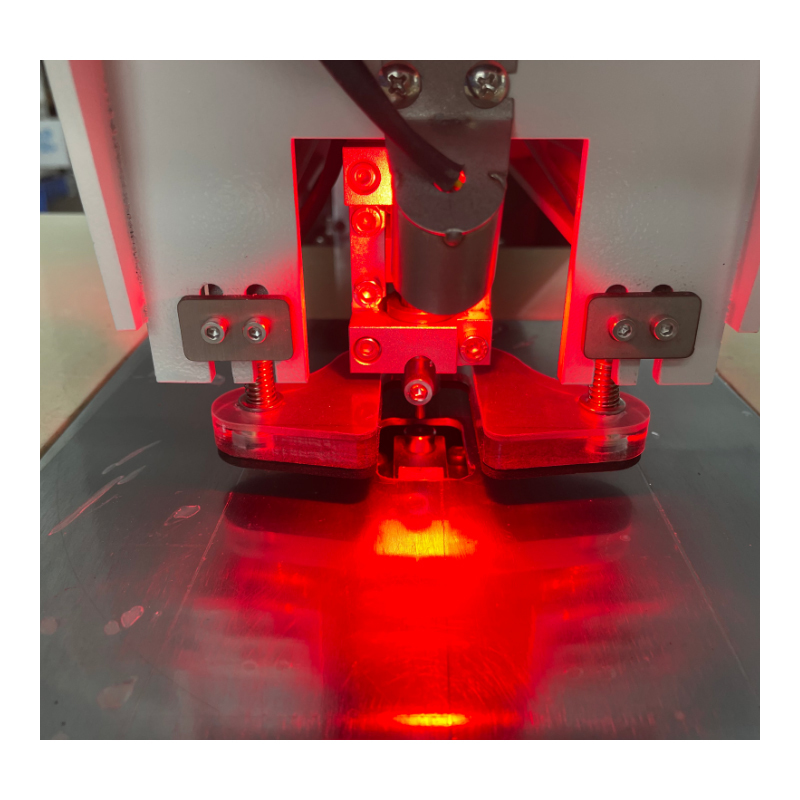

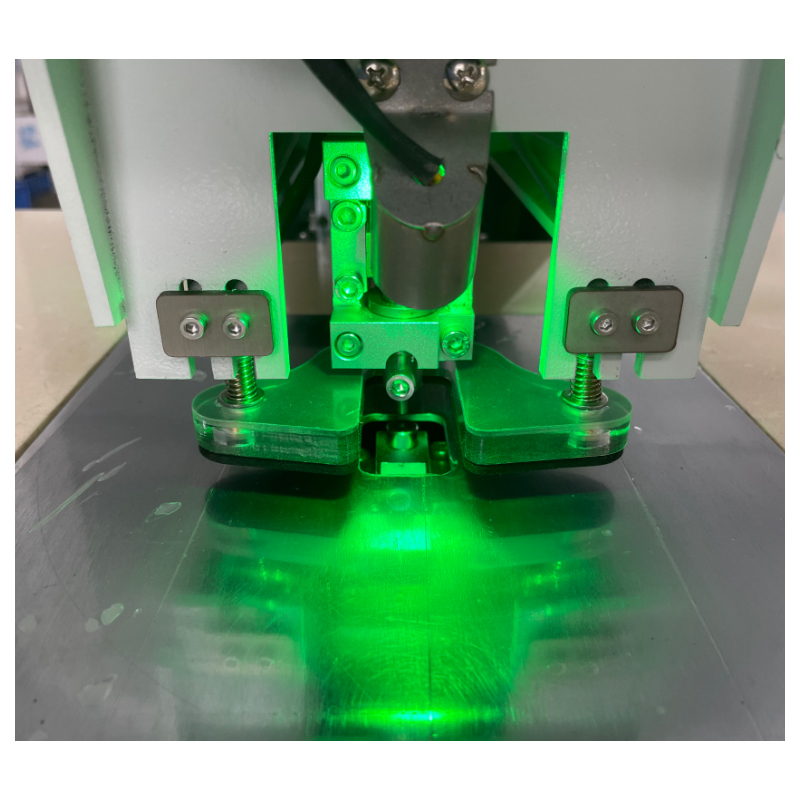

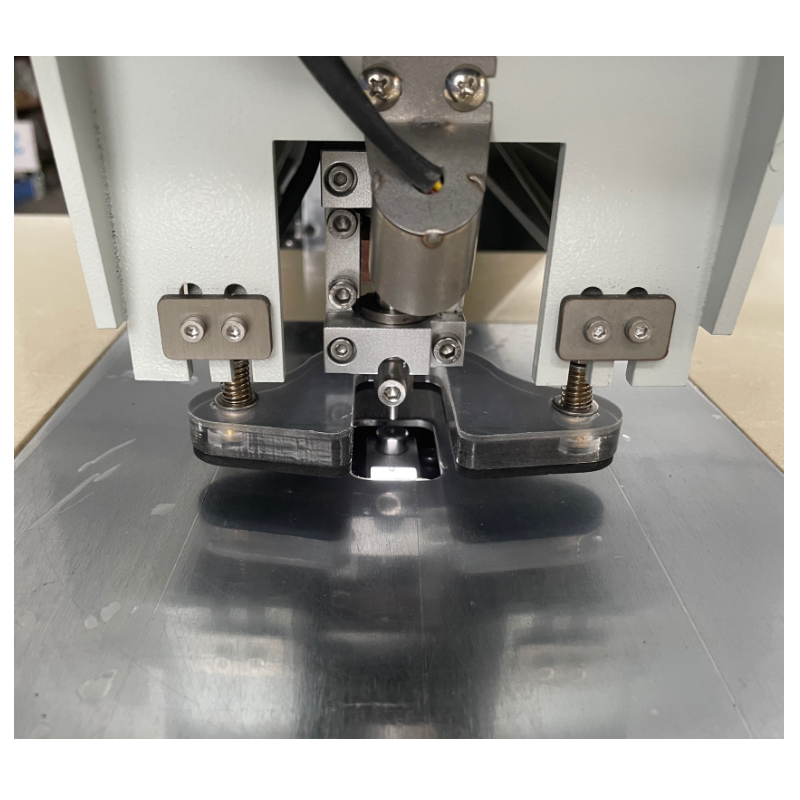

Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, anodized aluminum nameplate, nameplate label, stainless steel label, aluminum steel namplate, anodized industrial nameplate, steel aluminum cable tage, nickel nameplates, electroformed nameplates, and other
materials.
Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label
Machine Features

  • Interactive Windows XP Interface – Streamlines setup and operation.

  • Spacious Stage – Allows substrates to be adjusted and rotated with ease.

  • Rapid Hole Recognition & Punching – Less than one second per cycle.

  • Stable Transmission System – Micro-step motors maintain consistent accuracy.

  • Enhanced Illumination – Top and bottom lights improve recognition for all substrate types.

  • Fully Automated Touch Operation – No foot pedal required for faster workflow.

  • Flexible Tooling – Die sizes can be switched to handle different hole requirements.

  • Reusable Sampling Plans – Quickly recall previous setups for repeated jobs.

  • Software Upgrades Available – Keeps the system current with latest improvements.

  • Quality-Imported Components – Cylinders, valves, and rails guarantee long-term reliability.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label Semi-auto CCD Registration Hole Punching Machine For Aluminum Steel Label

Main Configuration
Item
Brand
Origin
Guide rail / Slider
HIWIN
Taiwan
Lead screw
HIWIN
Taiwan
Coupling
Miki pulley
 Japan
Photoelectric switch
Omron
 Japan
Bearing
NSK
Japan
CCD Camera
Sony
Japan
Lens
Sony
Japan
Mainboard/software system
SLT
SLT
Cylinder/Solenoid valve
SHAKO
 Taiwan
