Specifications
Brand Name :
SILITRON
Model Number :
SLT15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L1360 x W880 x H1350 mm
Precision :
±0.015mm
Speed :
0.35s/hole
Substrate thickness :
0.01-1mm(base on material)
Material of punch die :
SKD11/61 quenched
Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.
Punching Samples

Semi-auto CCD Hole Punching Machine For Medical labels/Automotive Panel

Machine Features

  • Spacious Working Table – Marble table supports large sheets and multiple substrates simultaneously.

  • Automatic CCD Positioning – Quickly recognizes targets and aligns materials for punching.

  • Ultra-Fast Punching – 0.35 seconds per hole, 7–8× faster than manual punching, ideal for high-volume production.

  • Precision Guaranteed – Overall error ≤ 0.02 mm ensures consistent results for intricate designs.

  • Smart Illumination – Up-light and down-light systems ensure accurate target recognition.

  • Touchscreen Control – Intuitive interface simplifies operations and allows real-time monitoring.

  • Flattening Mechanism – Ensures substrates remain flat during punching for maximum precision.

  • Customizable Software – Sampling plans can be saved and reused for repeated jobs.

  • Reliable Components – High-quality imported parts guarantee long-term durability and stability.

Technical Parameter
Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N
Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Hole diameter Φ1－Φ5mm(customizable)
Light source white and colors

Workable Marks

Semi-auto CCD Hole Punching Machine For Medical labels/Automotive Panel Semi-auto CCD Hole Punching Machine For Medical labels/Automotive Panel

Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

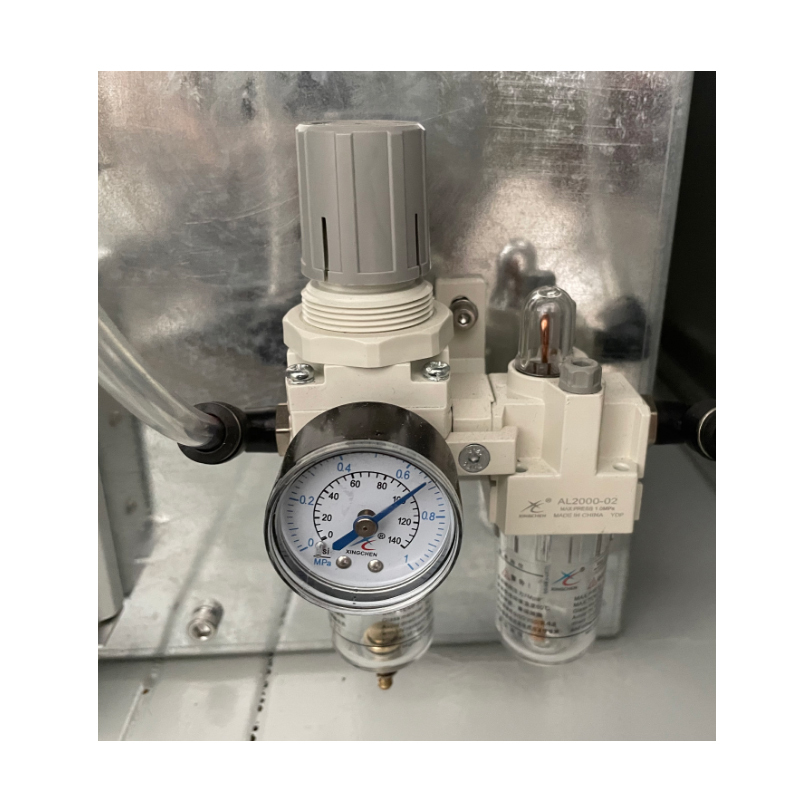

  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
