Specifications
Brand Name :
SILITRON
Model Number :
SLT15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L1360 x W880 x H1350 mm
Precision :
±0.015mm
Speed :
0.35s/hole
Substrate thickness :
0.01-1mm(base on material)
Material of punch die :
SKD11/61 quenched
Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.
Punching Samples

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Machine Features

  • Wide Working Area – Large marble table handles sheets of all sizes effortlessly.

  • CCD Vision Alignment – Automatically positions designs for consistent, high-precision punching.

  • Micron-Level Accuracy – Overall error kept under 0.02 mm for detailed icons.

  • High-Speed Punching – Each hole completed in 0.35 seconds, 7–8× faster than manual punching.

  • Safe for Sensitive Materials – Aluminum and other thin sheets are punched without damage.

  • Touchscreen Operation – Simple interface allows easy workflow setup and monitoring.

  • Automatic Pattern Recognition – Special lighting detects circular and patterned designs for accurate punching.

  • Live Process Monitoring – Observe the punching in real time via the 8-inch computer display.

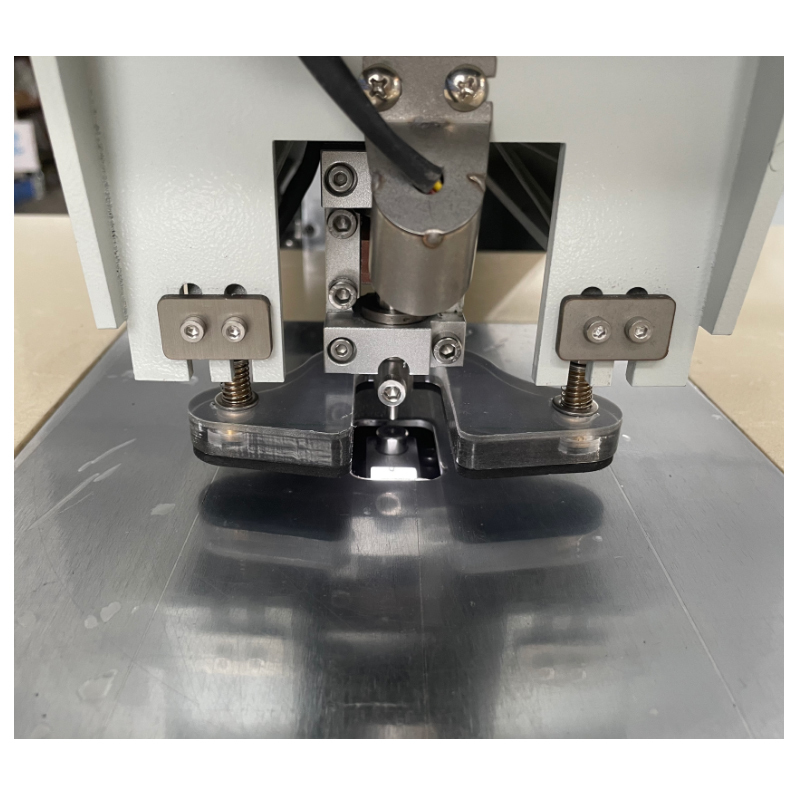

  • Punching Precision Support – Stamper flattens material to ensure perfectly aligned holes.

  • Software & Technical Support – Upgradeable software and expert assistance ensure the machine stays at peak performance.

  • Advanced Image Processing – Binary integration improves CCD recognition and punching alignment.

Technical Parameter

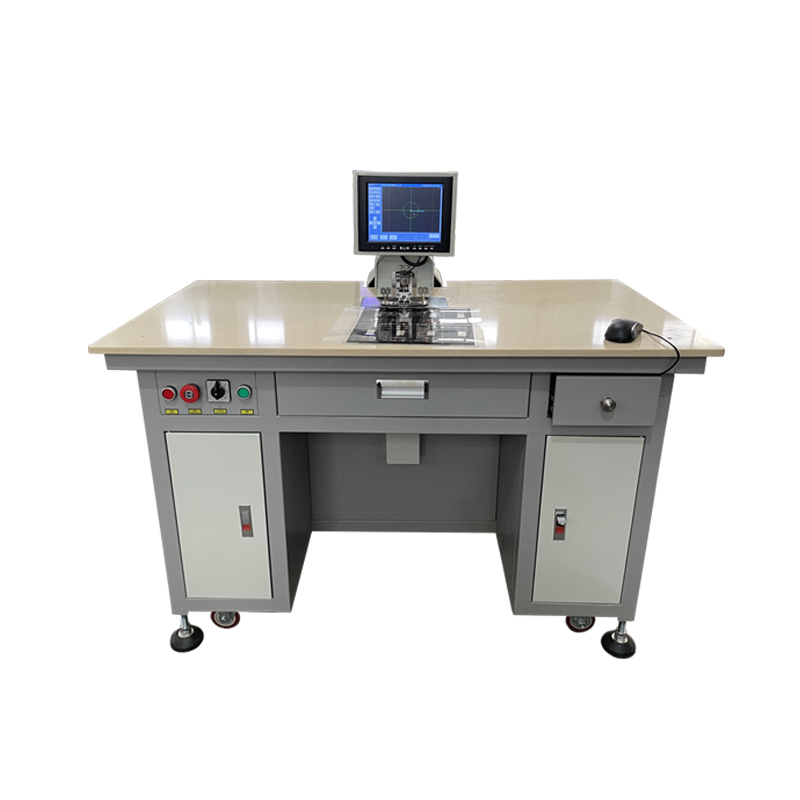

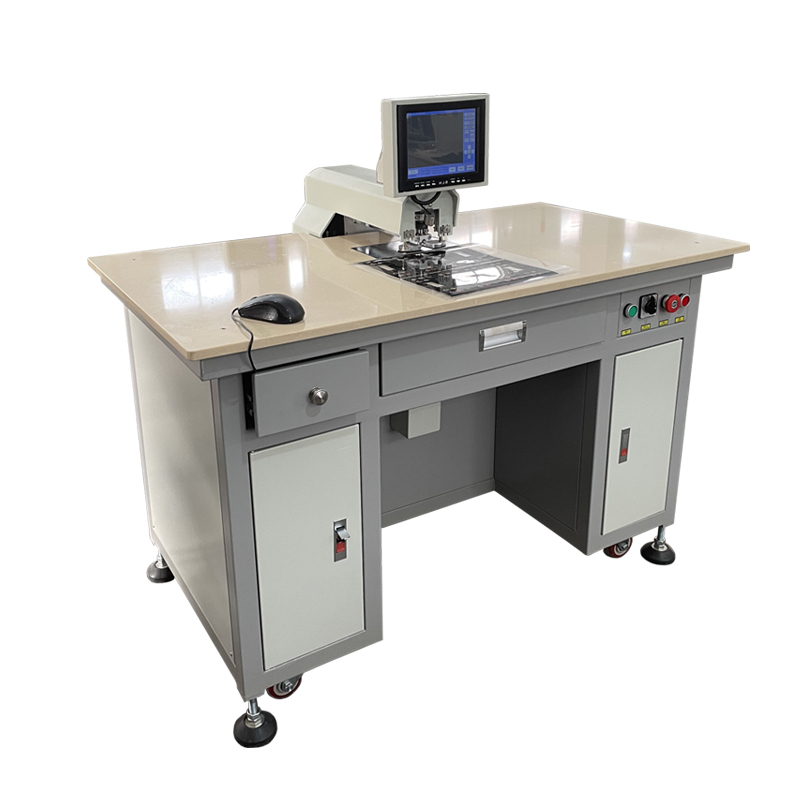

Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N

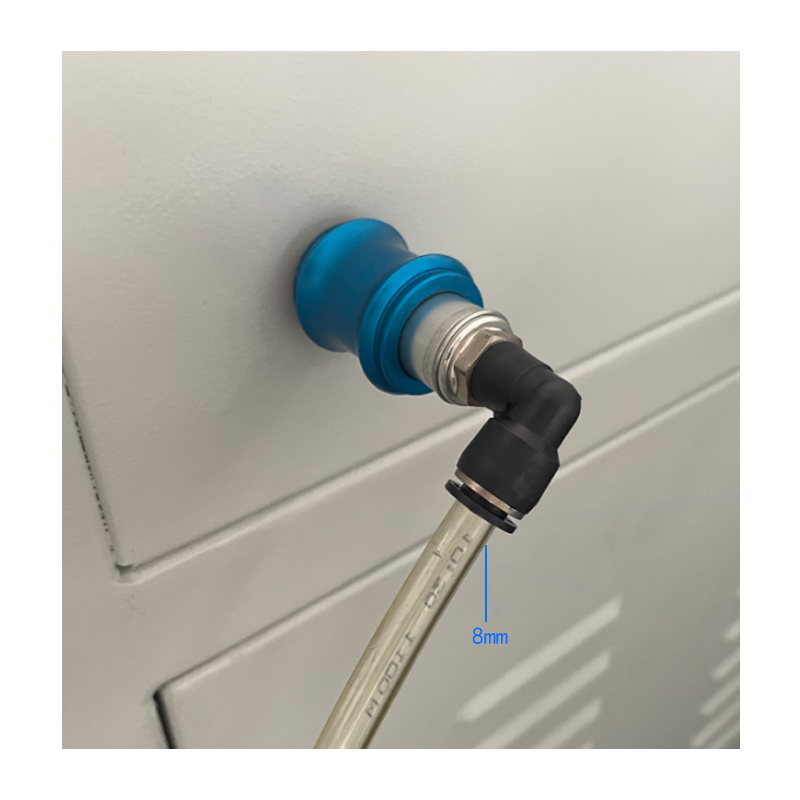

Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Hole diameter Φ1－Φ5mm(customizable)
Light source white and colors

Workable Marks

Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates Semi-auto CCD Target Hole Punching Machine PET/PC/PVC/IML/IMD Nameplates

Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

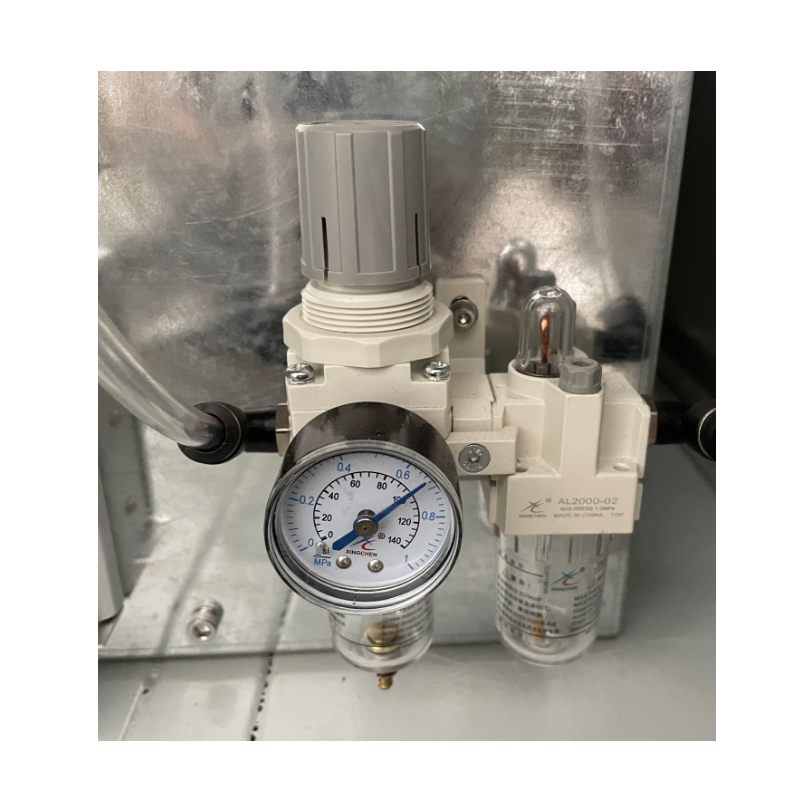

  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
