The M12 4-Pin Circular Connector with A-Coding is a compact, robust, and industry-standard solution for signal and low-power connections in automation and control systems. Featuring screw contacts and brass contact pins, this connector supports reliable transmission up to 250V and is suitable for harsh industrial environments. Designed in accordance with IEC 61076-2-101, it ensures seamless compatibility with other M12 devices.

Features:

• Connector Type: M12 Circular Connector
• Pin Configuration: 4-Pin (A-Coded)
• Coding: A-Code – typically used for sensors, actuators, and data signals
• Contact Termination: Screw contact (field-wireable, tool-based termination)
• Contact Material: Brass with gold or nickel plating for improved conductivity and corrosion resistance
• Rated Voltage: 250V AC/DC
• Rated Current: Up to 4A
• Ingress Protection: IP67 or higher (when mated)
• Shell Material: Nickel-plated brass or PA66 (model-dependent)
• Mounting Style: Cable mount, panel mount, or field-wireable options available
• Operating Temperature: -25°C to +85°C
• Standard Compliance: IEC 61076-2-101

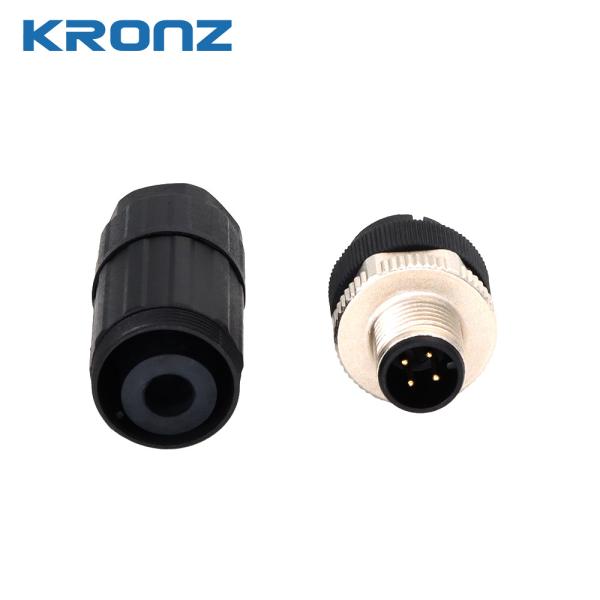

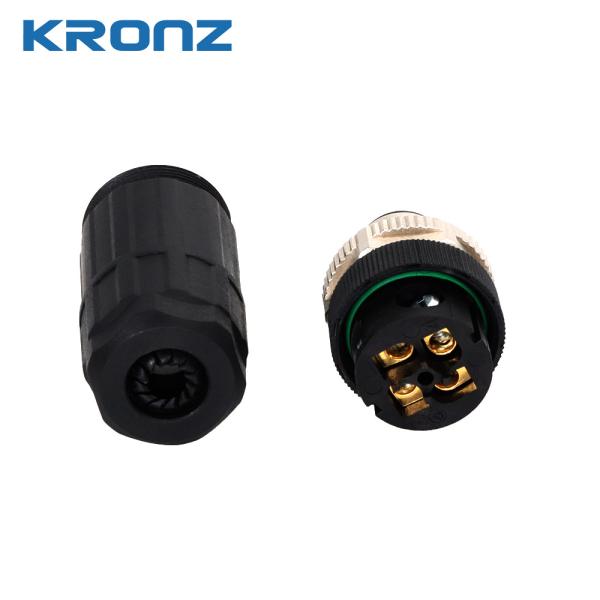

Product Images

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for KRONZ M12 Connector:

The KRONZ M12 Connector is a versatile and reliable component suitable for a wide range of applications across various industries. With its high-quality features and durable construction, the M12 Connector is ideal for the following product application occasions and scenarios:

Industrial Automation: The M12 3 pin Connector is commonly used in industrial automation systems for connecting sensors, actuators, and other devices. Its secure connection and robust housing material make it suitable for harsh industrial environments.

Factory Machinery: In factory machinery settings, the M12 Connector ensures reliable signal transmission between different components of the machinery. The M12 Angled Cable Connector variant provides flexibility in tight spaces, making it ideal for complex machinery setups.

Process Control Systems: The KRONZ M12 Connector is well-suited for process control systems where precision and stability are crucial. Its seal material, NBR, ensures protection against environmental factors, making it suitable for use in challenging conditions.

Robotics: For robotics applications, the M12 Connector plays a vital role in establishing connections between various robotic components. Its male gender design and coding options provide compatibility and ease of integration within robotic systems.

Renewable Energy: The M12 Connector is also utilized in renewable energy systems such as solar panels and wind turbines. Its wide ambient temperature range of -25~+85℃ ensures reliable performance in diverse environmental conditions.

With the KRONZ M12 Connector originating from Guangdong, China, and holding the CE certification, customers can trust in its quality and reliability. The minimum order quantity of 5 units, negotiable pricing, and flexible payment terms (T/T, Western Union, MoneyGram) cater to varying customer needs. Each piece is packaged securely in polybag packing for protection during transit, with a quick delivery time of 5-8 working days.

Furthermore, with a supply ability of 100,000 pieces per month, customers can rely on the KRONZ M12 Connector to meet their demands consistently. Whether in industrial automation, factory machinery, process control systems, robotics, or renewable energy applications, the M12 Connector stands out as a dependable and efficient solution.

Company Profile

Support and Services:

The M12 Connector product offers comprehensive Product Technical Support and Services to assist customers with any inquiries or issues they may have. Our dedicated team of experts is available to provide guidance on installation, troubleshooting, and product specifications. Additionally, we offer repair and maintenance services to ensure that your M12 Connector product performs optimally throughout its lifespan.

Packing and Shipping:

Product Packaging for M12 Connector:

- The M12 connectors are securely packed in a sturdy cardboard box to prevent damage during shipping.

- Each connector is individually wrapped in bubble wrap to ensure protection during transit.

Shipping Information:

- Orders are typically processed within 1-2 business days.

- Shipping options include standard ground shipping or expedited shipping for faster delivery.

- Tracking information will be provided once the order has been shipped.
