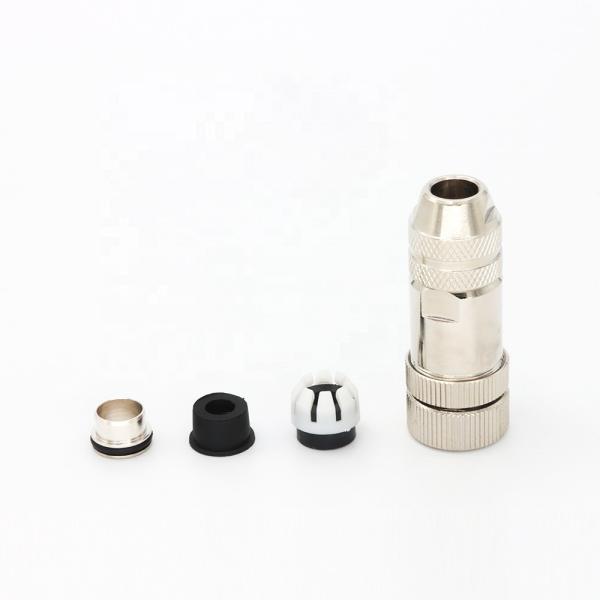

IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector
IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector
IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector
IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector
Specifications
Model Number :
H1208FV-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :
M12 Female Field-wirable Assembly Connector
Color :
Siliver
Material :
Brass,gold-plated
IP rate :
IP67
Endurance(shell) :
>100 cycles
Contact Resistance :
≤ 5mΩ
Ambient Temperature :
-25~+85℃
Connection Method :
Screw Connection
Description

M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector


Product Description


In transportation systems, such as trains and buses, M12 connectors are used for control and communication systems. Their ability to withstand harsh conditions and ensure reliable performance is crucial in these applications.An M12 Metal Field-Wireable Connector - 8-Pin A-Coded Straight is a rugged, industrial-grade circular connector designed for reliable signal/power transmission in harsh environments.

IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector

IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector

IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector

Technical Data


Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickle-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
IEC 61076-2-101 Female M12 Connectors 8 Pin Metal Field Wirable Connector Screw connection A 2A 30V Straight 4-8mm H1208FV-0
