IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact
IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact
IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact
IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact
Specifications
Model Number :
H1204MAV-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M12 Metal Connector
Type :
Field-assembled Connector
IP rate :
IP67
Connection method :
Screw connection
Coding :
A
Rated current :
4A
Ambient temperature :
-25~+85℃
Cable outlet :
Straight
Pin :
4
Description

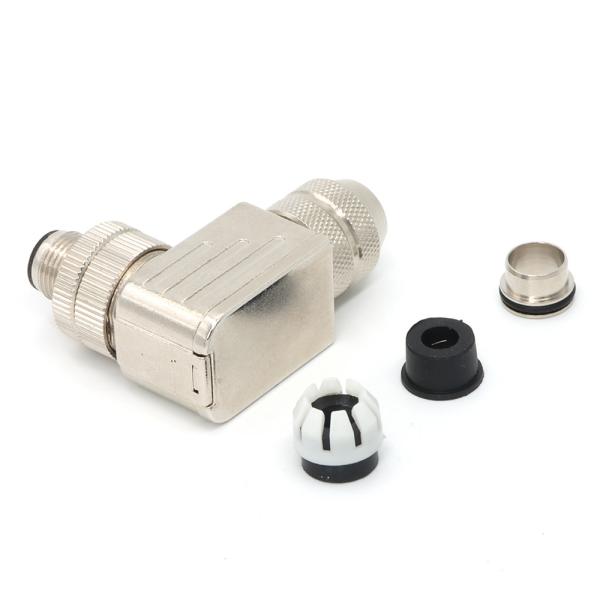

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact


Product Description

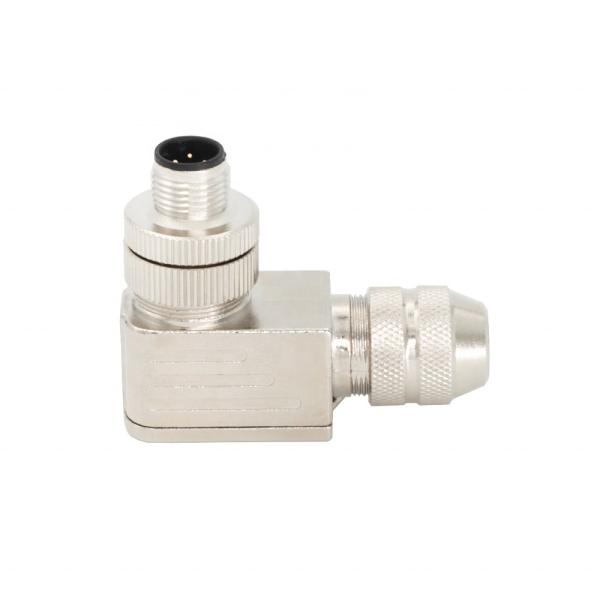

M12 Angled Circular Connector - 4-Pin Male, Full Metal

This M12 4-pin male connector features a 90° angled design with full metal housing, providing superior durability in harsh industrial environments. The rugged metal construction ensures high resistance to vibration, impact, and corrosion, while the IP67/IP68-rated sealing protects against dust and moisture..

IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact

IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact

IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact

Technical Data


Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickle-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
IP67 Circular M12 Connectors Angled 4 Pin Male Full Metal Field Assembled Contact Screw connection A 4A 250V Angled 4-8mm H1204MAV-0
