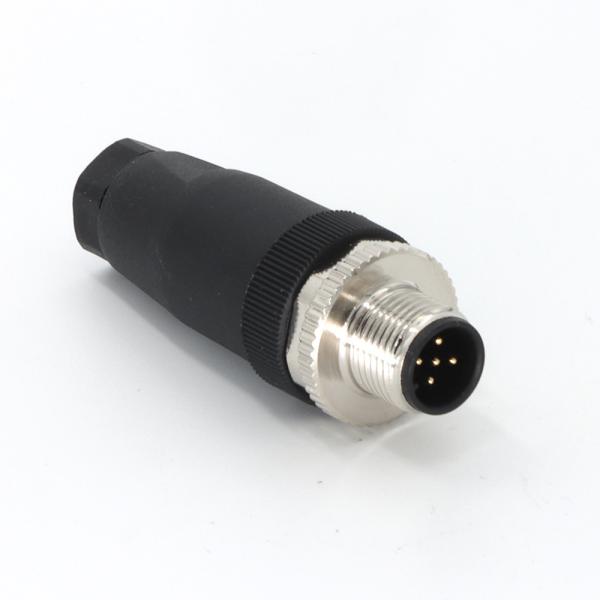

Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67
Specifications
Model Number :
H1208M-7/H1208M-9
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M12 Field Wirable Assembly Connector
Color :
Black
IP rate :
IP67
Endurance(shell) :
>100 cycles
Insulation Resistance :
≥ 100MΩ
Contact resistance :
≤ 5mΩ
Ambient temperature :
-25~+85℃
Connector type :
Screw Locking
Description

M12 Connector Field-wireable Assembly Connector 8 Pin A Code Male


Product Description

M12 Straight Field-Wireable Connector

An M12 straight field-wireable connector is a circular industrial connector designed for on-site cable termination, featuring a 12mm threaded locking mechanism and in-line (0°) cable exit.

Key Features:

  • Field-Wireable – Supports screw, spring-cage, or IDC termination for flexible installation.

  • Straight Cable Routing – Ideal for control panels and open enclosures where space allows linear connections.

  • Robust Design – IP67/IP68-rated for dust/water resistance in harsh environments.

  • Coding Options – A (sensors), B (PROFIBUS), or D (Ethernet) for proper signal matching.

  • Material – Typically PBT plastic or metal (nickel-plated brass) for durability.

Applications:

✔ Sensor/actuator connections
✔ Factory automation & PLC systems
✔ Industrial Ethernet (Cat5e with D-coding)

Compared to angled versions, it requires more linear space but offers simpler cable management in unrestricted setups.

Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67


Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

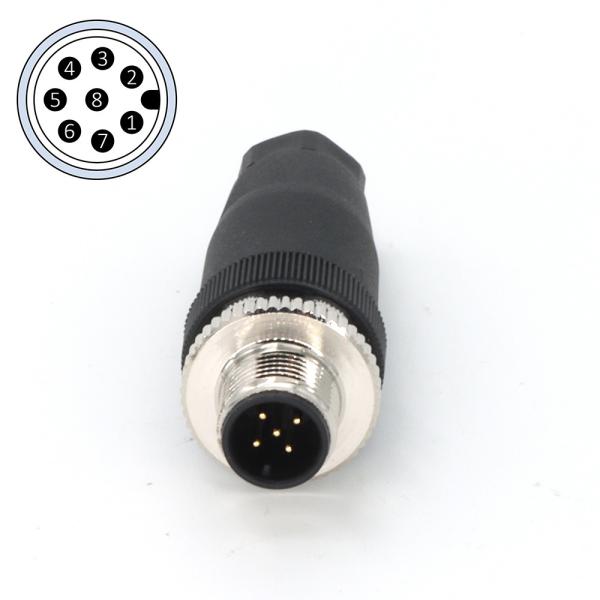

Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 Screw connection A 1.5A 30V Straight 4-6mm(PG7) H1208F-7
6-8mm(PG9) H1208F-9
