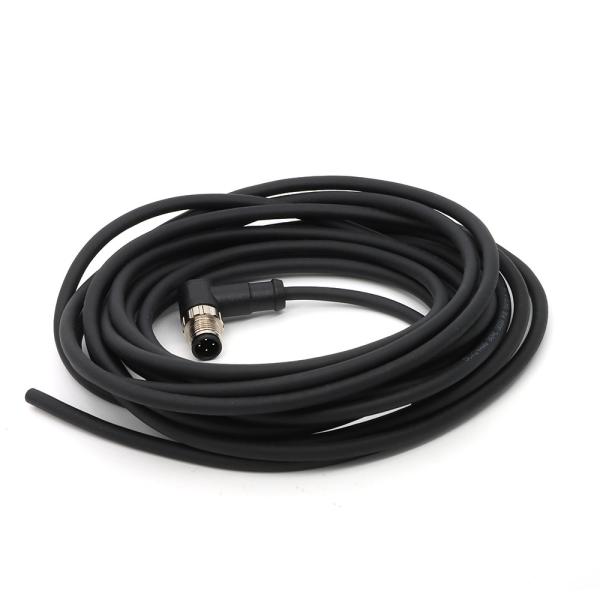

IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector
IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector
IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector
IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector
Specifications
Brand Name :
KRONZ
Model Number :
M1208MA-2/P00R
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M12 Connectors with molded cable
IP rate :
IP67
Standard :
IEC 61076-2-101
Ambient temperature :
-25~+85℃
Pollution degree :
3
Mating cycles :
>100
Description

M12 Pre-assembled Cable Male Angled Aviation Plug Sensing Connector PIN8


Product Description

5 reasons to choose us: We have well-equipped production and processing equipment for wire harness components and connectors, as well as design and development technology
1. Beautiful appearance and reasonable structure
2. Ensure safety through various tests
3. Time and effort saving, high work efficiency
4. Easy to use and reliable operation
5. Not easy to age, long service life

IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector


Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
IP67 M12 8 Pin Connector Male Angled 8 Pin Aviation Plug Connector 1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD		 A 2A 30V 8×0.25
(8×24AWG)
PVC, black		 Angled 2M M1208MA-2/P00R
5M M1208MA-5/P00R
10M M1208MA-10/P00R
