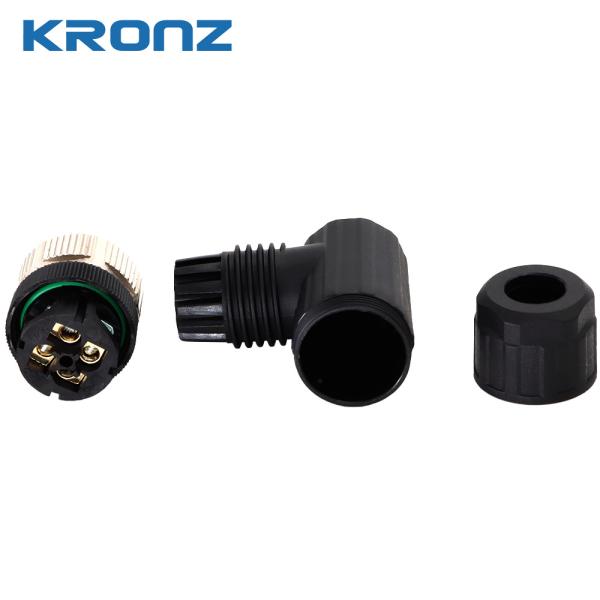

Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
Specifications
Brand Name :
KRONZ
Model Number :
H1205FA-9/L
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
5
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Contact nut material :
Brass, Alloy
Ambient temperature :
-25~+85℃
Contact carrier material :
ABS, PA, Black
Housing material :
TPU, Black
Seal material :
NBR
Standard :
IEC 61076-2-101
Clamp matrix material :
ABS, PBT/PA, Black
Coding :
A
Description

Product Description:

The M12 Connector is a versatile and reliable solution for industrial and automation applications, designed to provide secure and efficient connections in demanding environments. With an ambient temperature range of -25~+85℃, this connector ensures reliable performance even in extreme conditions.

What is an M12 Field-Wireable angled Connector?

An M12 field-wireable angled connector is a circular industrial connector with a 12mm threaded locking mechanism and a 90° (or 45°) cable exit, designed for on-site wiring in tight spaces. It allows direct cable termination (screw, spring, or IDC) without pre-molded ends.

Features:

  • Product Name: M12 Connector
  • Degree of protection: IP67
  • Contact resistance: ≤5mΩ
  • Standard: IEC 61076-2-101
  • Housing material: TPU, Black
  • Pin: 5
Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw ConnectionField Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw ConnectionField Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection

Technical Parameters:

Cable outlet Angle
Standard IEC 61076-2-101
Mating cycles >100
Pollution degree 3
Contact resistance ≤5mΩ
Housing material TPU, Black
Connect Screw Connection
Gender Female
Pin 5
Seal material NBR

Applications:

KRONZ M12 Sensor Connector is a versatile product suitable for a wide range of application occasions and scenarios. With its durable housing material made of TPU in Black color, this M12 Connector is designed to withstand various environmental conditions, making it ideal for both indoor and outdoor use.

Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw ConnectionField Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection

Field Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw ConnectionField Wireable Circular M12 A Coded Connector Angle Cable Outlet Screw Connection
