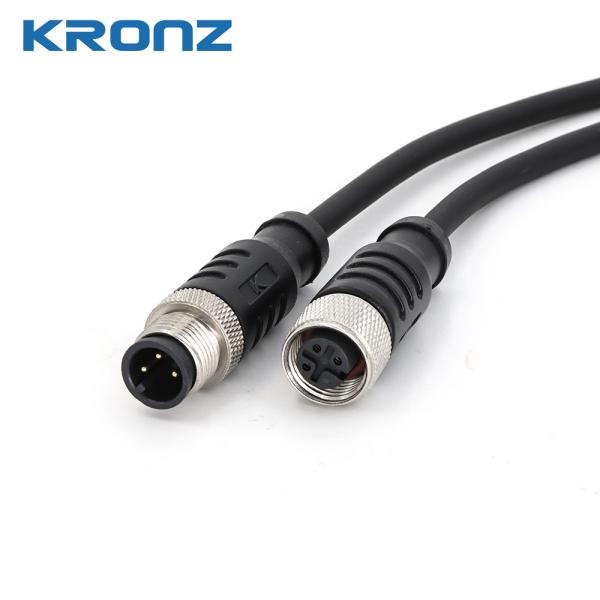

M12 Connector Straight Cable Outlet M12 Male Connector with PVC Pre-molded Cable

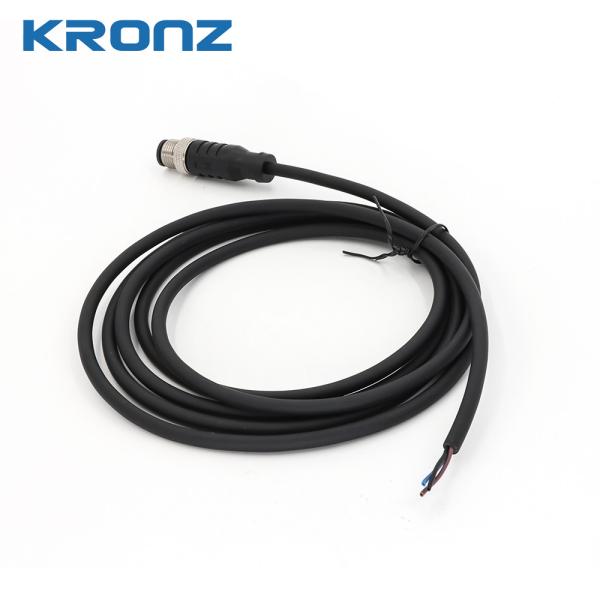

The M12 Connector features a cable length of 10 meters, allowing for flexible installation options, and the wire color is designated as 1=BN, 3=BU, 4=BK. The wire gauge is 3x0.34 (3x22AWG) PVC, Black, which provides excellent conductivity and durability.

How does an M12 connector work?

The M12 connector operates through its circular design with a 12mm threaded coupling system, ensuring secure connections in industrial environments. Its key features include:

1. Threaded Locking Mechanism: The M12×1 thread provides vibration-resistant mating, crucial for machinery.

2. Environmental Protection: Rated IP67/IP68, it resists water, dust, and chemicals, ideal for washdown areas.

3. Electrical Contact: Pins (3–12 contacts) transmit power/signals, with coding (A/B/D) preventing mismating.

4. Fieldbus/Ethernet Support: D-coded variants enable industrial Ethernet (e.g., PROFINET) at up to 100 Mbps.

5. Durability: Materials like PBT plastic and brass withstand harsh conditions, with >100 mating cycles.

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 3=BU 4=BK	A	4A	250V	3×0.34 (3×22AWG) PVC, black	Straight	10M	M1203M-10/P00K

The M12 Connector product is suitable for various application occasions and scenarios. The M12 Male Connector is widely used in industrial automation, robotics, and manufacturing machinery. It provides a secure and reliable connection for data and power transmission. The M12 Cable Connector is used in situations where there is limited space to connect cables. It is mostly used in tight spaces and provides a secure and robust connection. The M12 male Connector is used to connect sensors and actuators in automation systems. It is also used in the food and beverage industry, where the connectors need to be corrosion-resistant and easy to clean.
