Specifications
Model Number :
SY85HSV22-TG
OD :
85mm
Rated Power :
628W
Rated Torque :
2.4Nm
Brand Name :
SENINTER
Rated Voltage :
48VDC
Place of Origin :
CHINA
ID :
66.8mm
Rated Speed :
2500RPM
Certification :
CE ROHS
Description
OD:85mm frameless motor
The 85mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 2500 RPM and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

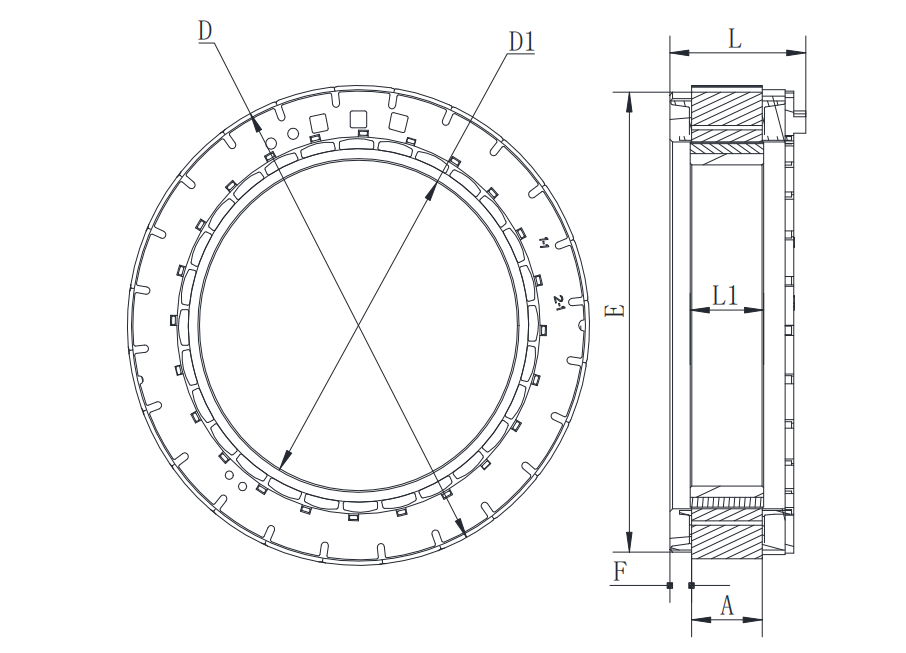

Dimensions

Item SY85HSV13-TG SY85HSV22-TG Tolerance
Stator outer diameter D 85 mm 85 mm h8
Stator length L 25 mm 34 mm Max
Rotor inner diameter D1 66.8 mm 66.8 mm H7
Rotor length L1 13.5 mm 22.5 mm ,+0.1/0
Potting surface outer diameter E 66.2 mm 66.2 mm Max
Potting surface height F 4 mm 4 mm Max

85mm Frameless Motor 628W |10.8 Nm | 4300 rpm | 48 VDC



Electrical Specifications

Item Unit SY85HSV13‑TG SY85HSV22‑TG
Number of poles — 28 28
Number of phases — 3 3
Rated voltage VDC 48 55
Rated torque N.m 1.8 2.4
Rated current Arms 11 17.5
Rated speed RPM 2500 2500
Rated power W 471 628
Maximum speed RPM 3100 4300
Peak torque N.m 7 10.8
Peak current Arms 55 90
Line to line resistance ohms@20°C 0.18 0.06
Line to line inductance mH 0.24 0.1
Torque constant Nm/Arms 0.16 0.14
Back EMF Vrms/KRPM 10.9 9
Motor length mm 25 34
Weight g 323 487
Electrical time constant ms 1.36 1.59
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
85mm Frameless Motor 628W |10.8 Nm | 4300 rpm | 48 VDC

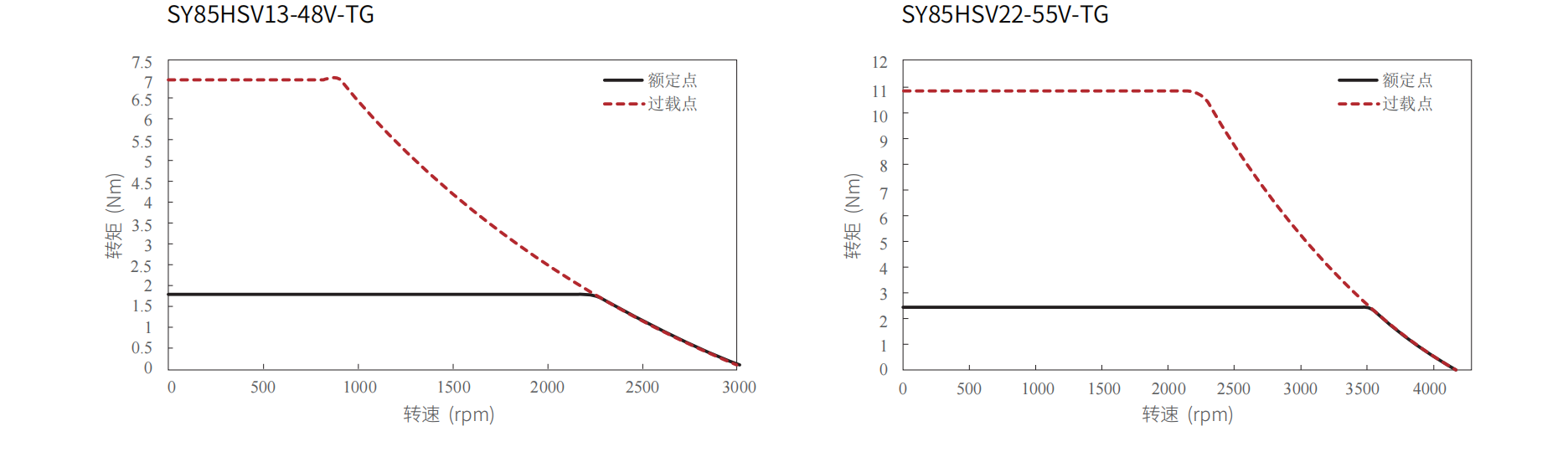

Torque Performance Curves
