130mm Frameless Motor 953W | 21.5Nm | 1800rpm | 48 VDC
130mm Frameless Motor 953W | 21.5Nm | 1800rpm | 48 VDC
Specifications
Model Number :
SY130HSV22‑48V
ID :
91mm
Rated Power :
953W
Voltage :
48VDC
Brand Name :
SENINTER
OD :
130mm
Certification :
CE ROHS
Rated Torque :
6.5Nm
Place of Origin :
CHINA
Rated Speed :
1400RPM
Description
OD:130mm frameless motor
The 130mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 1400 RPM and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you

130mm Frameless Motor 953W | 21.5Nm | 1800rpm | 48 VDC

Electrical Specifications

Item Unit SY130HSV22‑48V
Number of poles ‑ 20
Number of phases ‑ 3
Rated voltage VDC 48
Rated torque NVDC 48
Rated torque N.m 6.5
Rated current A 23
Rated speed RPM 1400
Rated power W 953
Maximum speed RPM 1800
Peak torque N.m 21.5
Peak current A 71
Line to line resistance ohms@20℃ 0.14
Line to line inductance mH 0.38
Torque constant Nm/A 0.31
Back EMF Vrms/KRPM 18.8
Motor length mm 49
Weight g 1200
Electrical time constant ms 2.71
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
130mm Frameless Motor 953W | 21.5Nm | 1800rpm | 48 VDC

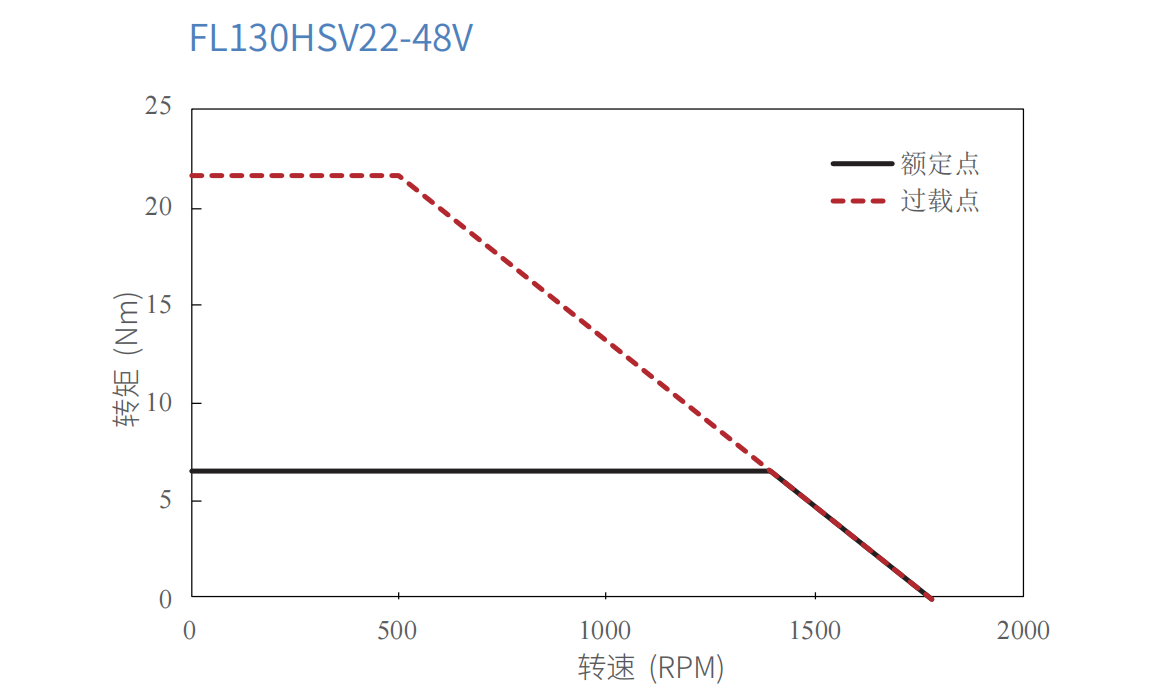

Torque Performance Curves

130mm Frameless Motor 953W | 21.5Nm | 1800rpm | 48 VDC
