Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis
Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis
Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis
Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis
Specifications
Brand Name :
SENINTER
Certification :
CE ROHS
Place of Origin :
CHINA
Description

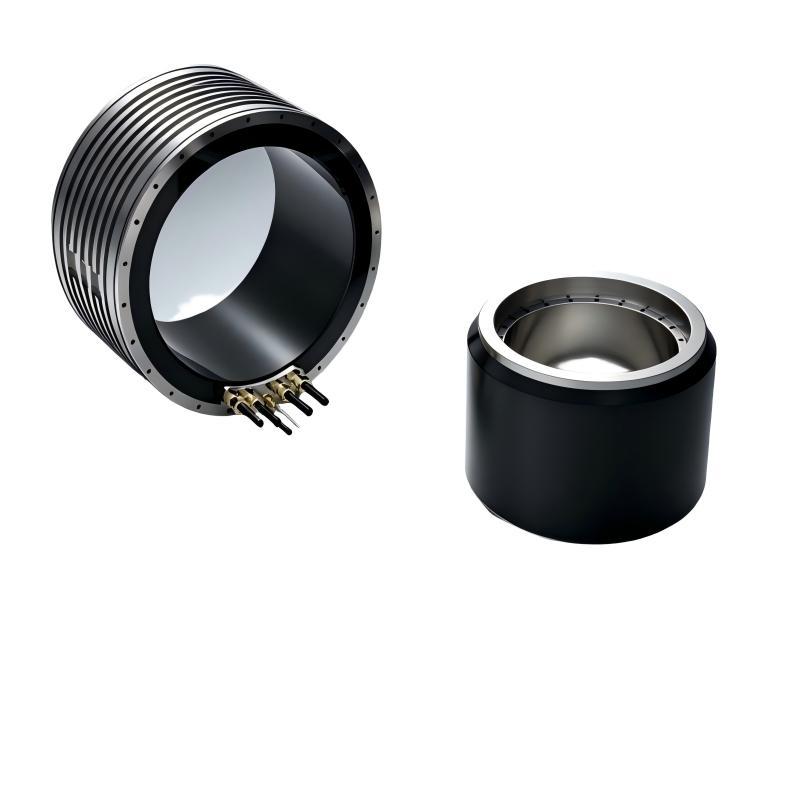

frameless direct drive torque motor

Widely used in machine tool turntables, industrial automation equipment, full-electric presses, etc

Key Features

  • Large hollow shaft design with compact structure

  • High torque density and high efficiency

  • Low moment of inertia for fast dynamic response

  • High reliability with excellent overall performance

  • Customization available to meet specific application requirements

Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis

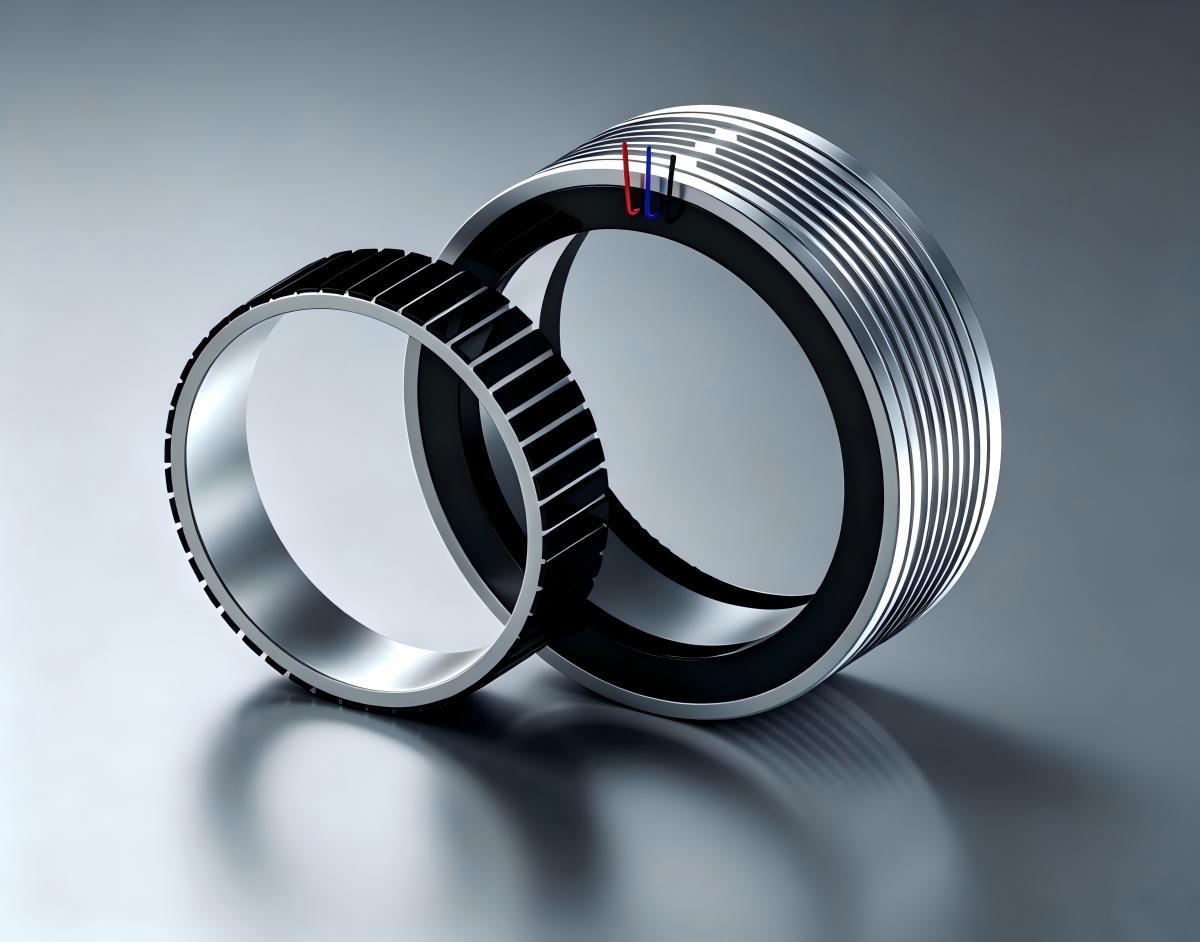

Frameless Torque Motor (Low Speed)
  • – Permanent magnet, rare earth material. Thermal Class H (180°C), water-cooled (20°C). Stator IP65 / Rotor IP00 (IP67 optional). Max torque: 31,200 Nm. Wide speed range, low-speed high-torque direct drive. Ideal for CNC rotary tables, aerospace, industrial robots.
Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis

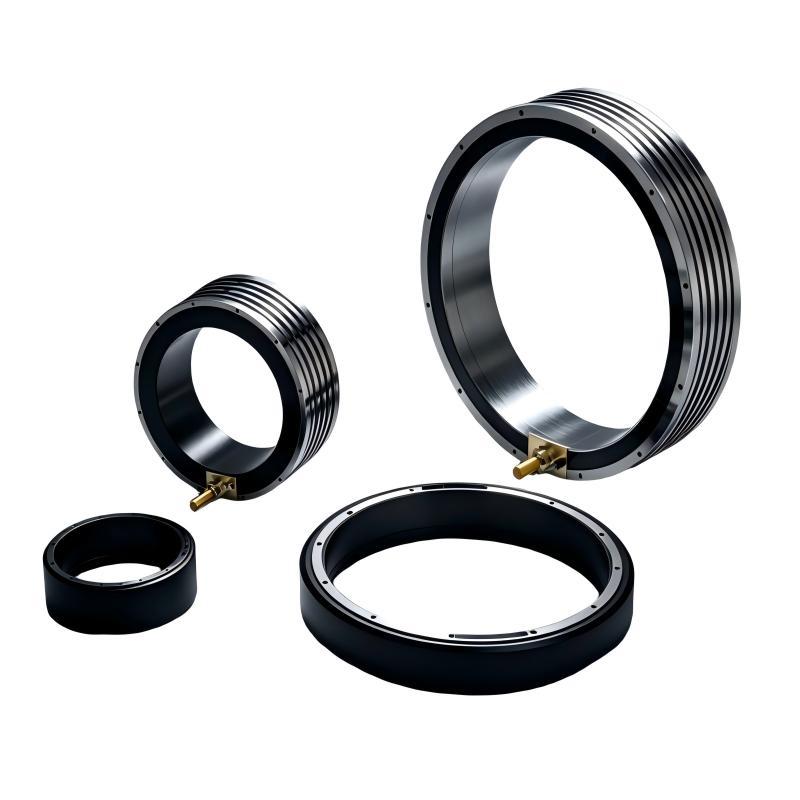

  • Frameless Torque Motor (High Speed)
  • – Permanent magnet, rare earth material. Thermal Class H (180°C), water-cooled (20°C). Stator IP65 / Rotor IP00 (IP67 optional). Max torque: 19,890 Nm. Field-weakening speed control enables both high speed and high torque. With circular grating for full direct-drive high-precision control. Ideal for highprecision CNC machine tools, precision rotary tables.

Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis

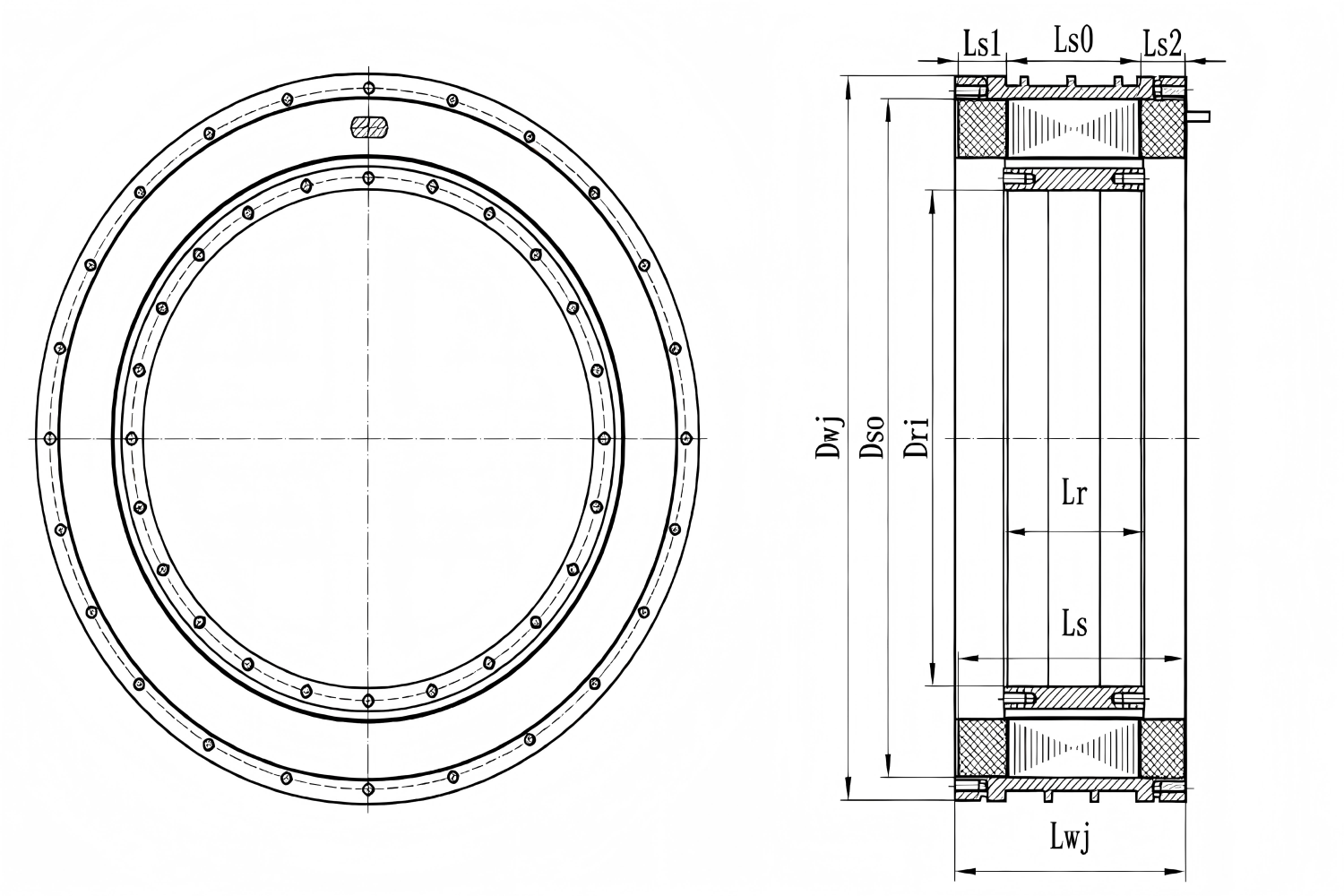

Dimensions:

Frameless Direct Drive Torque Motor | >1,000 rpm & Arc-Second Precision for CNC C-Axis

Frameless Torque Motor (Low Speed) – Specifications

Continuous Torque (Natural Cooling) N·m Continuous Torque (Water Cooling) N·m Stator Outer Diameter mm Total Length mm Model
8.6 19 160 70 SYML 0140□□-030
14 32 160 90 SYML 0140□□-050
19.5/19.7 45.2/45.7 160 110 SYML 0140□□-070
27.5/27.8 65/66 160 140 SYML 0140□□-100
41/41.5 98/98.5 160 190 SYML 0140□□-150
14.7/14.6 29.8/31.5 198 80 SYML 0175□□-030
24 / 24.1 49.6/53 198 100 SYML 0175□□-050
33.5/33.9 69.4/73.5 198 120 SYML 0175□□-070
47.3/47.6 99.2/105 198 150 SYML 0175□□-100
70.4/70.9 148.8/157.5 198 200 SYML 0175□□-150
25.8 66 230 70 SYML 0210□□-030
43 110 230 90 SYML 0210□□-050
60.2 155.3 230 110 SYML 0210□□-070
86 222/220 230 140 SYML 0210□□-100
129/125 332.7/320 230 190 SYML 0210□□-150
61.5 121.2/140 310 80 SYML 0291□□-030
100.5 202/234 310 100 SYML 0291□□-050
137.2/130 309.5/315 310 120 SYML 0291□□-070
185.6 386.6/468.3 310 150 SYML 0291□□-100
275 612.6/702.4 310 200 SYML 0291□□-150
101 207 385 90 SYML 0360□□-030
162/164 354/356 385 110 SYML 0360□□-050
222 498 385 130 SYML 0360□□-070
310/318 720/737 385 160 SYML 0360□□-100
400/410 940/955 385 210 SYML 0360□□-150
166 330 485 90 SYML 0450□□-030
277 550 485 110 SYML 0450□□-050
388 770 485 130 SYML 0450□□-070
541 1125 485 160 SYML 0450□□-100
743 1880 485 210 SYML 0450□□-150
243 483 565 90 SYML 0530□□-030
405 805 565 110 SYML 0530□□-050
570 1130 565 130 SYML 0530□□-070
790 1718 565 160 SYML 0530□□-100
1180 2576 565 210 SYML 0530□□-150
615 1160 795 110 SYML 0760□□-030
990 2000 795 130 SYML 0760□□-050
1340 2820 795 150 SYML 0760□□-070
1870 4090 795 180 SYML 0760□□-100
2830 6340 795 230 SYML 0760□□-150
1070 2050 1030 110 SYML 0990□□-030
1690 3510 1030 130 SYML 0990□□-050
2250/2200 4960/4820 1030 150 SYML 0990□□-070
3200/3100 7220/7020 1030 180 SYML 0990□□-100
4810/4610 10800/10400 1030 230 SYML 0990□□-150
1670/1620 3150/3070 1260 110 SYML 1220□□-030
2670/2760 5400/5550 1260 130 SYML 1220□□-050
3620 7600 1260 150 SYML 1220□□-070
5220/5040 11350/11050 1260 180 SYML 1220□□-100
7340 16560 1260 230 SYML 1220□□-150
*Note: stator water bushing and rotor bushing can be provided by customers. The relevant data anddrawings will be provided according to the customer's requirements. We suggest that our engineers carryout the motor selection for you.
