43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
Specifications
Model Number :
SY43HSV-48V
OD :
43mm
Rated Torque :
0.2Nm
Rated Power :
78W
Brand Name :
SENINTER
Rated Voltage :
48VDC
ID :
27.5mm
Certification :
CE ROHS
Rated Speed :
3700RPM
Place of Origin :
CHINA
Description
OD:43mm frameless motor
The 43mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 3700rpm and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.


Dimensions
Item Dimension (mm) Tolerance
Stator outer diameter D 43 h8
Stator length L 16.7 Max
Rotor inner diameter D1 27.5 H7
Rotor length L1 8.5 ,+0.1/0
Potting surface outer diameter E 41 Max
Potting surface height F 2.9 Max

43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC

Electrical Specifications

Item Unit SY43HSV08‑TG
Number of poles — 20
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 0.2
Rated current Arms 2.2
Rated speed RPM 3700
Rated power W 78
Maximum speed RPM 5600
Peak torque N.m 0.76
Peak current Arms 8.8
Line to line resistance ohms@20°C 1.51
Line to line inductance mH 0.67
Torque constant Nm/Arms 0.09
Back EMF Vrms/KRPM 6
Motor length mm 16.7
Weight g 58
Electrical time constant ms 0.44
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC

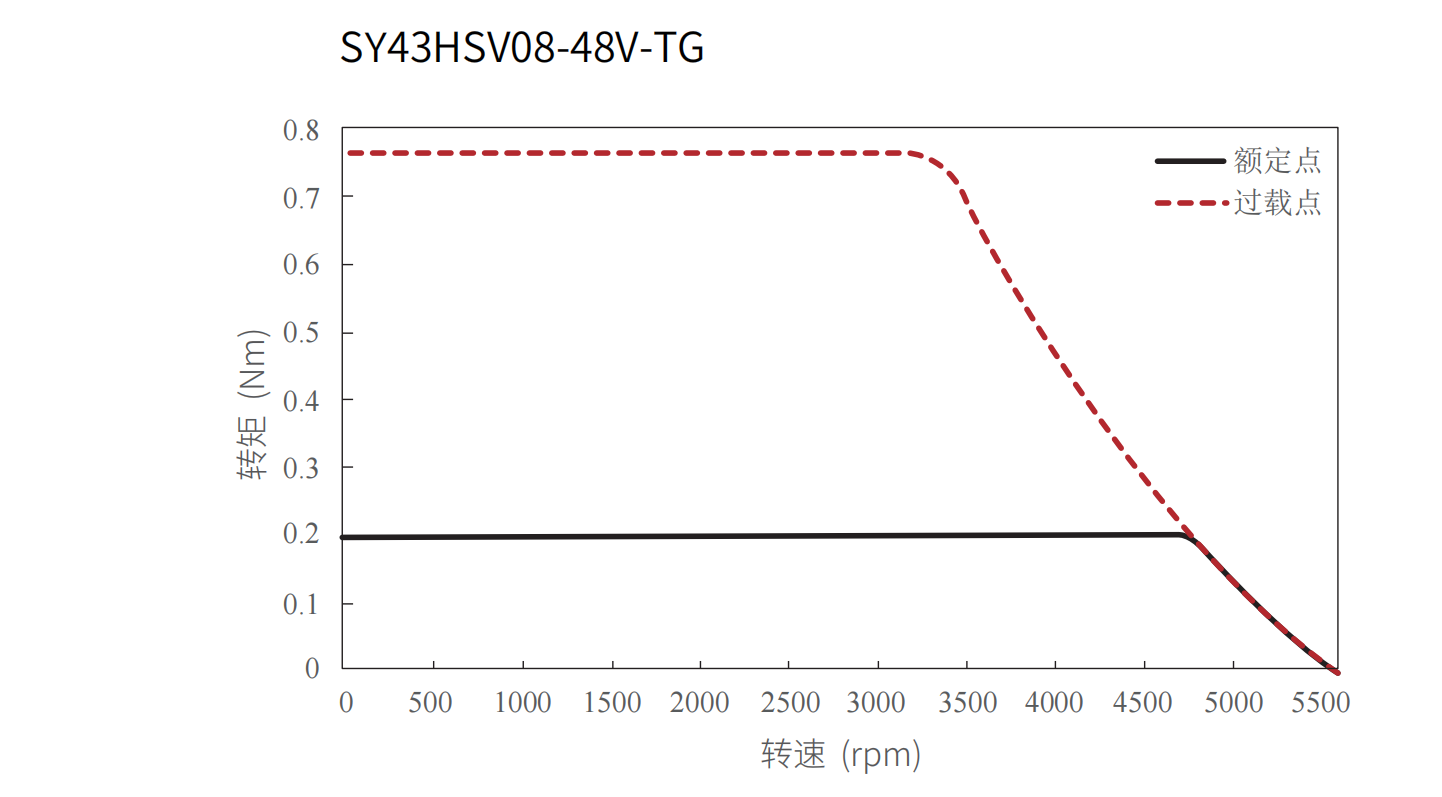

Torque Performance Curves

43mm Frameless Motor 78W | 0.76 Nm | 5600 rpm | 48VDC
