135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
Specifications
Model Number :
FL135BLW20-48V
OD :
135mm
Rated Power :
1760W
Rated Torque :
8Nm
Brand Name :
SENINTER
Rated Voltage :
48VDC
ID :
95mm
Rated Speed :
2100RPM
Certification :
CE ROHS
Place of Origin :
CHINA
Description
OD:135 mm frameless motor
Is a high‑torque 135 mm outer‑rotor frameless BLDC torque motor, operating at 48VDC. It delivers 8 Nm continuous rated torque and strong 24 Nm peak torque, with rated power of 1760 W and maximum speed up to 2100 RPM.

Housing‑free split stator‑rotor design enables direct embedding into customer‑designed mechanical assemblies. Its 42‑pole topology provides excellent torque density, low cogging torque and ultra‑smooth rotation. This compact motor weighs only 964 g with stack length of 28 mm. Custom winding, cable harness modification and full OEM/ODM service are available for robot and automation integrators.

  • Collaborative robot joints & high‑speed robotic actuators
  • Industrial automation and rotary positioning platforms
  • Portable medical automation devices
  • High‑speed optical inspection equipment
  • AGV / AMR drive and steering units
  • Special‑purpose high‑speed automated machinery
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

Dimensions

Items SY135BLW20 Tolerance
Rotor outer diameter D 135 mm 0/-0.1
Magnetic ring inner diameter D1 131 mm 0/+0.05
Magnetic ring length L 28 mm ±0.2
Rotor bonding dimension L1 4.5 mm ±0.3
Stator inner diameter D2 95 mm 0/+0.05
Stator length L2 20 mm ±0.2
Non‑wiring‑end height E 3.5 mm MAX
Wiring‑end height F 7.5 mm MAX

135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC



Electrical Specifications

Item Unit SY135BLW20‑48V
Number of poles — 42
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 8
Rated current A 45.2
Rated speed RPM 2100
Rated power W 1760
Maximum speed RPM 2700
Peak torque N.m 24
Peak current A 135
Line‑to‑line resistance ohms@20℃ 0.031
Line‑to‑line inductance mH 0.051
Torque constant N.m/A 0.186
Back EMF Vrms/KRPM 12.4
Motor length mm 28
Weight g 964
Electrical time constant ms 1.65
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC

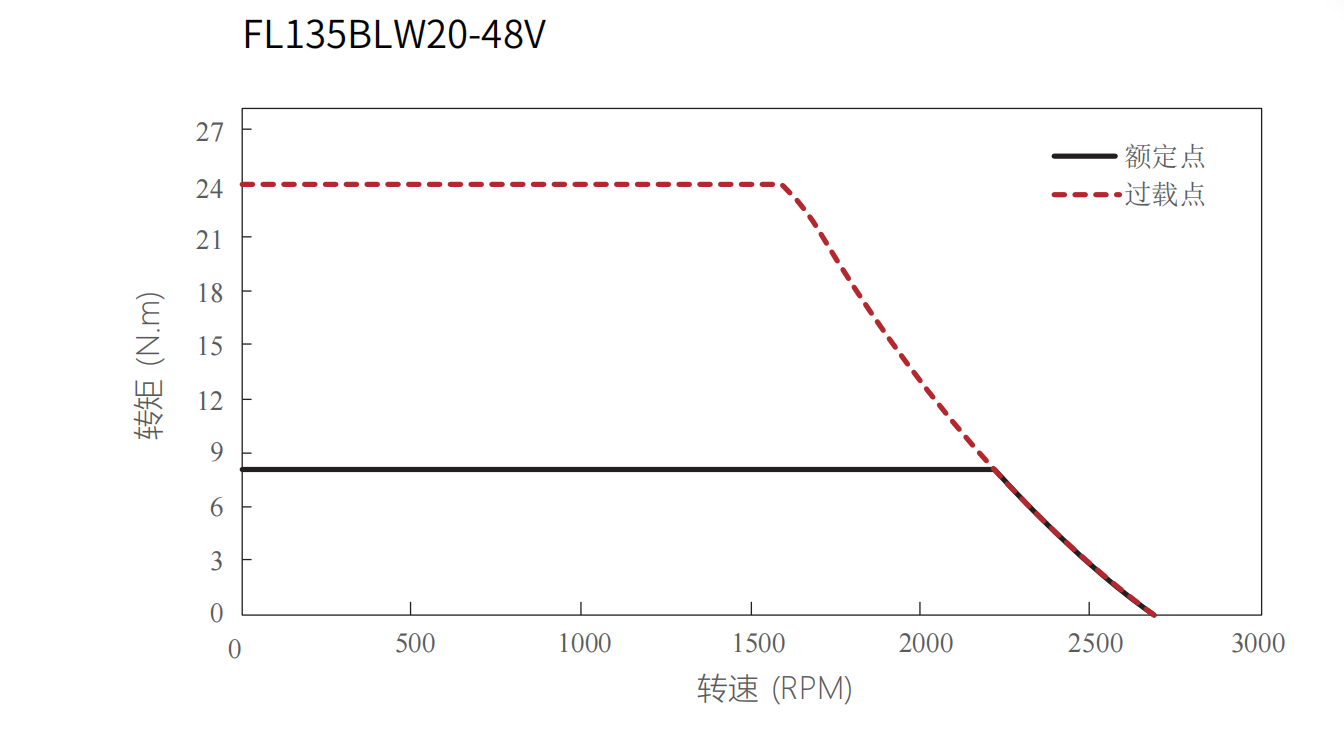

Torque Performance Curves

135mm Outer Rotor Frameless Torque Motor 1760W |24 Nm | 2700rpm | 48VDC
