75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
Specifications
Rated Torque :
1.4Nm
Brand Name :
SENINTER
Rated Voltage :
48VDC
Model Number :
SY75BLW33-48V
OD :
75.4mm
Rated Power :
485W
ID :
51mm
Rated Speed :
3300RPM
Certification :
CE ROHS
Place of Origin :
CHINA
Description
OD:75.4 mm frameless motor
is a high‑speed 75.4 mm outer‑rotor frameless BLDC torque motor, powered by standard 48 VDC industrial power supply. It delivers 485 W rated power, 1.4 Nm continuous rated torque and up to 4.2 Nm peak torque, with maximum speed reaching 4500 RPM.

Housing‑less split stator‑rotor design enables full embedding into customer‑custom mechanical structures. At only 233 g weight and 21.2 mm stack length, it achieves outstanding power‑to‑size ratio. Low cogging ensures smooth rotation and high dynamic response for high‑speed precision motion. We provide custom winding, cable modification and OEM/ODM service for system integrators, robot manufacturers and automation equipment suppliers.Suitable for high‑speed compact automation equipment:

  • Collaborative robot joints & high‑speed robotic actuators
  • Industrial automation and rotary positioning platforms
  • Portable medical automation devices
  • High‑speed optical inspection equipment
  • AGV / AMR drive and steering units
  • Special‑purpose high‑speed automated machinery
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

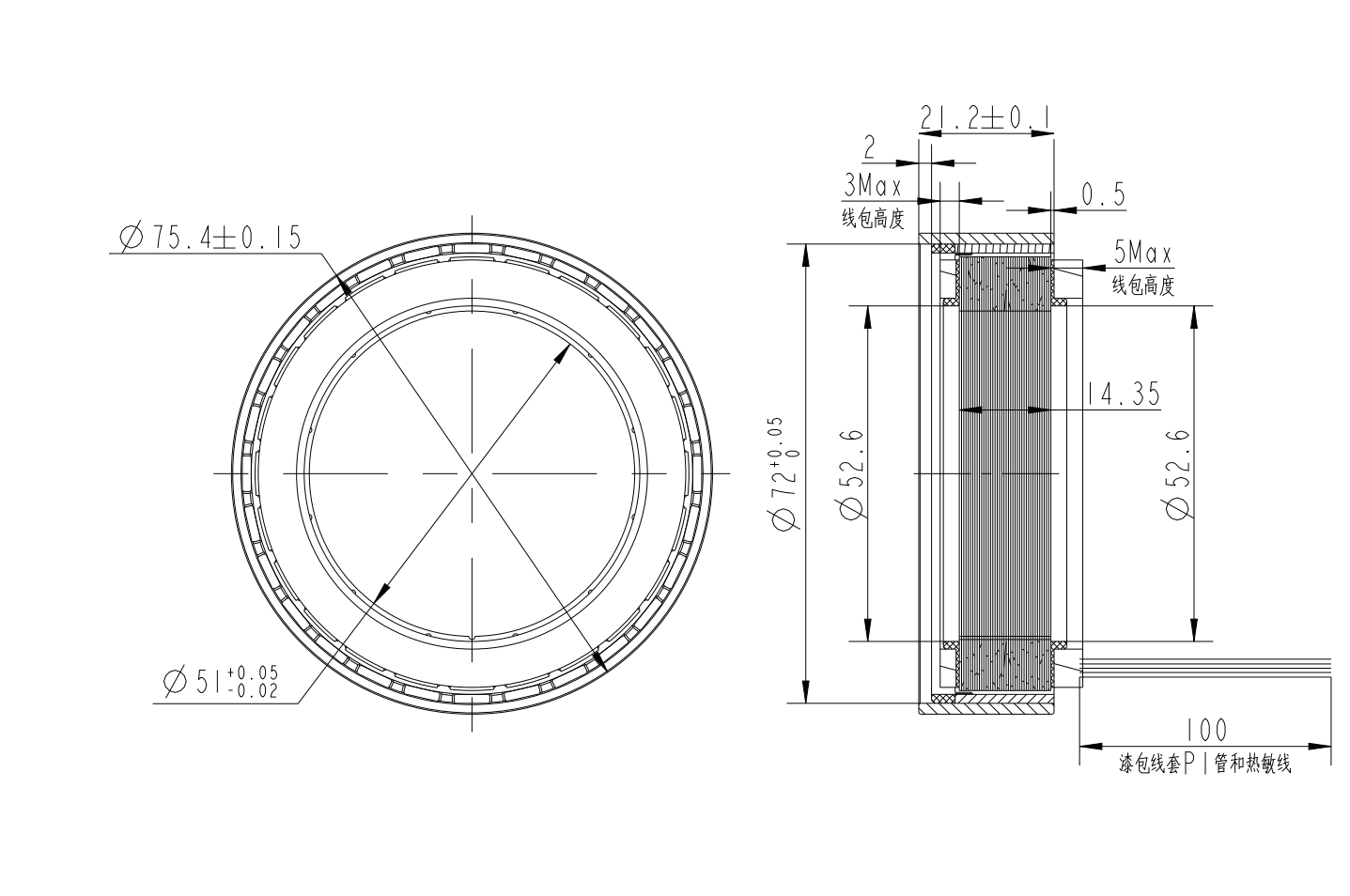

Dimensions

Items SY75BLW33 Tolerance
Rotor outer diameter D 75.4 mm ±0.15
Magnetic ring inner diameter D1 72 mm 0/+0.05
Magnetic ring length L 21.2 mm ±0.1
Rotor bonding dimension L1 2 mm ±0.3
Stator inner diameter D2 51 mm -0.4
Stator length L2 14.35 mm ±0.2
Non‑wiring‑end height E 3 mm MAX
Wiring‑end height F 5 mm MAX

75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC



Electrical Specifications

Item Unit SY75BLW33‑48V
Number of poles — 28
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 1.4
Rated current A 12
Rated speed RPM 3300
Rated power W 485
Maximum speed RPM 4500
Peak torque N.m 4.2
Peak current A 36
Line‑to‑line resistance ohms@20℃ 0.23
Line‑to‑line inductance mH 0.165
Torque constant N.m/A 0.125
Back EMF Vrms/KRPM 7.6
Motor length mm 21.2
Weight g 233
Electrical time constant ms 0.72
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC

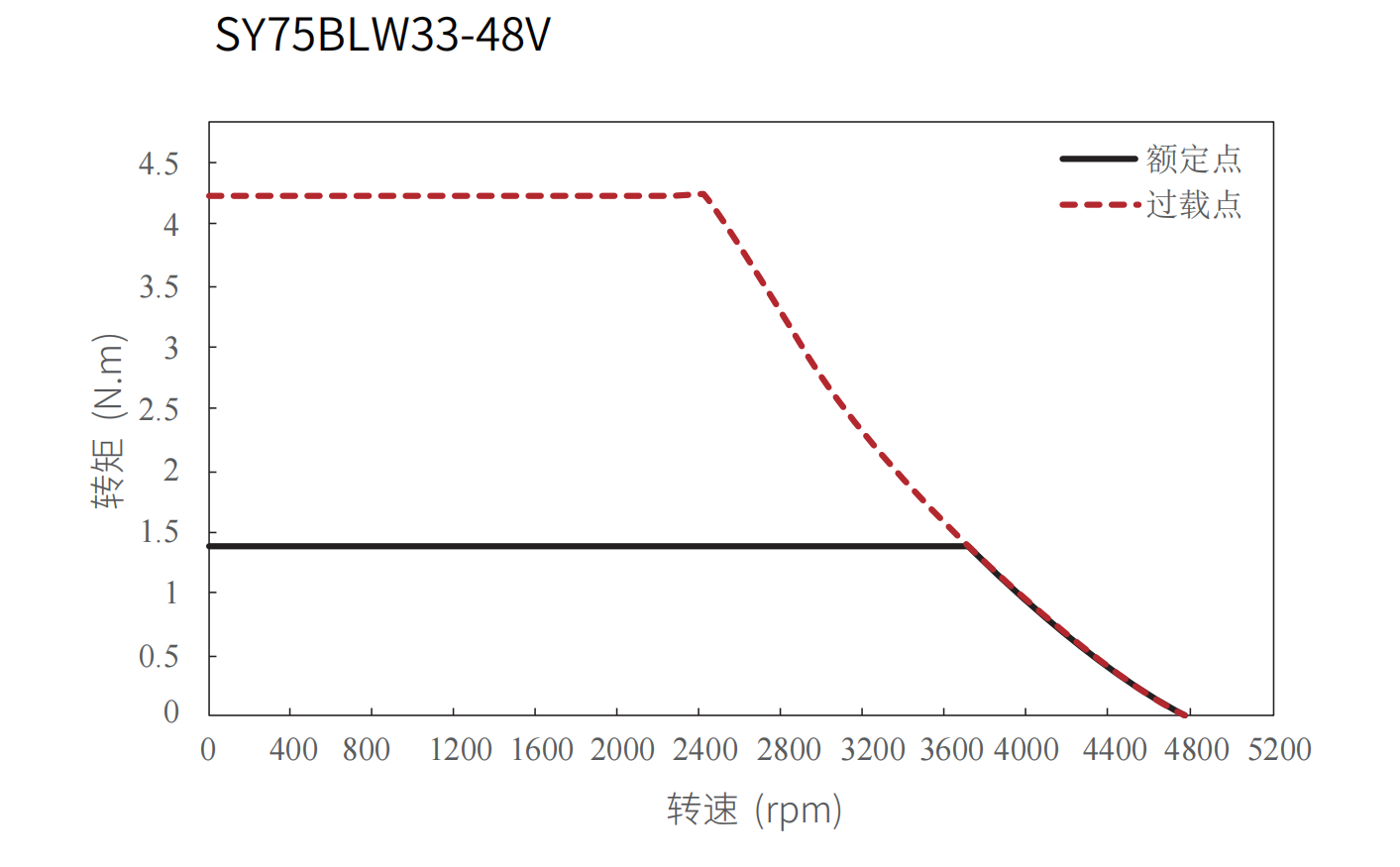

Torque Performance Curves

75mm Outer Rotor Frameless Torque Motor 485W |4.2 Nm | 4500rpm | 48 VDC
