60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
Specifications
Rated Power :
162W
Rated Voltage :
48VDC
Brand Name :
SENINTER
Model Number :
SY60HSV12-48V
OD :
60mm
Rated Speed :
3100RPM
ID :
25mm
Rated Torque :
0.5Nm
Certification :
CE ROHS
Place of Origin :
CHINA
Description
OD:60mm frameless motor
The 60mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 3100rpmand 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

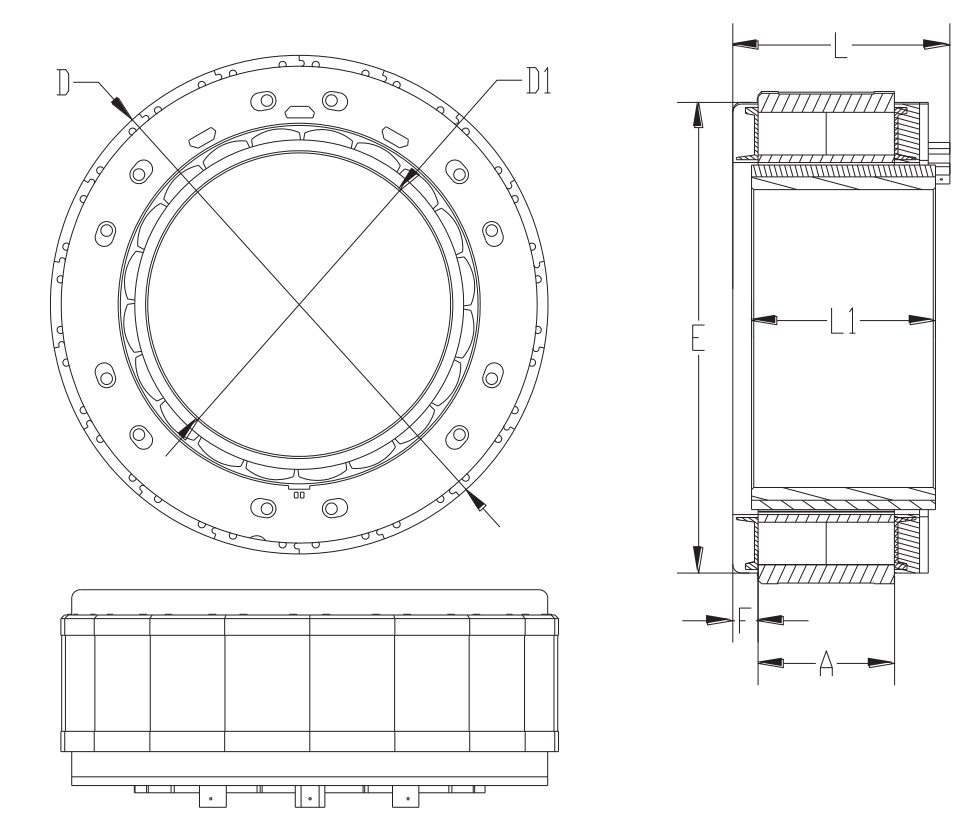

Dimensions


Item Dimension (mm) Tolerance
Stator outer diameter D 60 js9
Stator length L 30.2 ±1
Rotor inner diameter D1 25 H8
Rotor length L1 18 ±0.25
Bobbin outer diameter E 56 ±0.5

60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC

Electrical Specifications

Item Unit SY130HSV22‑48V
Number of poles ‑ 20
Number of phases ‑ 3
Rated voltage VDC 48
Rated torque N.m 6.5
Rated current A 23
Rated speed RPM 1400
Rated power W 953
Maximum speed RPM 1800
Peak torque N.m 21.5
Peak current A 71
Line to line resistance ohms@20℃ 0.14
Line to line inductance mH 0.38
Torque constant Nm/A 0.31
Back EMF Vrms/KRPM 18.8
Motor length mm 49
Weight g 1200
Electrical time constant ms 2.71
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC

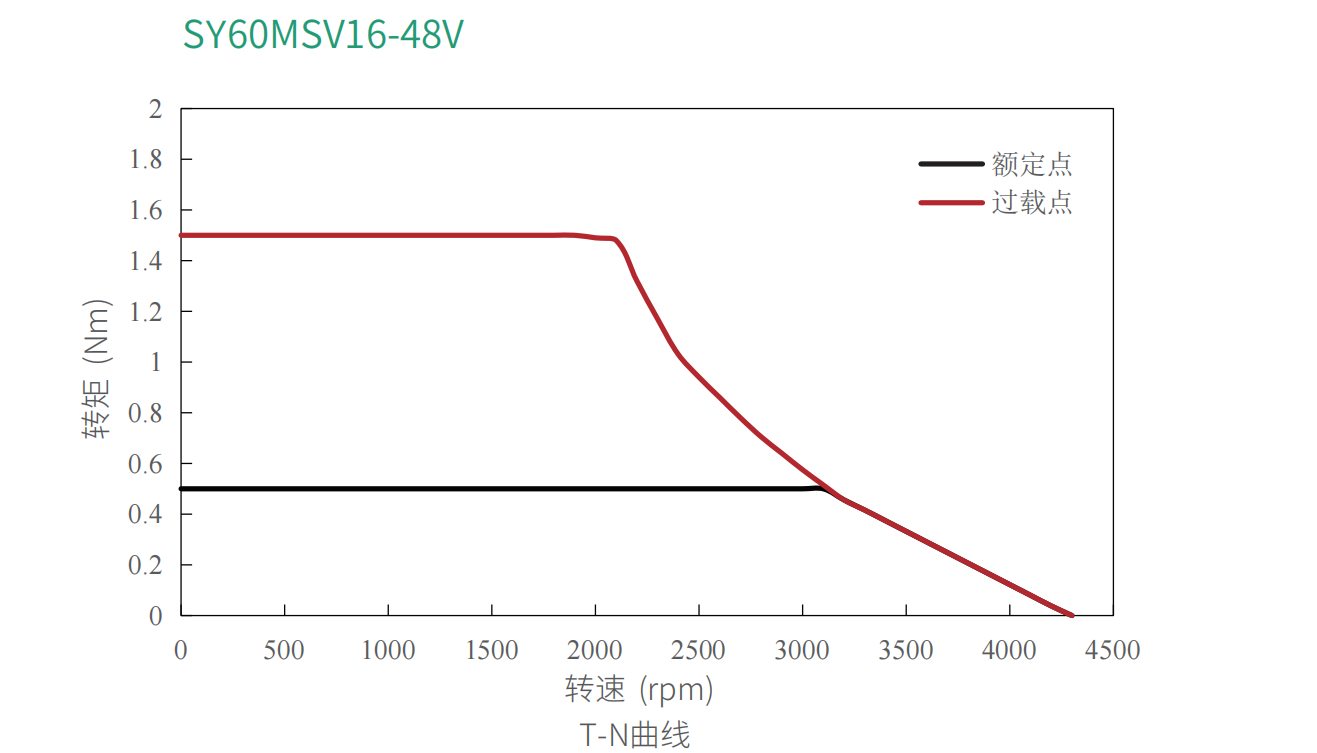

Torque Performance Curves

60mm Frameless Motor 162W | 1.5 Nm | 4500 rpm | 48 VDC
