50mm Frameless Motor 183W |1.5Nm | 4800 rpm | 48 V
50mm Frameless Motor 183W |1.5Nm | 4800 rpm | 48 V
Specifications
ID :
30mm
Place of Origin :
CHINA
Rated Speed :
3500RPM
Rated Voltage :
48VDC
Brand Name :
SENINTER
Model Number :
SY50HSV15-48V
Rated Power :
183W
Certification :
CE ROHS
OD :
50mm
Rated Torque :
0.5Nm
Description
OD:50mm frameless motor
The 50mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 5000rpm,3500rpm and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.



50mm Frameless Motor 183W |1.5Nm | 4800 rpm | 48 V

Electrical Specifications

Items Unit SY50HSV08-48V SY50HSV15-48V Tolerance
Stator Outer Diameter D mm 50 50 ±0.031 (js9)
Stator Stack Length L mm 12.9 19.1 ±1
Rotor Inner Diameter D1 mm 30 30 (+0.033/0) H8
Rotor Length L1 mm 10 17 ±0.2
Potting Surface Outer Diameter E mm 47.6 47.6 ±0.2
Potting Surface Height F mm 2.5 2.5 ±0.5
Stator Core Height A mm 8.6 15 /
Number of poles - 20 20 -
Number of phases - 3 3 -
Rated voltage VDC 48 48 -
Rated torque N·m 0.3 0.5 -
Rated current A 3.6 4.8 -
Rated speed RPM 5000 3500 -
Rated power W 157 183 -
Maximum speed RPM 6200 4800 -
Peak torque N·m 0.96 1.5 -
Peak current A 11.6 14.5 -
Line-to-line resistance ohms @ 20℃ 0.93 0.7 -
Line-to-line inductance mH 0.457 0.38 -
Torque constant Nm/A 0.089 0.117 -
Back EMF Vrms/KRPM 5.4 7.1 -
Weight g 105 128 -
Electrical time constant ms 0.49 0.54 -
Winding Type - Star connection Star connection -
Dielectric Strength - 1000VAC / 1S, 2mA 1000VAC / 1S, 2mA -
Insulation Resistance - 100MΩ @ 500VDC 100MΩ @ 500VDC -
Ambient Temperature °C -20 ~ +50 -20 ~ +50 -
Insulation Class - Class B Class B -
Customization Support - Available Available -
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
50mm Frameless Motor 183W |1.5Nm | 4800 rpm | 48 V

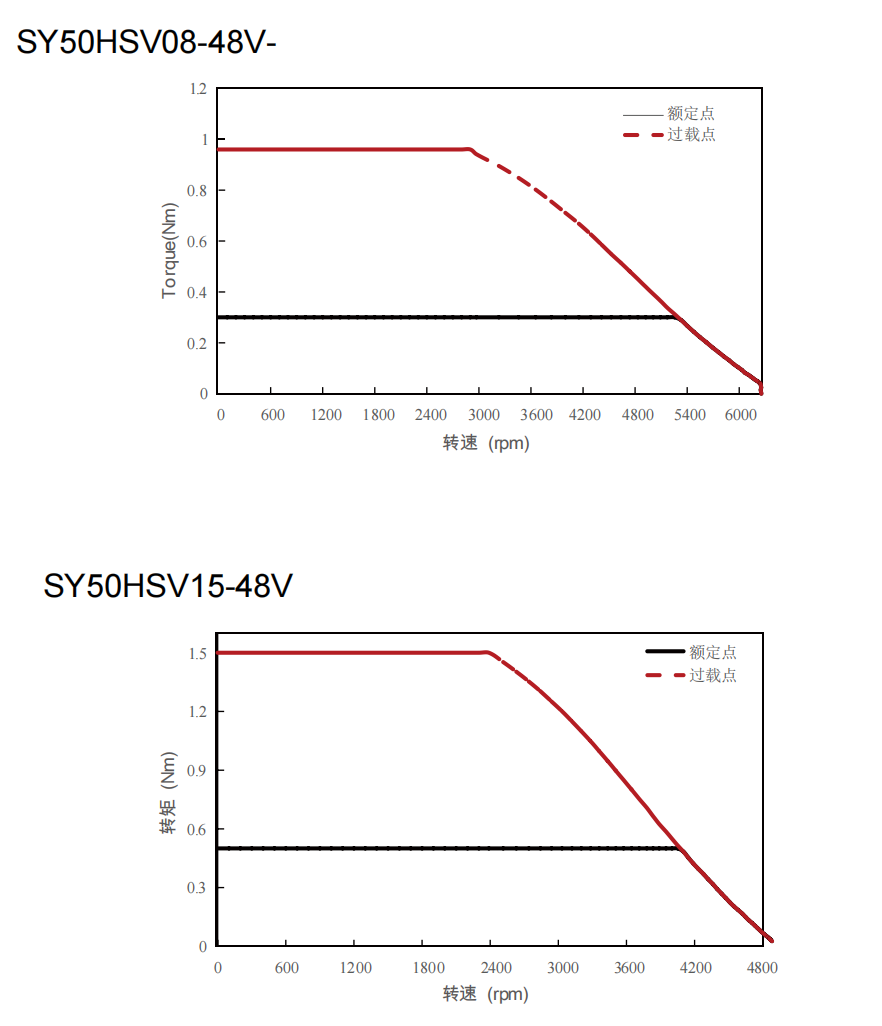

Torque Performance Curves
