60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC
60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC
60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC
60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC
Specifications
Rated Voltage :
48VDC
Brand Name :
SENINTER
Rated Power :
188W
ID :
39.2mm
Place of Origin :
CHINA
Rated Speed :
4000RPM
Model Number :
SY60HSV12-48V
OD :
60mm
Certification :
CE ROHS
Rated Torque :
0.45Nm
Description
OD:60mm frameless motor
The 60mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 4000rpmand 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.




60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC

Electrical Specifications

Items Unit SY60HSV12-48V Tolerance
Stator Outer Diameter D mm 60 ±0.03 (js9)
Stator Stack Length L mm 18.5 /
Rotor Inner Diameter D1 mm 39.2 (+0.039/0) H8
Rotor Length L1 mm 16 ±0.2
Potting Surface Outer Diameter E mm 58 /
Potting Surface Height F mm 3.7 MAX
Stator Core Height A mm 12 /
Number of poles - 20 -
Number of phases - 3 -
Rated voltage VDC 48 -
Rated torque N·m 0.45 -
Rated current A 5 -
Rated speed RPM 4000 -
Rated power W 188 -
Maximum speed RPM 5200 -
Peak torque N·m 1.35 -
Peak current A 15 -
Line-to-line resistance ohms @ 20℃ 0.615 -
Line-to-line inductance mH 0.46 -
Torque constant Nm/A 0.102 -
Back EMF Vrms/KRPM 6.2 -
Weight g 165 -
Electrical time constant ms 0.75 -
Winding Type - Star connection -
Dielectric Strength - 1000VAC / 1S, 2mA -
Insulation Resistance - 100MΩ @ 500VDC -
Ambient Temperature °C -20 ~ +50 -
Insulation Class - Class B -
Customization Support - Available -
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC

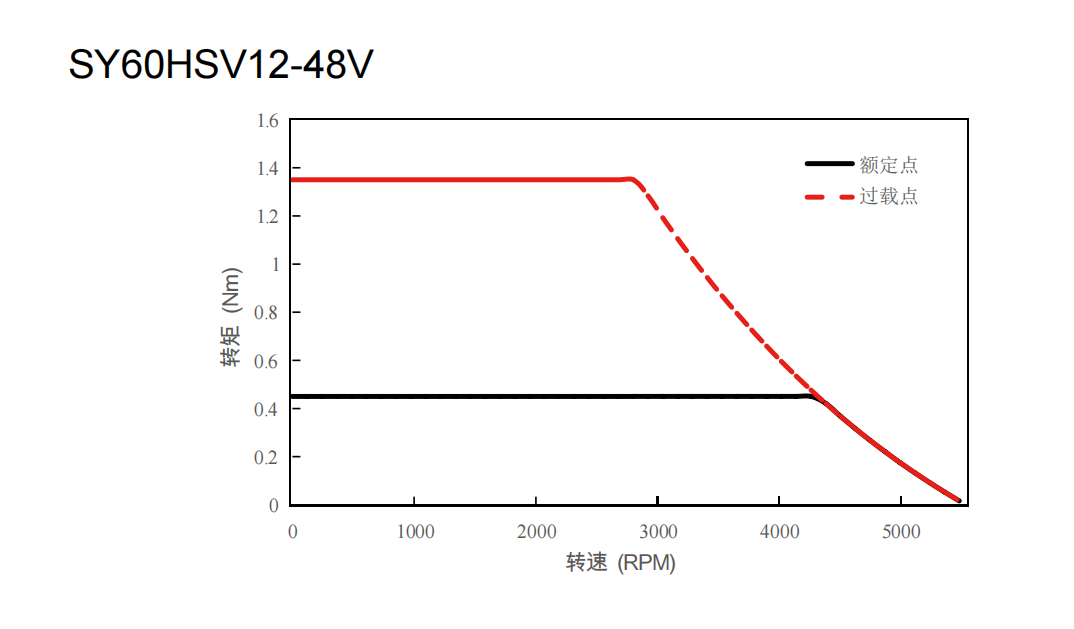

Torque Performance Curves

60mm Frameless Motor 188W | 1.35 Nm | 5200 rpm | 48 VDC
