70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC
Specifications
Rated Power :
185W
Brand Name :
SENINTER
Rated Voltage :
48VDC
Model Number :
SY70HSV10‑TG
OD :
69mm
Rated Speed :
2500RPM
ID :
42mm
Rated Torque :
0.7Nm
Certification :
CE ROHS
Place of Origin :
CHINA
Description
OD:69mm frameless motor
The 69mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 2500 RPM - 2600 RPM and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

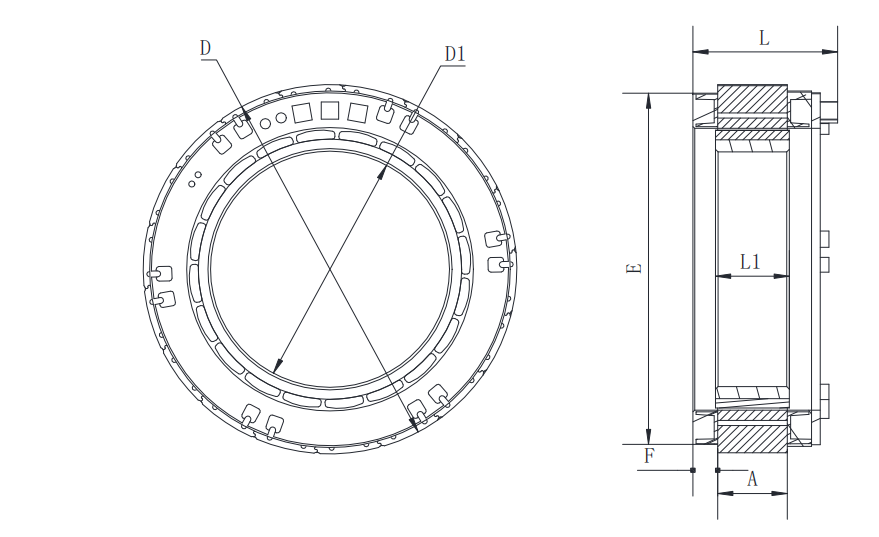

Dimensions
Item SY70HSV10‑TG SY70HSV13‑TG Tolerance
Stator outer diameter D 69 mm 69 mm h8
Stator length L 21.7 mm 24.8 mm Max
Rotor inner diameter D1 42 mm 42 mm H7
Rotor length L1 10.5 mm 13.5 mm ,+0.1/0
Potting surface outer diameter E 66.2 mm 66.2 mm Max
Potting surface height F 3.5 mm 4.1 mm Max



70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC

Electrical Specifications

Item Unit SY70HSV10‑TG SY70HSV13‑TG
Number of poles — 20 20
Number of phases — 3 3
Rated voltage VDC 48 48
Rated torque N.m 0.7 1
Rated current Arms 4.5 9.1
Rated speed RPM 2500 2600
Rated power W 185 272
Maximum speed RPM 3300 4600
Peak torque N.m 2.7 3.5
Peak current Arms 22.5 36
Line to line resistance ohms@20°C 0.53 0.16
Line to line inductance mH 1 0.34
Torque constant Nm/Arms 0.16 0.11
Back EMF Vrms/KRPM 10.5 7.3
Motor length mm 21.7 23.7
Weight g 205 249
Electrical time constant ms 1.89 2.13
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
70mm Frameless Motor 185W | 2.7 Nm |3300 rpm | 48 VDC

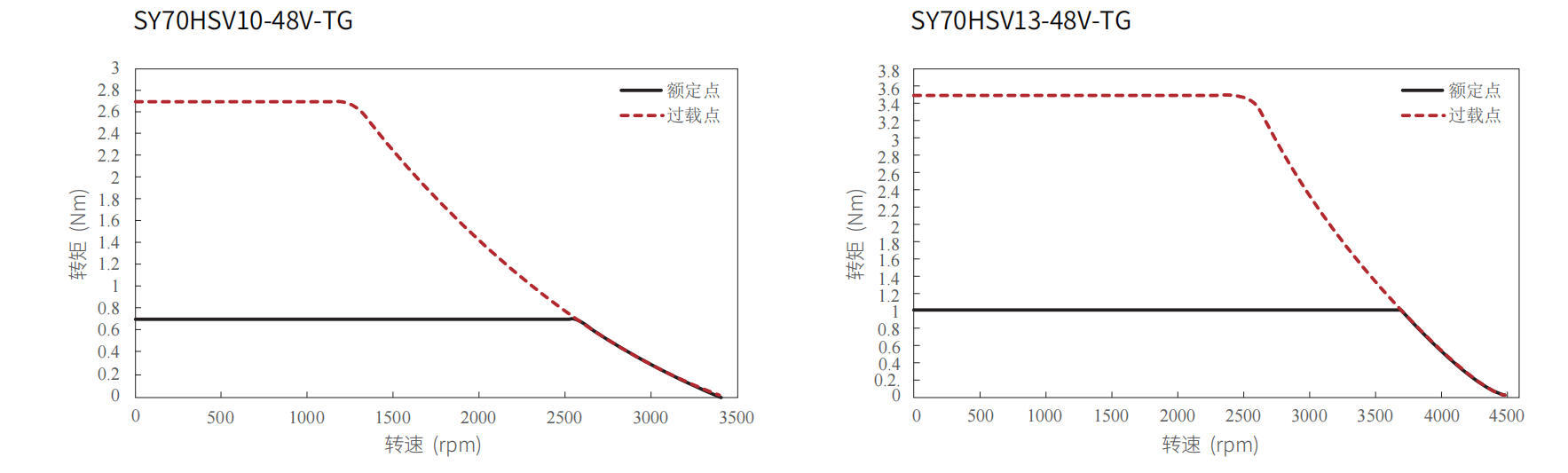

Torque Performance Curves
