OD:76mm Frameless motor
The 76mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 3000 RPM and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

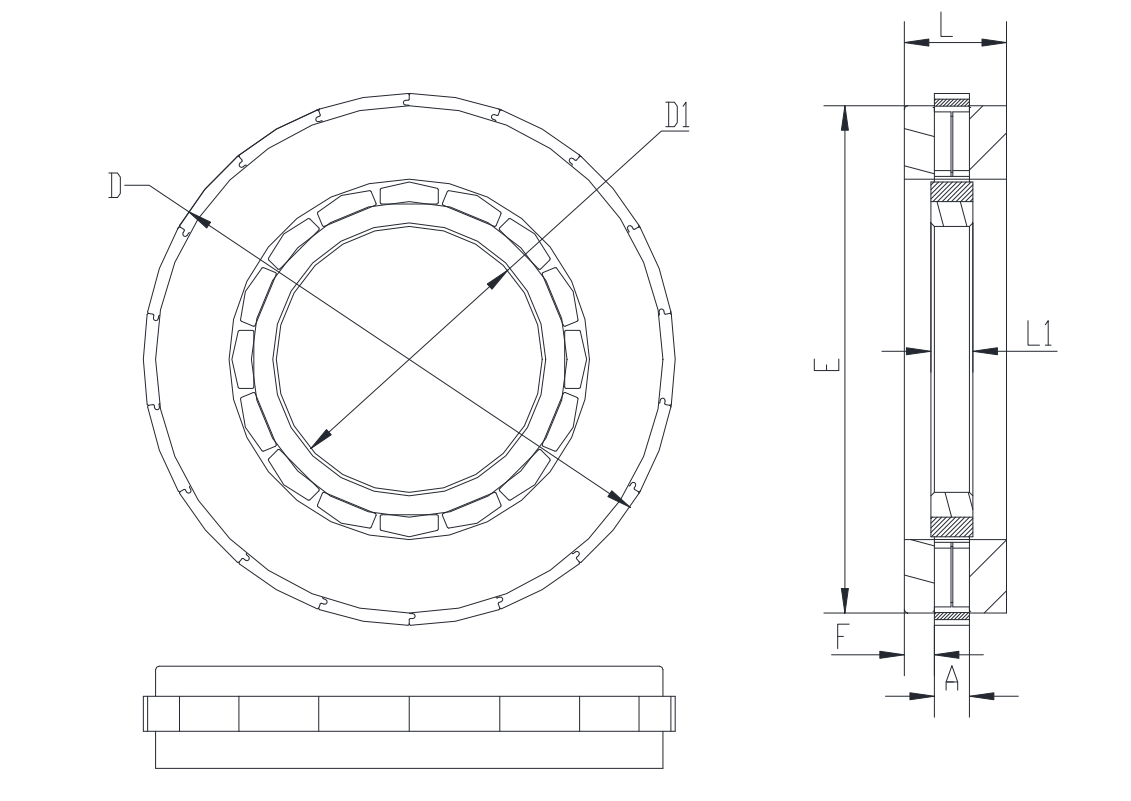

Dimensions
Item Dimension (mm) Tolerance
Stator outer diameter D 76 0 / -0.07
Stator length L 15 ±1
Rotor inner diameter D1 38 H7
Rotor length L1 6 ±0.1
Potting surface outer diameter E 72.5 MAX
Potting surface height F 4.5 MAX



76mm Frameless Motor 366W | 3Nm |4500 rpm | 48 VDC

Electrical Specifications

Item Unit SY76HSV05‑48V
Number of poles — 16
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 0.4
Rated current A 3.6
Rated speed RPM 3000
Rated power W 126
Maximum speed RPM 4490
Peak torque N.m 1.2
Peak current A 10.2
Line to line resistance ohms @20°C 0.9
Line to line inductance mH 1.6
Torque constant Nm/A 0.125
Back EMF Vrms/KRPM 7.56
Motor length mm 15
Weight g 171
Electrical time constant ms 1.78
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
