OD:50mm frameless motor
The 50mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 5500rpm,3300rpm and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

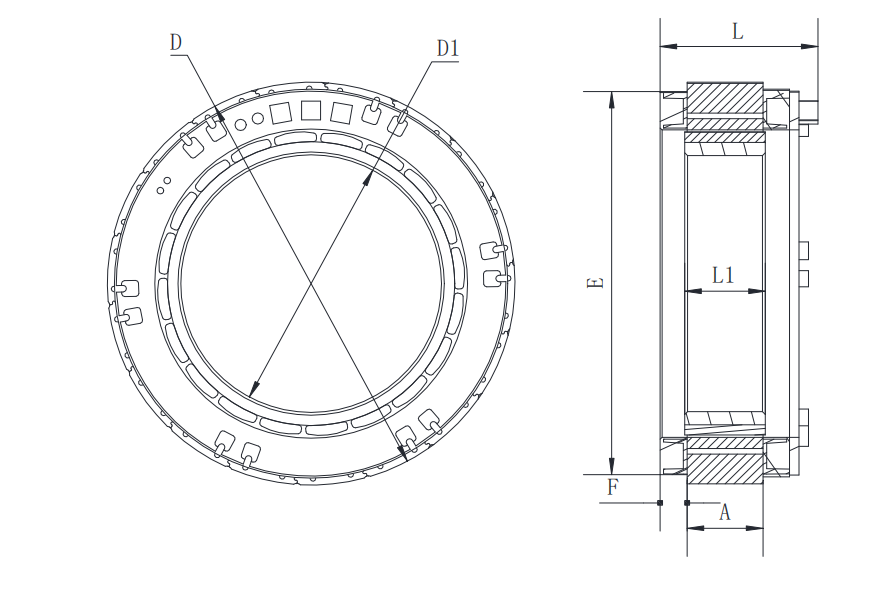

Dimensions


Item SY50HSV08‑TG SY50HSV14‑TG Tolerance
Stator outer diameter D 50 mm 50 mm h8
Stator length L 17.7 mm 23.7 mm Max
Rotor inner diameter D1 30 mm 30 mm H7
Rotor length L1 9.9 mm 14.6 mm ,+0.1/0
Potting surface outer diameter E 48.4 mm 48.4 mm Max
Potting surface height F 3.5 mm 3.5 mm Max

50mm Frameless Motor 173 W | 1.5Nm |4000 rpm | 48 VDC

Electrical Specifications

Item Unit SY50HSV08‑TG SY50HSV14‑TG
Number of poles — 20 20
Number of phases — 3 3
Rated voltage VDC 48 48
Rated torque N.m 0.3 0.5
Rated current Arms 3.8 3.8
Rated speed RPM 5500 3300
Rated power W 173 173
Maximum speed RPM 6800 4000
Peak torque N.m 0.9 1.5
Peak current Arms 13.3 13.3
Line to line resistance ohms@20°C 0.45 0.63
Line to line inductance mH 0.36 0.56
Torque constant Nm/Arms 0.08 0.13
Back EMF Vrms/KRPM 5 8.5
Motor length mm 17.7 23.7
Weight g 92 137
Electrical time constant ms 0.8 0.89
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
50mm Frameless Motor 173 W | 1.5Nm |4000 rpm | 48 VDC

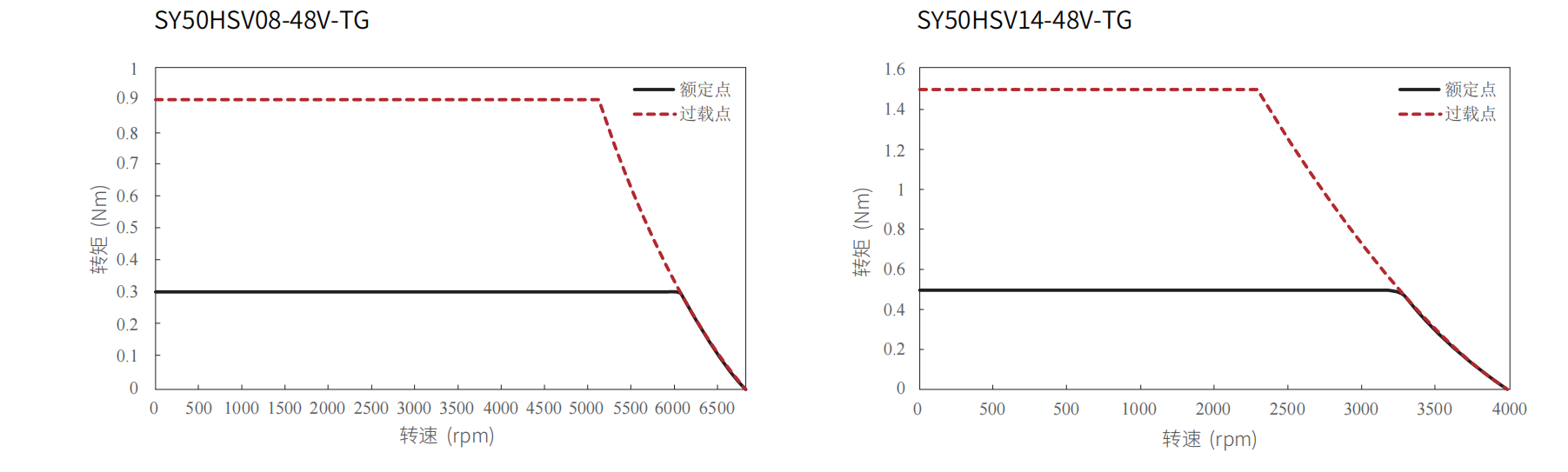

Torque Performance Curves
