58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
Specifications
Rated Power :
188W
Rated Voltage :
48VDC
Brand Name :
SENINTER
Model Number :
SY58HSV10-48V
OD :
50mm
Rated Speed :
3600RPM
ID :
29mm
Rated Torque :
0.5Nm
Certification :
CE ROHS
Place of Origin :
CHINA
Description
OD:58mm frameless motor
The 50mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor achieving higher torque density. Designed with a rated speed of 5800rpm,3600rpm and 48VDC it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.
Customization is available upon request for this motor series, including but not limited to rated voltage, speed, torque, lead wire specifications, outlet orientation, shaft configuration, encoder/sensor integration, and more. Please provide your specific requirements, and we will offer a tailored solution for you.

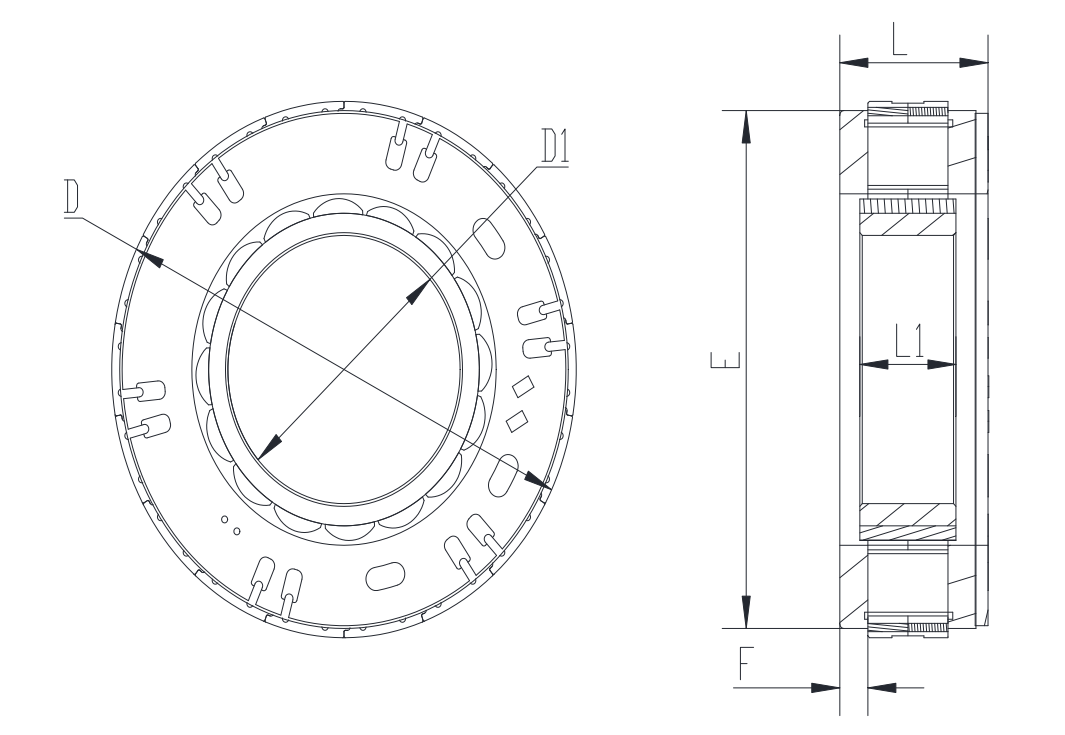

Item Dimension (mm) Tolerance
Stator outer diameter D 58 js9
Stator length L 18.2 ±1.3
Rotor inner diameter D1 29 H8
Rotor length L1 12 ±0.20
Potting surface outer diameter E 56 ±0.2
Potting surface height F 3.5 ±0.3

58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V

Electrical Specifications

Item Unit SY58HSV10-48V
Number of poles — 20
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 0.5
Rated current A 5.5
Rated speed RPM 3600
Rated power W 188
Maximum speed RPM 5800
Peak torque N.m 1.2
Peak current A 13
Line to line resistance ohms @20°C 0.65
Line to line inductance mH 0.9
Torque constant Nm/A 0.1
Back EMF Vrms/KRPM 6.06
Motor length mm 18.2
Weight g 155
Electrical time constant ms 1.38
Electric Connection:
Color Type Functions
White (WHT) UL1332 AWG26 NTC
White (WHT) UL1332 AWG26 NTC
Yellow UL1332 AWG24 Phase U
Red UL1332 AWG24 Phase V
Black UL1332 AWG24 Phase W
58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V

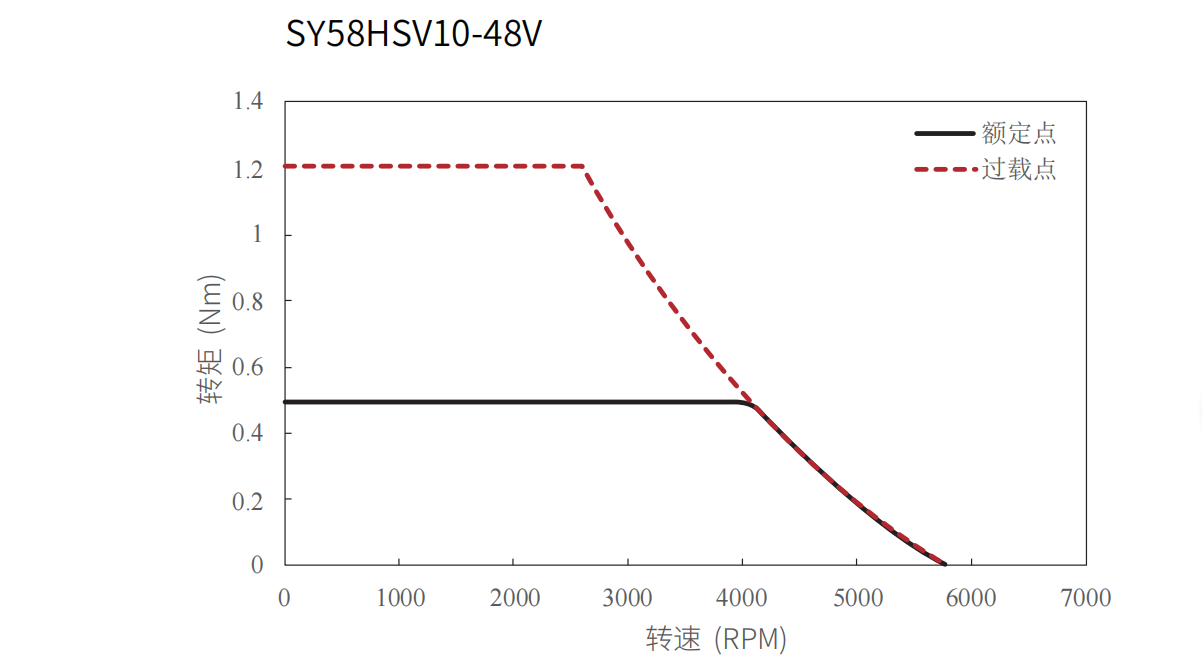

Torque Performance Curves

58mm Frameless Motor 188W |1.2Nm | 5800 rpm | 48 V
