32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
Specifications
Model Number :
SY32HSV07‑48V

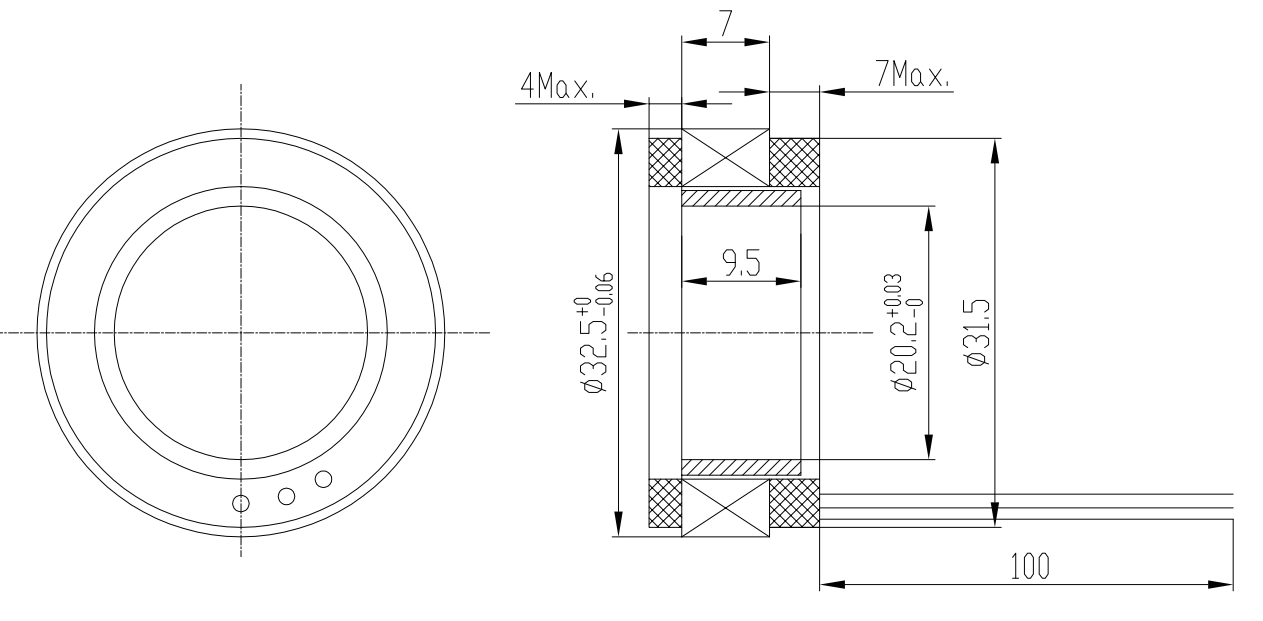

OD :
32.5mm
Rated speed :
7000 rpm
Rated power :
26W
Brand Name :
SENINTER
Rated voltage :
48 VDC
Place of Origin :
CHINA
ID :
20.2mm
Peak torque :
0.05 N.m
Certification :
CE ROHS
Description

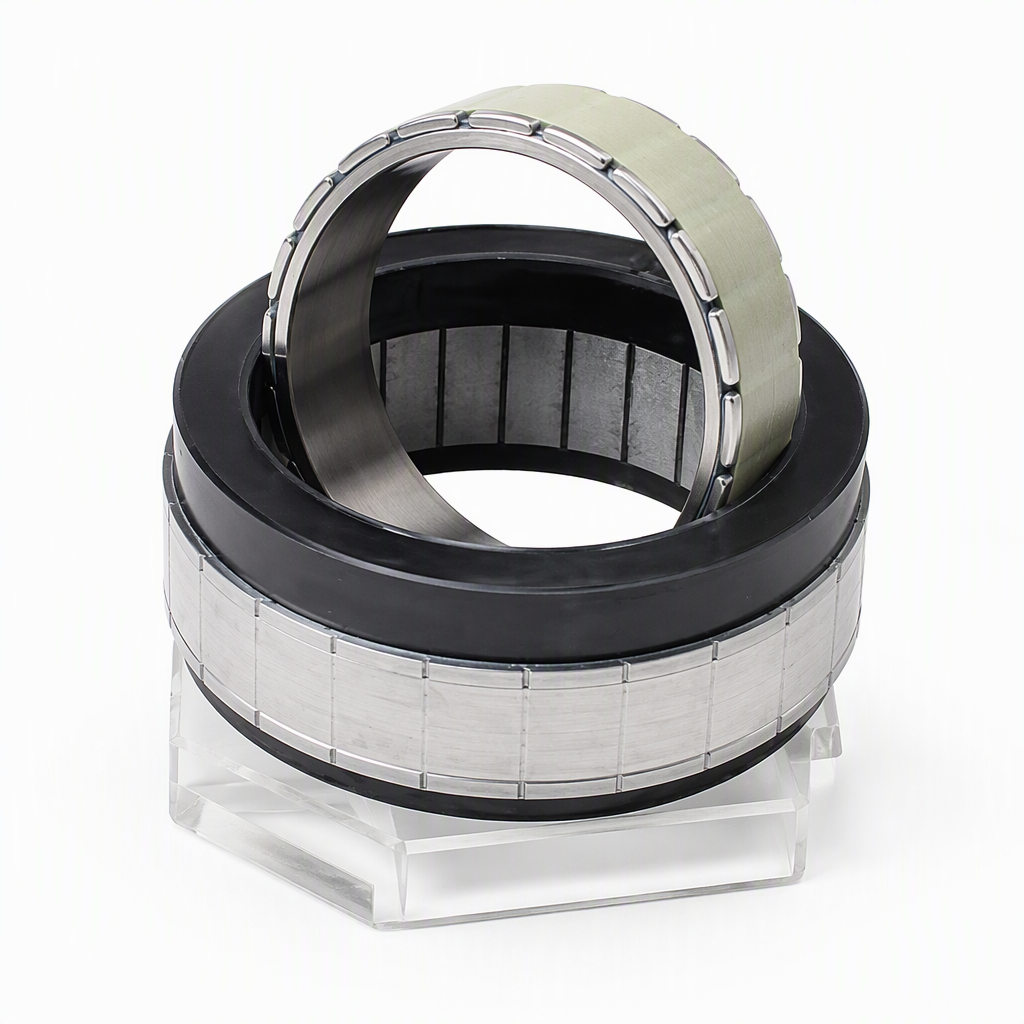

OD:32.5mm frameless motor



The 32.5mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor, achieving higher torque density. Designed with a rated speed of 7000rpm and 48 VDC, it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.

32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC


32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC

Electrical Specifications
Item Unit SY32HSV07‑48V
Number of poles — 14
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 0.05
Rated current A 0.8
Rated speed RPM 5000
Rated power W 26
Maximum speed RPM 7000
Peak torque N.m 0.1
Peak current A 1.6
Line to line resistance ohms @20°C 8.6
Line to line inductance mH 2.5
Torque constant mNm/A 64.8
Back EMF Vrms/KRPM 4.8
Motor length mm 16.4
Weight g 40
Electrical time constant ms 0.29
Electric Connection:
(Color) (Type) (Functions)
(Yellow) ARF250 0.35mm² AWG22 Phase U
(Red) ARF250 0.35mm² AWG22 Phase V
(Black) ARF250 0.35mm² AWG22 Phase W
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC 32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC

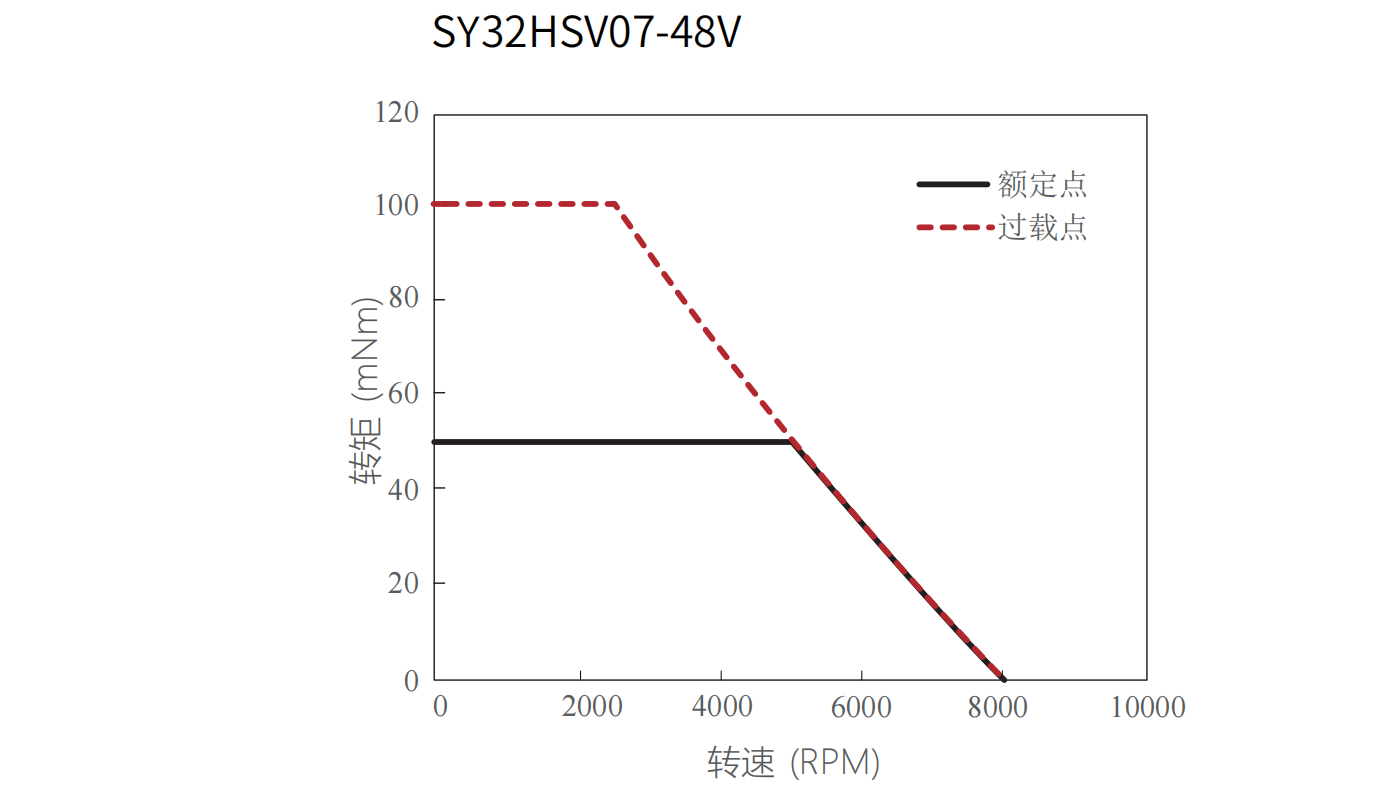

Torque Performance Curves
32.5mm FRAMELESS MOTOR 26W | 0.1 N.m | 7000 rpm | 48VDC
