25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC
25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC
25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC
25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC
Specifications
Rated voltage :
24 VDC
Certification :
CE ROHS
Rated power :
65W
ID :
8.35mm
Rated speed :
10000 rpm
Place of Origin :
CHINA
Model Number :
SY25HSV05
Rated torque :
0.063 N.m
Brand Name :
SENINTER
OD :
25mm
Description

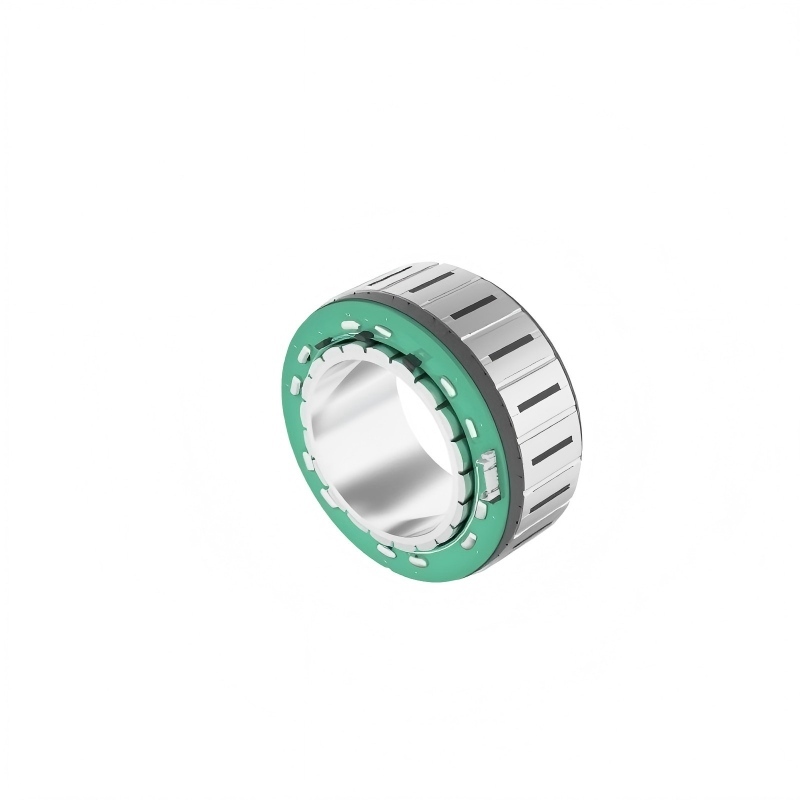

OD:25mm frameless motor



The 25mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor, achieving higher torque density. Designed with a rated speed of 10000rpm and 24 VDC, it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.

25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC


25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC

Electrical Specifications

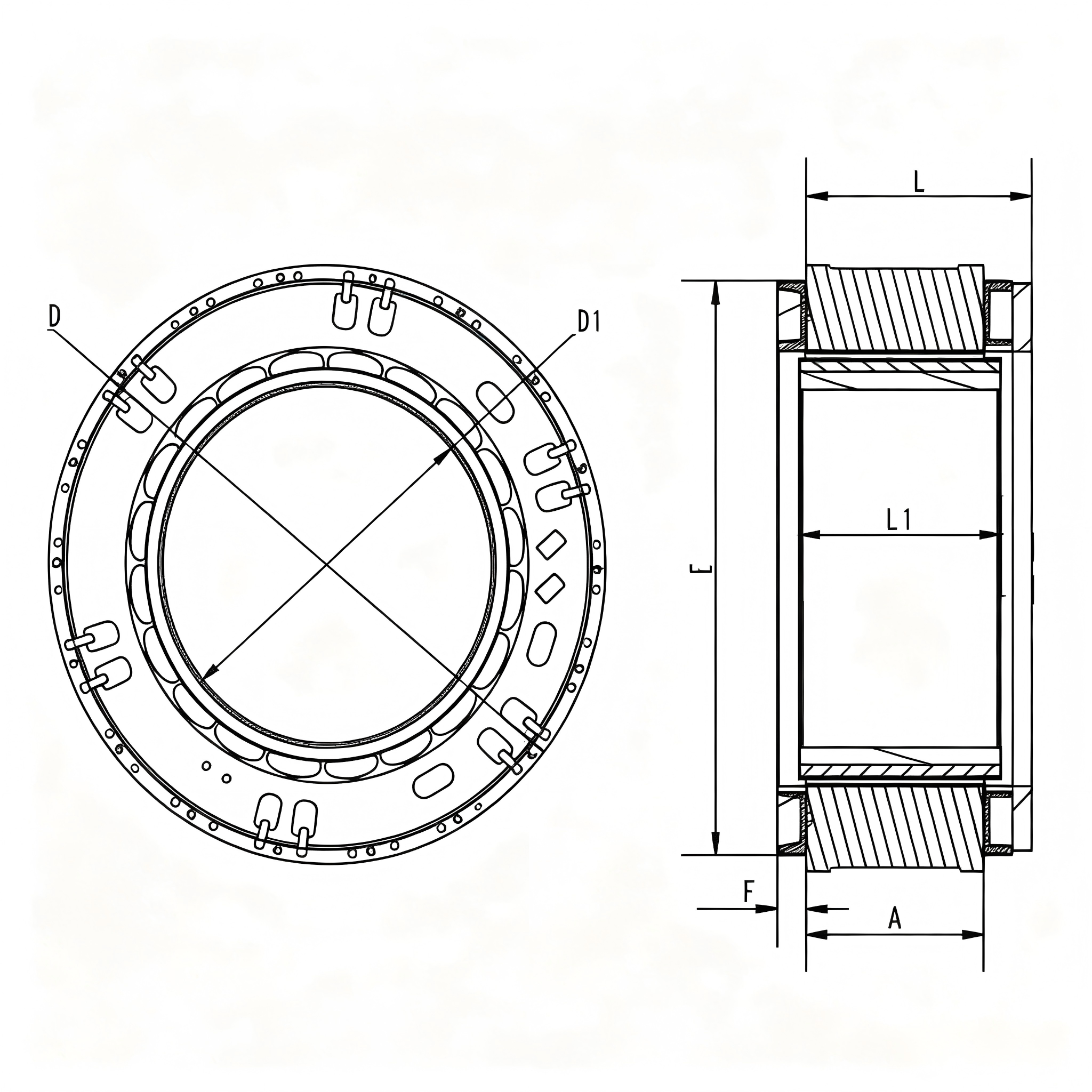

Items Unit SY25HSV05 SY25HSV09
D



mm

 25mm 25mm
L 8.35mm 12.55mm
D1 11.6mm 11.6mm
L1 7mm 11mm
E 24.2mm 24.2mm
F 2.4mm 2.4mm
A 5mm 9.2mm
Items Unit SY25HSV05 SY25HSV09
Number of poles
14 14
Number of phases
3 3
Rated voltage VDC 24 24
Rated torque N·m 0.032 0.063
Rated current A 1.5 3
Rated speed RPM 10000 10000
Rated power W 33 65
Maximum speed RPM 12300 13000
Peak torque N·m 0.105 0.204
Peak current A 5 9.8
Line to line resistance ohms@20℃ 1.7 0.77
Line to line inductance mH 0.6 0.28
Torque constant mNm/A 22.8 21.5
Back EMF Vrms/KRPM 1.37 1.3
Weight g 18 28.5
Electrical time constant ms 0.35

0.36
Electric Connection:
(Color) (Type) (Functions)
(Yellow) ARF250 0.35mm² AWG22 Phase U
(Red) ARF250 0.35mm² AWG22 Phase V
(Black) ARF250 0.35mm² AWG22 Phase W
25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC 25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC

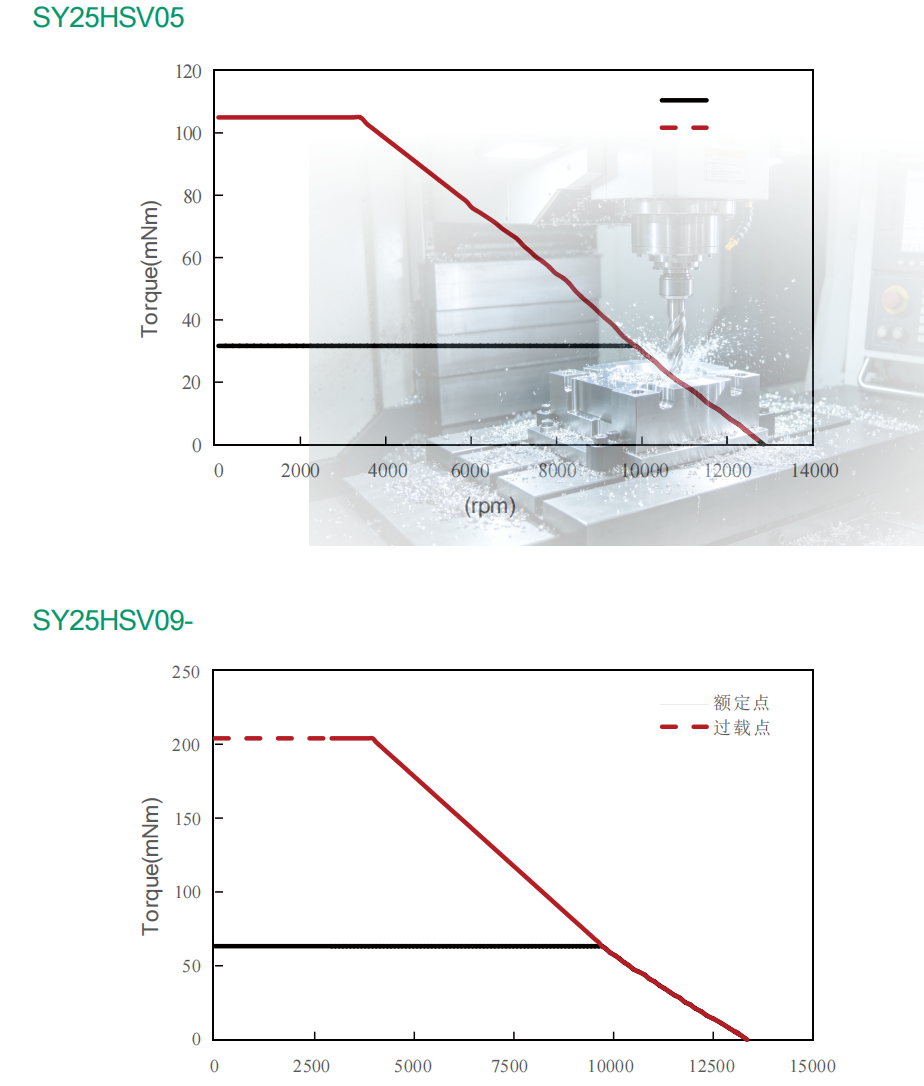

Torque Performance Curves

25MM FRAMELESS MOTOR 65W | 0.204 N.m | 13000 rpm | 24 VDC
