35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC
35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC
35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC
35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC
Specifications
Rated voltage :
48 VDC
Rated power :
48W
Certification :
CE ROHS
ID :
17mm
Model Number :
SY35HSV12‑48V
Rated speed :
3800 rpm
OD :
35mm
Brand Name :
SENINTER
Peak torque :
0.12 N.m
Place of Origin :
CHINA
Description

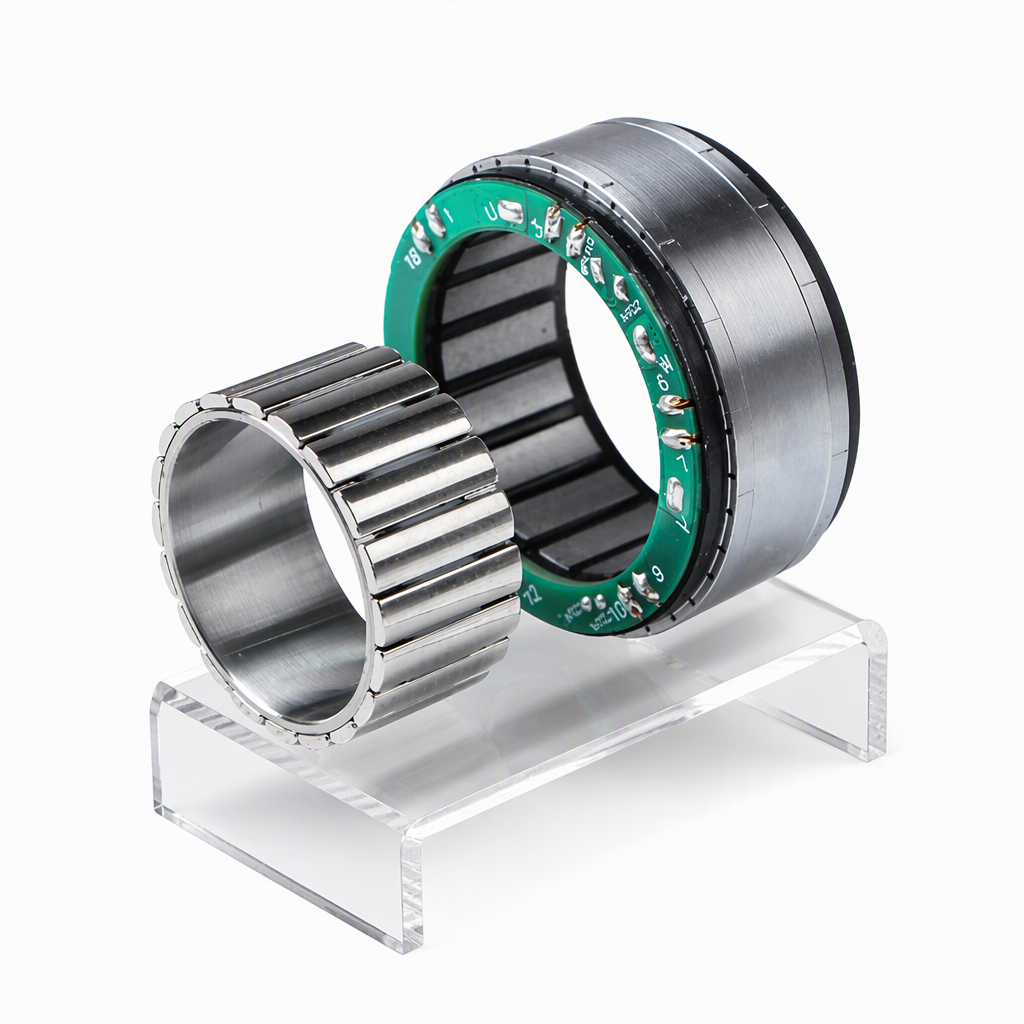

OD:35mm frameless motor



The 32.5mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor, achieving higher torque density. Designed with a rated speed of 3800rpm and 48 VDC, it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.

35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC

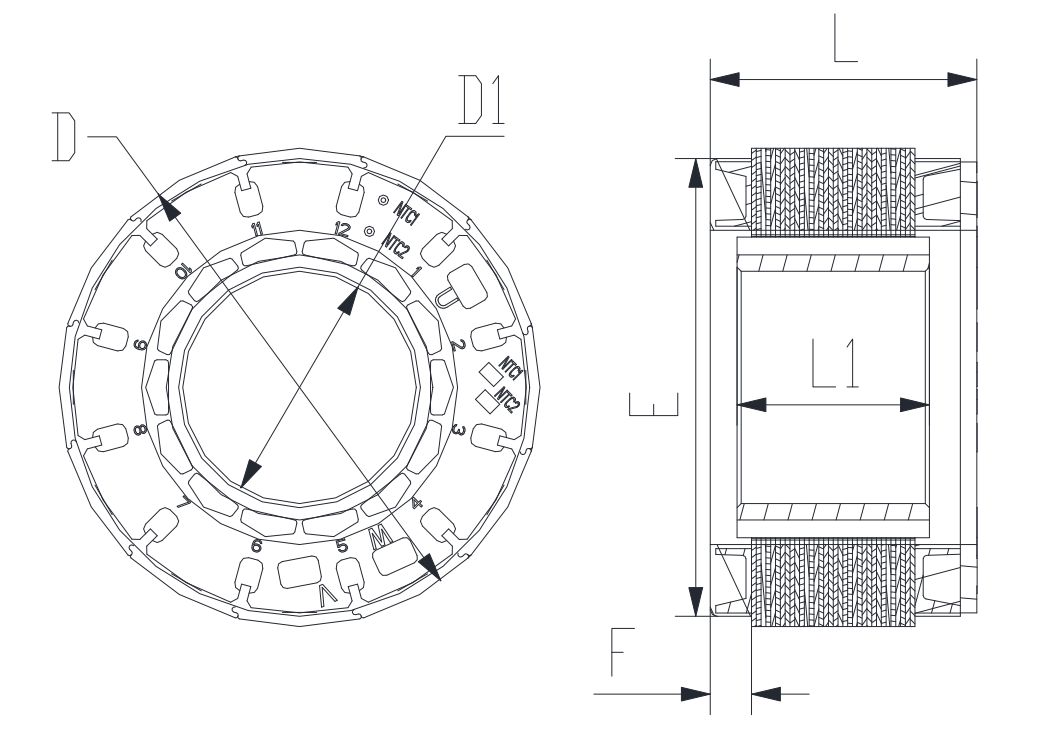

Item Dimension (mm) Tolerance
Stator outer diameter D 35 ±0.026
Stator length L 19.4 ±1
Rotor inner diameter D1 17 H8
Rotor length L1 14 ±0.20
Potting surface outer diameter E 33.5 MAX
Potting surface height F 3 ±0.5

35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC

Electrical Specifications
Item Unit SY35HSV12‑48V
Number of poles — 14
Number of phases — 3
Rated voltage VDC 48
Rated torque N.m 0.12
Rated current A 1.6
Rated speed RPM 3800
Rated power W 48
Maximum speed RPM 5400
Peak torque N.m 0.35
Peak current A 4.5
Line to line resistance ohms @20°C 4.1
Line to line inductance mH 1.93
Torque constant Nm/A 0.102

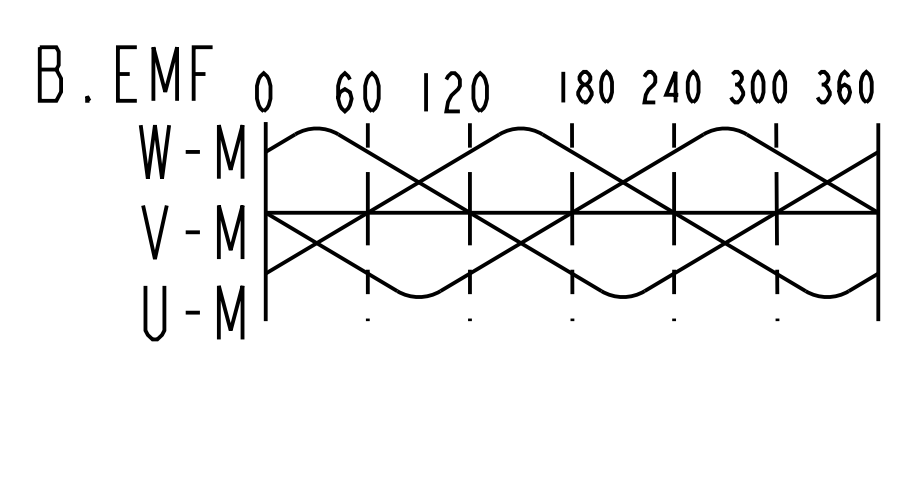

Back EMF Vrms/KRPM 6.2
Motor length mm 19.4
Weight g 65.4
Electrical time constant ms 0.47

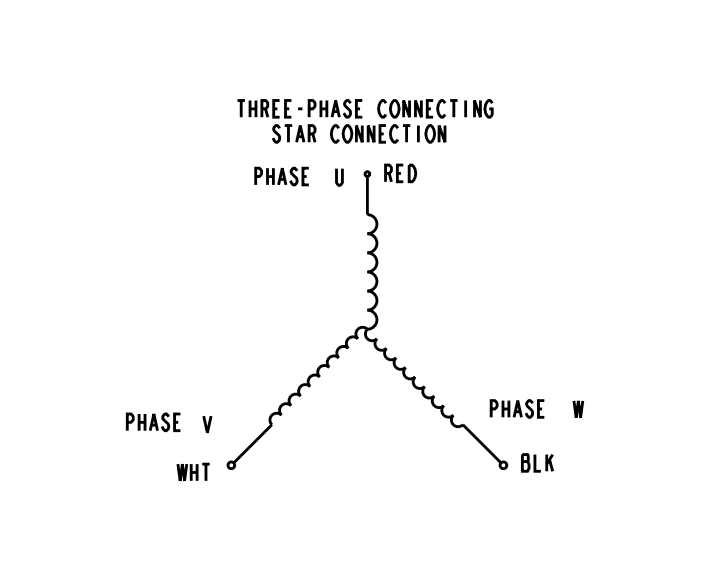

Electric Connection:
(Color) (Type) (Functions)
(Yellow) ARF250 0.35mm² AWG22 Phase U
(Red) ARF250 0.35mm² AWG22 Phase V
(Black) ARF250 0.35mm² AWG22 Phase W
35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC 35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC

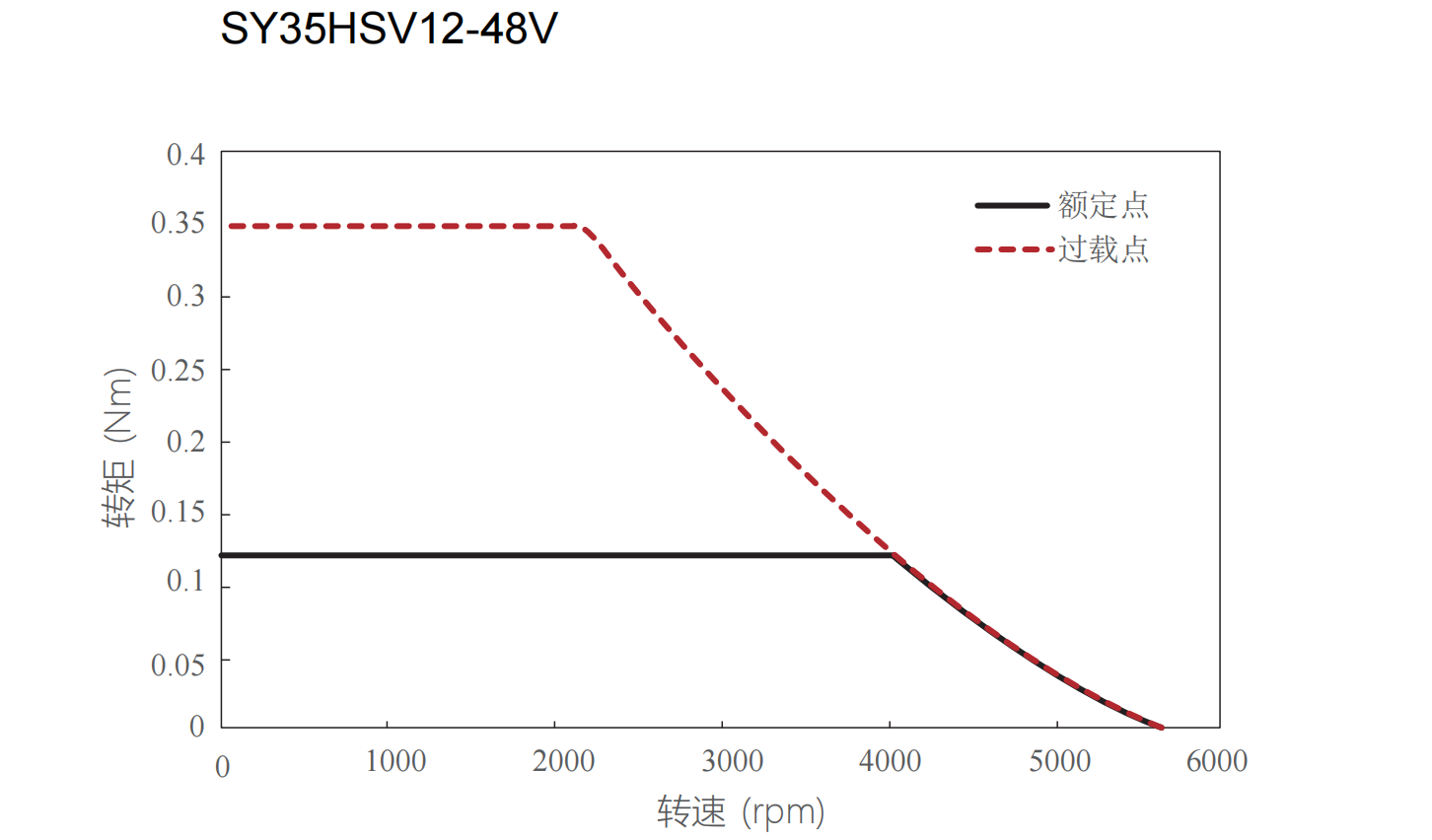

Torque Performance Curves
35mm FRAMELESS MOTOR48W | 0.35 N.m | 5400 rpm | 48VDC
