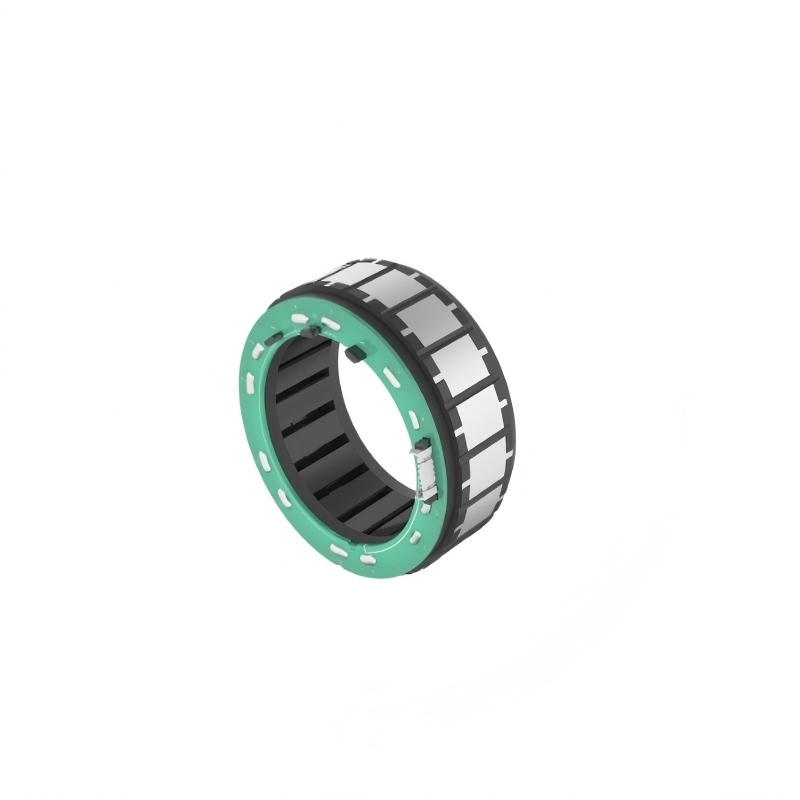

OD:38mm frameless motor

The 38mm frameless torque motor features a modular design of stator and rotor combined with an optimized slot fill factor, achieving higher torque density. Designed with a rated speed of 8000rpm ,5000rpm and 24 VDC and 48VDC, it is ideal for humanoid robot joints and equipment with limited space. NTC temperature sensors can be added upon customer request.

38mm Frameless Motor 120W | 0.69Nm | 7500 rpm | 48VDC


38mm Frameless Motor 120W | 0.69Nm | 7500 rpm | 48VDC

Electrical Specifications

Items Unit SY38HSV07-24V SY38HSV14-48V Tolerance
Stator Outer Diameter D mm 38 38 ±0.031 (js9)
Stator Stack Length L mm 14.8 21.8 ±1
Rotor Inner Diameter D1 mm 18 18 (+0.027/0) H8
Rotor Length L1 mm 8.1 16.1 ±0.2
Potting Surface Outer Diameter E mm 36 36 /
Potting Surface Height F mm 3 3 ±0.5
Stator Core Height A mm 7 14 /
Number of poles - 14 14 -
Number of phases - 3 3 -
Rated voltage VDC 24 48 -
Rated torque N·m 0.1 0.23 -
Rated current A 4.5 3.6 -
Rated speed RPM 8000 5000 -
Rated power W 83 120 -
Maximum speed RPM 11000 7500 -
Peak torque N·m 0.3 0.69 -
Peak current A 13.5 10.8 -
Line-to-line resistance ohms @ 20℃ 0.365 1.24 -
Line-to-line inductance mH 0.32 1.3 -
Torque constant Nm/A 0.0255 0.074 -
Back EMF Vrms/KRPM 1.54 4.5 -
Weight g 57.2 95 -
Electrical time constant ms 0.87 1.05 -
Winding Type - Star connection Star connection -
Dielectric Strength - 600VAC / 1S, 2mA 600VAC / 1S, 2mA -
Insulation Resistance - 100MΩ @ 500VDC 100MΩ @ 500VDC -
Ambient Temperature °C -20 ~ +50 -20 ~ +50 -
Insulation Class - Class B Class B -
Electric Connection:
Wire Color Wire Type Function
Blue (BLU) UL1061, AWG26 NTC
Red (RED) UL1061, AWG26 NTC
Yellow UL1332, AWG20 Phase U
Red UL1332, AWG20 Phase V
Black UL1332, AWG20 Phase W
38mm Frameless Motor 120W | 0.69Nm | 7500 rpm | 48VDC

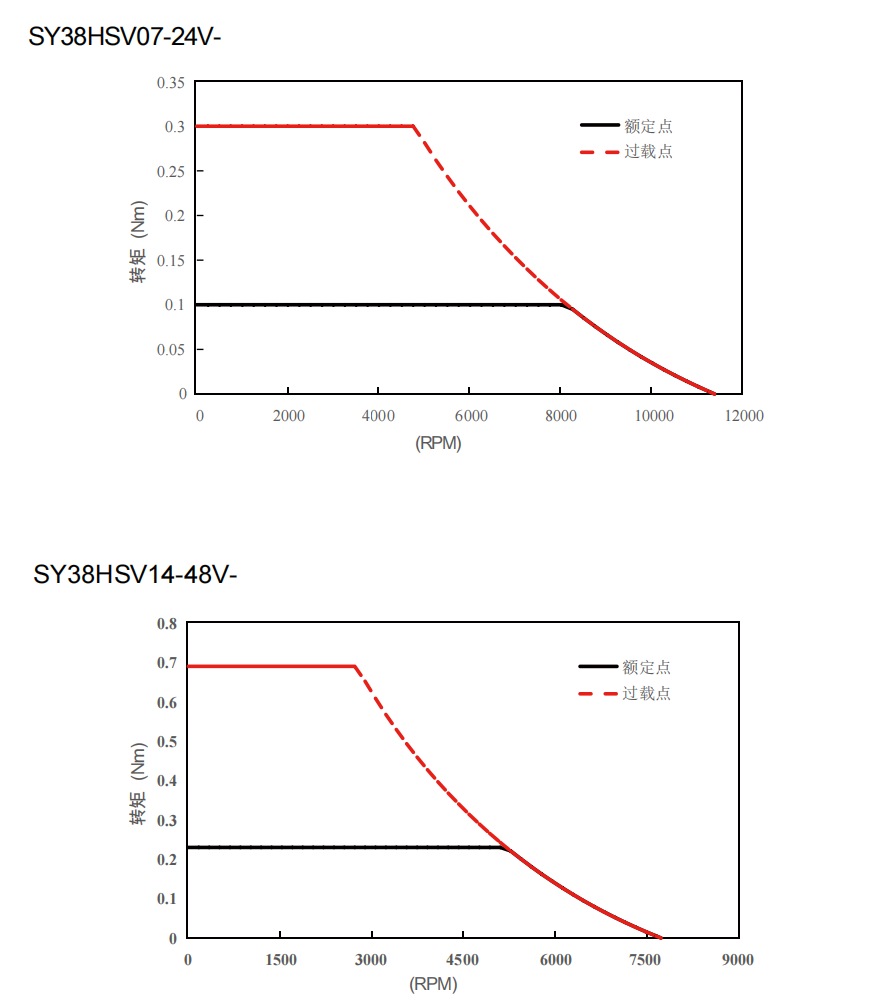

Torque Performance Curves
