Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating
Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating
Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating
Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating
Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

Steel grating is used for walkways, platforms and stairways, providing safe access solutions in any industry. Metal bar grating has been the predominant choice for open metal flooring. Features that make bar grating the preferred product include:

  • Available in steel, aluminum, or stainless steel
  • High strength-to-weight ratio
  • High percentage of open area
  • Easily fabricated to any configuration
  • Essentially maintenance-free

Common Specification Of Steel Grating
Material Standard ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,
Mild steel & Low carbon steel, etc
Bearing Bar
(width*thickness)
 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100 x10mm, etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'',
1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' , etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment Untreated(black), hot-dipped galvanized ,powder coated,
electroplate, painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing LCL(less than one container load): packed with plastic film then on the pallets
FCL(full container load): nude packing
Other special package :according to customers' requirements
Customization of your drawing or your unique sizes are available

Product Parameters

Bearing bar pitch Cross bar pitch load steel size ( Width ×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch load steel size (Width ×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating

Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating

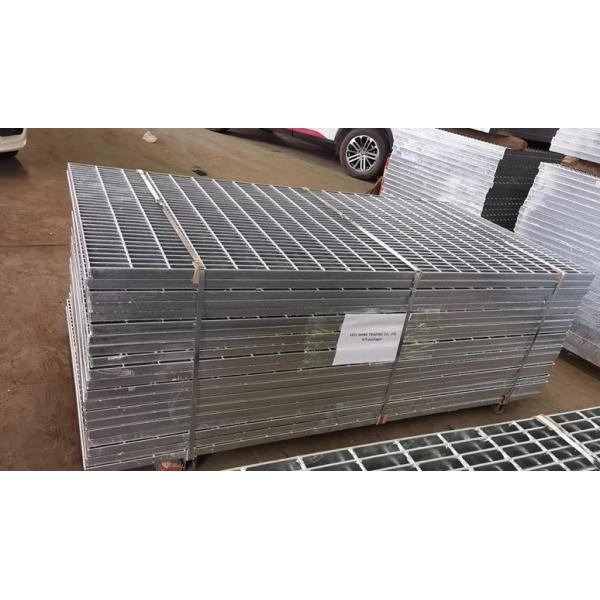

Packing:

Galvanized Steel Grid Price Building Material Press Locked Welded Serrated Bar Steel Grating
