Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

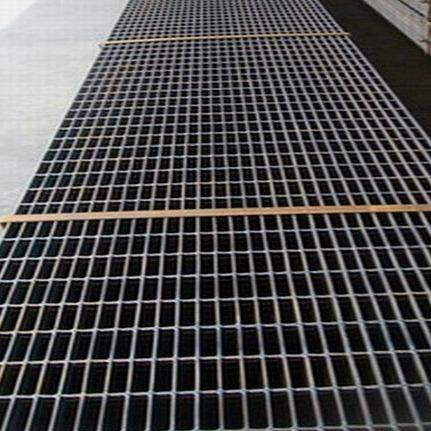

Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway

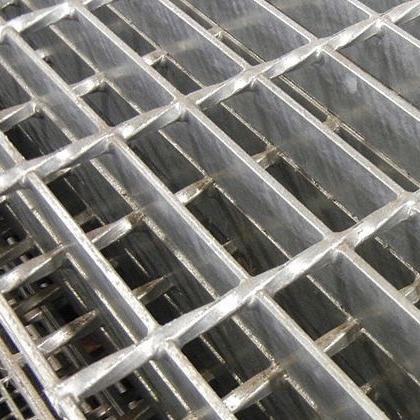

Steel gratings consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars etc.), to form a kind of steel products with square lattices among them. Their main applications are drain covers, steelwork platform panels, and steel stair treads.

Steel bar grating is also known as steel grating. Steel grating is made up of parallel bars that are connected together with perpendicular bars. The bars are most commonly connected through machine pressure welding or manual welding, as the case may be. However, there are other ways of joining the bars together. Alternatives include riveting, close meshing (swaging), and press-locking. The most economical method of joining is determined by the materials used and the bars' thickness.
Steel bar grating is usually made out of carbon steel orstainless steel. It has a very high ratio of strength-to-weight and a lot of open space, making it a widely used option for industrial flooring. However, it is also used for things such as fire escapes, street drains, and bridges.

(1) Structure: Welding with flat steel and cross/round bars with certain distances.

(2) Features: High strength, light structure, high bearing.

(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.

Material Mild steel / carbon steel / stainless steel+abrasive plate: Q235B, ASTM A36, S275JR etc.
Specification

All the stair treads can be customized

Bearing bar: 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc

Bearing bar pitch: 12.5, 22, 25.4, 30, 34, 40, 41, 60mm etc.

Cross bar: 5mm,6mm,8mm, round or twisted bar

Cross bar pitch: 33mm, 38mm 50mm, 76mm, 100mm
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement.
Galvanized standard ISO 1461; ASTM A123; GB/T13912:2002
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Package seaworthy package
MOQ 50 pieces

All gratings as per your requirements can be customized.

Common Specification of Steel Grating
Remarks: Special Material, High Zinc Coating and New Style can be Customized.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc
Bearing Bar
(Width x Thickness)		 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Payment Term
T/T, L/C, Western Union, Credit Card,
