Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate
Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate
Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate
Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate
Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate

Steel grid Board has in both at home and abroad industries get widely application, and main as industrial platform, and ladder pedal, and helped bar, and channel floor, and railway bridge side road, and high tower frame platform, and drains cover, and well cover, and road across gate, and stereo parking, and organ, and school, and factory, and enterprises, and playground, and garden Villa of fence, and also available for homes of outside window, and balcony guardrail, and highway, and railway of guardrail. Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.

Specification:

Product Name steel grating, walkway steel grating, building materials steel bar grating, galvanized steel grid
Material Standard Stainless steel, Low carbon steel, etc.
Bearing Bar (width*thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10…..100 x10mm etc;
I shape bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment untreated(black), hot-dipped galvanized, powder coated, painting or as per customers' requirement.

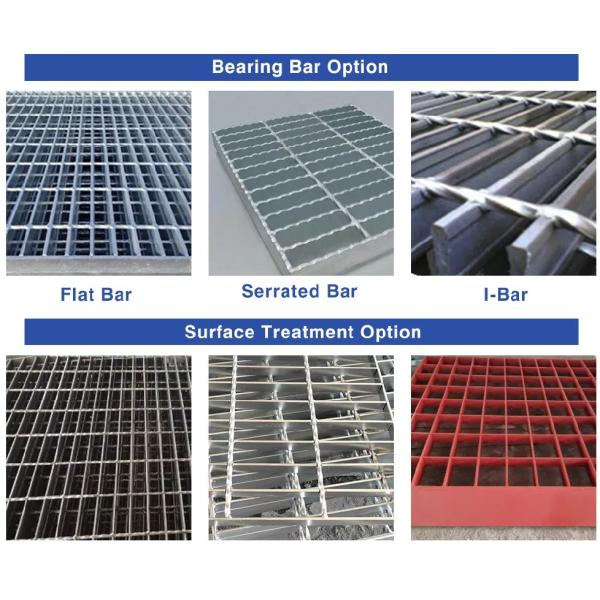

Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

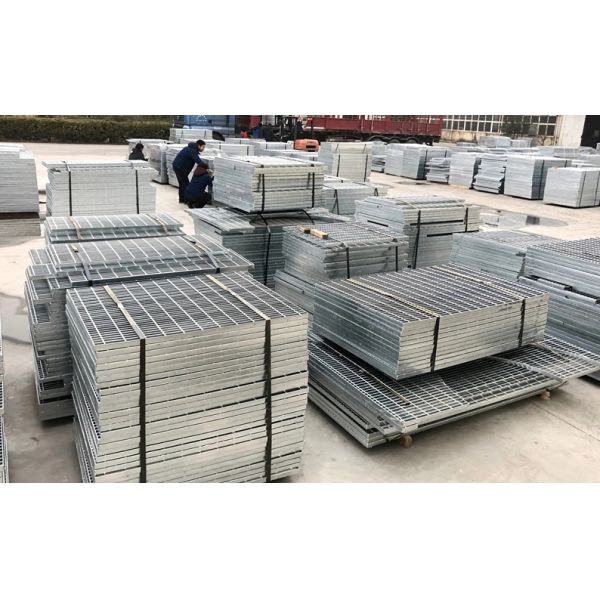

Packing packed on the pallets. Other special package: according to customers' requirements.
Remarks: Other sizes also can be customized according to customers' requirement.

No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

Hot Dipped Galvanized Aluminum Stainless Steel Grating for Trench Cover or Foot Plate

Steel Grating Feature

1) The steel grating can reduce the supportive material, investment, save workman and time.

2) It can be used in almost all applications.

3) Lightweight and economical.

4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.

Application:

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

4) Serrated steel gratings also be guardrail for garden, villa, balcony, highway, etc.
