Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating

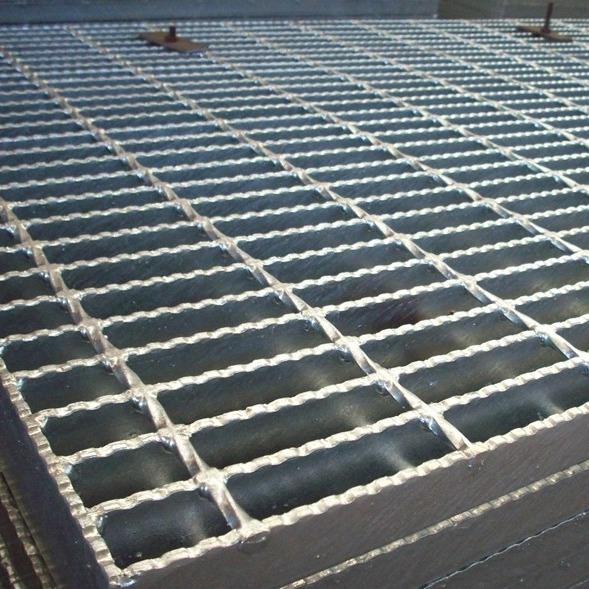

Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.

Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating

  • Materials: mild steel, stainless steel 304 or 316,Aluminum
  • Surface treatment: galvanizing, bitumen dipped, painted, untreated.

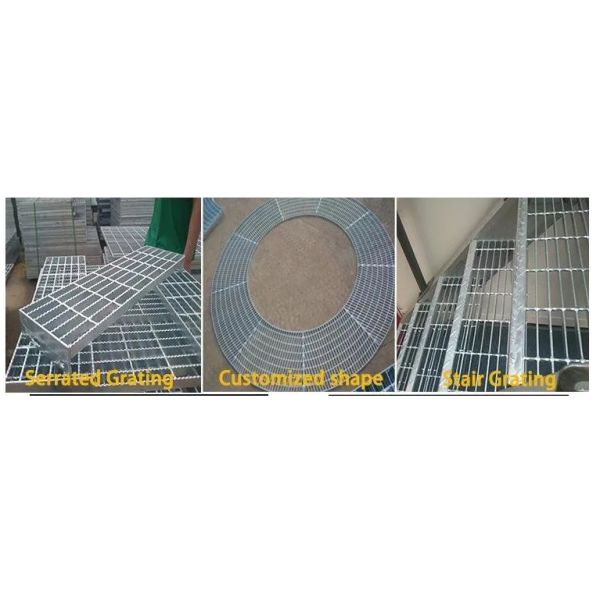

  • Top surface: plain, flattened, raised.

Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating

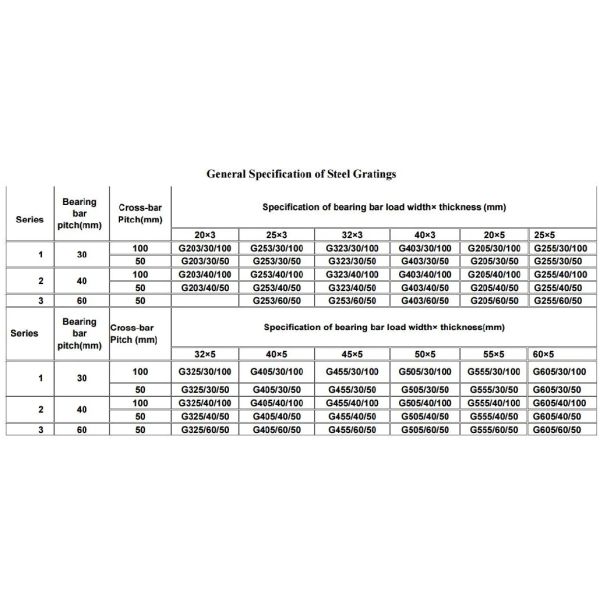

S.No. Grating Specification (Standard Panel)
Load Bar Type : Serrated
Cross Bar Size : 6mm twisted Square
Size : 6m x 0.905m
Finish : Hot Dip Galvanized
Pitch Size (in mm) : 41 x 100
1 Load Bar Size : 25 x 3mm
2 Load Bar Size : 25 x 4mm
3 Load Bar Size : 30 x 4mm
4 Load Bar Size : 38 x 4mm
5 Load Bar Size : 50 x 4mm
6 Clamps for G I Grating
Grating Manufactured are as per BS4592-1: 2006. Raw material
confirms to BS EN 10025 S275JR or equivalent. Hot Dip Galvanizing
confirms to EN ISO 1461/ASTM A123

Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating

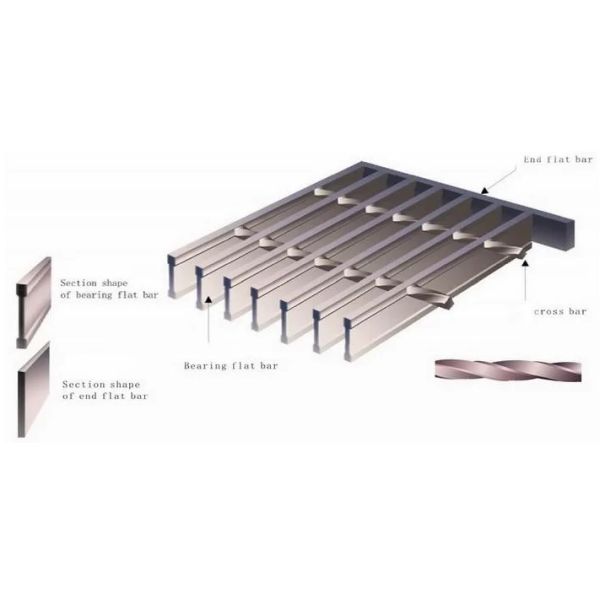

Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.

Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
