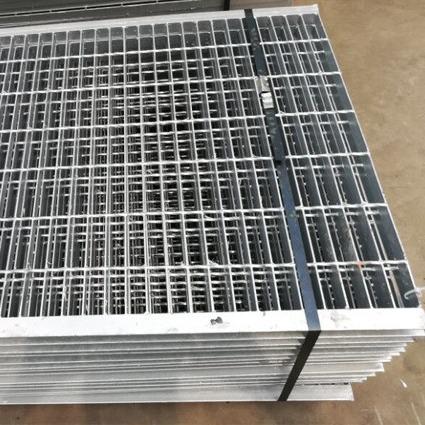

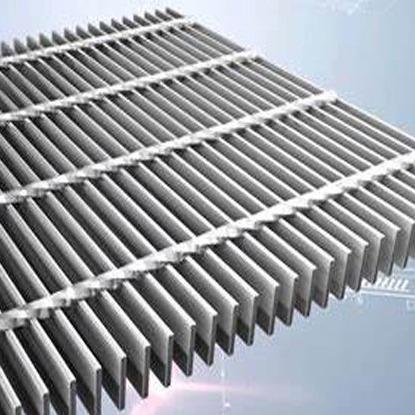

Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating
Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating
Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating
Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating
Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating

1.what is steel grating ?( Grating Metal galvanized grating) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

2.steel grating specification- Grating Metal galvanized grating
panel size available(black grating): 1000x5800mm or 1000x6000mm ,7315*1000mm

Bearing bar pitch Cross bar pitch load steel size ( Width ×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch load steel size (Width ×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

3. Anping metal walking grates introduction-- Grating Metal galvanized grating

Bearing bar type Flat bar I bar Serrated bar
Cross bar type Twisted bar Round bar flat bar
Production process welded Pressure locked
Surface treatment Self-colour Galvanized painted
application Platform walkway&floor Trench cover Steel stair treads
Suspended ceiling Barrier fence

bearing bar types:
serrated plain I type

surface treatment: mill finish,hot dip galvanized,painted
4.steel grating standard-- Grating Metal galvanized grating

Steel Grating Standard
Steel Grating Standard Steel Standard Galvanizing Standard
China Standard YB/T 4001.1-2007 GB700-88 GB/T13912-2002
USA Standard ANSI/NAAMM (MBG531) ASTM (A36) ASTM (A123)
U.K. Standard BS4592 BS4360 (43A) BS729
Australia Standard AS1657 AS3679 AS1650
Deutsche Standard DIN24537 DIN17100-80 DIN50976


Grating Metal galvanized grating
6. Grating Metal galvanized grating application
port platform floor grating

Professional Galvanized Grating Manufacturer Floor Drain Cover Industrial Walkways Steel Bar Grating
