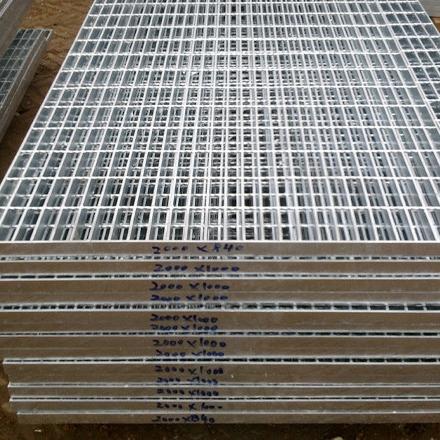

Earthquake Resistant 30*5 32*5 32*3 Galvanized Steel Grating Supplier
Earthquake Resistant 30*5 32*5 32*3 Galvanized Steel Grating Supplier
Earthquake Resistant 30*5 32*5 32*3 Galvanized Steel Grating Supplier
Earthquake Resistant 30*5 32*5 32*3 Galvanized Steel Grating Supplier
Specifications
Brand Name :
Qijie
Model Number :
steel grating
Certification :
SGS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15days
Packaging Details :
pallets
Material :
Mild Steel
Finish :
galvanized
size :
1.2m x 2.4m
Support bar :
32x5mm
openning: :
40x50mm, 50x100mm
wire rod :
6mm
Description

Earthquake Resistant 30*5 32*5 32*3 Galvanized Steel Grating Supplier

Press-locked steel bar grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process. At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then fixed it. Sometimes the horizontal pole also used flat steel.

The grating is widely used for floor, catwalk, Mezzanines/decking, stair tread, fencing; vault bin floor floor, ramp, dock/warehouse, all kinds of trench cover, window and machinery safe guards, wash rack, ventilation screen, storage rack, suspended ceiling, drainage pit cover and etc.

Steel grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.


Technical Data Table

Material 1.Carbon Steel Q235 2.Stainless Steel 304 / 316
Type Press lokced / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space : 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992

Material ▪ Mild Steel (Carbon Steel)
▪ Stainless Steel
Bearing bar size ▪ 3mm thickness with 20mm to 40mm depth.
▪ 5mm thickness with 20mm to 120mm depth.
▪ 8mm thicness, 10mm thickness with 60mm to 140mm depth.
▪ Customized size available.
Bearing bar style Smooth bar, Serrated bar, Smooth I Bar, Serrated I bar
Bearing bar space (center to center) ▪ 12.5mm, 15mm, 30mm, 40mm, 50mm
Cross bar style ▪ Twist bar
▪ Round bar
▪ Rib bar.
Cross bar space (center to center) ▪ 50mm, 76mm, 100mm
Surface treatment ▪ Untreated
▪ Hot Dipped Galvanized
▪ Painted.
Package ▪ Steel Pallet / Plywood Pallet, or according to customers' requirement.
Application ▪ Walkway, Industrial Platform, Sump, Trench, Drainage and so on.
Material standard ▪ GB700-88
▪ AS3679
▪ ASTM(A36)
▪ S4360(43A)
Grating standard ▪ YB/T4001.1-2007
▪ AS1657-2013
▪ BS4592-2006
▪ ANSI / NAAMM(MBG531-88)

No. Bearing Bar Pitch
(mm)		 Standard Panel Width
(Bearing Bar Thickness 5mm)		 Bearing Bar Number
(PC)		 Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch.
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17

Application of steel grating:
