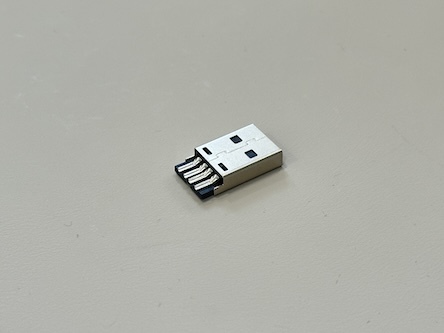

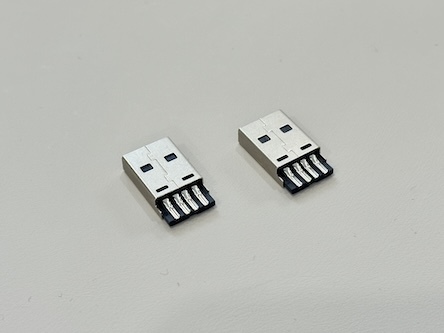

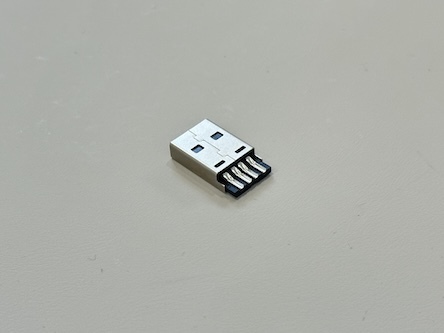

High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector
Specifications
Brand Name :
ShuangYi
Model Number :
USB-04M-A4S2A6-040H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.08-0.12 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
One-Piece Shell + Solder Cup Terminals
Housing Material :
PBT G/F, V0 Black
Contact Plating :
30 µ″ Gold on contact area
Terminal Base Material :
Brass C2680-H
Solder/Crimp Area Plating :
Bright Tin ≥ 80 µ″
Insulation Resistance :
≥1000 MΩ @ 500V DC
Rated Current :
3A max (all pins), 250V AC
Withstand Voltage :
500V AC / 1 minute
Environmental Compliance :
RoHS/REACH compliant
Application Type :
Wire-soldering type (custom length & gauge available)
Description

Product Description

This USB 2.0 AM integrated connector is designed for stable electrical and signal transmission in power supply, consumer electronics, industrial devices, and automotive accessories.
The one-piece metal shell enhances mechanical strength, while gold-plated contacts ensure reliable conductivity and long-term durability.
The connector uses reinforced solder-cup terminals for easy wire termination and supports customized cable length, gauge, and housing options.
The nickel-plated shell provides excellent corrosion resistance and EMI shielding, making it suitable for applications requiring stable data and power performance.

High-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission ConnectorHigh-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission ConnectorHigh-Durability USB 2.0 AM Integrated Connector | Wire Solder Type | Gold-Plated Contacts & Nickel-Plated Shell | Electrical Signal Power Transmission Connector

Product Type USB 2.0 AM Integrated Connector (Wire Solder Type)
Structure One-Piece Shell + Solder Cup Terminals
Contact Plating 30 µ″ Gold on contact area
Terminal Base Material Brass C2680-H
Terminal Nickel Plating ≥ 50 µ″
Solder/Crimp Area Plating Bright Tin ≥ 80 µ″
Shell Material SPCC, Thickness 0.30 mm
Shell Plating Nickel ≥ 80 µ″
Housing Material PBT G/F, V0 Black
Rated Current 3A max (all pins), 250V AC
Contact Resistance ≤ 30 mΩ
Insulation Resistance ≥ 1000 MΩ @ 500V DC
Withstand Voltage 500V AC / 1 minute
Mating Force ≤ 35 N
Unmating Force ≥ 10 N
Durability 1500 cycles
Applicable Cable Wire-soldering type (custom length & gauge available)
Environmental RoHS/REACH compliant

Applications

Power and charging cables

Consumer electronics and peripheral devices

Automotive diagnostic and power interfaces

Industrial control equipment

Servers, data storage, and communication devices

Custom wire harness production

OEM / ODM cable assemblies

Precautions

Ensure wire gauge matches solder-cup capacity before assembly.

Avoid excessive soldering heat to protect insulation and plating.

Keep contact surfaces clean to maintain conductivity.

Follow correct insertion/extraction force to prevent deformation.

Store in dry, non-corrosive environments prior to assembly.

Use proper strain-relief design for wire harness production.
