Specifications
Brand Name :
ShuangYi
Model Number :
USB-04F-A6M2A2-10LH
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.11-0.16 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Clamp-mount with protective housing
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
Straight 180°
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS 2.0
Withstand Voltage :
AC 500V/min
Description

Product Description

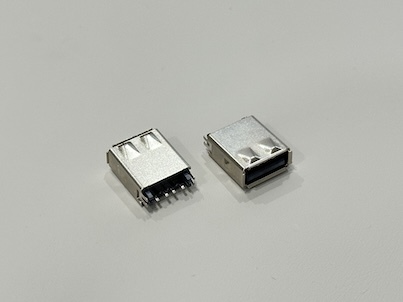

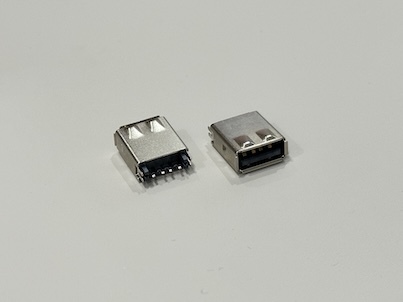

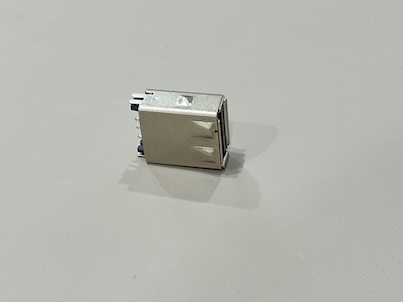

This USB 2.0 A/F clamp-type connector is engineered for reliable cable termination and stable device-side integration. The gold-flash plated terminals deliver enhanced conductivity, low contact resistance, and improved corrosion resistance, making the connector suitable for long-term and high-frequency mating. The protective housing design reinforces mechanical stability, while the stainless-steel and SPCC shells provide added shielding and structural strength. With UL94-V0 flame-retardant materials and multiple plating layers, this connector meets industry requirements for durability, safety, and consistent transmission performance.

USB 2.0 A/F Clamp-Type Connector with Protective Housing | Gold-Flash Plated Terminal Connector for PCB, Cable Assembly & Electronic DevicesUSB 2.0 A/F Clamp-Type Connector with Protective Housing | Gold-Flash Plated Terminal Connector for PCB, Cable Assembly & Electronic DevicesUSB 2.0 A/F Clamp-Type Connector with Protective Housing | Gold-Flash Plated Terminal Connector for PCB, Cable Assembly & Electronic Devices

Connector Type USB 2.0 A/F Clamp-Type Connector
Structure Clamp-mount with protective housing
Terminals Material Brass (C2680)
Housing Material LCP, UL94-V0
Inner Shell Material Stainless Steel (SUS)
Outer Shell Material SPCC Steel
Plating – Terminal Nickel ≥ 50 μ"
Plating – Terminal Tin ≥ 80 μ" (solder/crimp area)
Plating – Terminal Gold Gold Flash (G/F)
Plating – Inner Shell Nickel ≥ 30 μ"
Plating – Outer Shell Nickel ≥ 50 μ"
Mating Force ≤ 35 N
Unmating Force ≥ 10 N
Durability 1500 cycles @ 200 cycles/hour
Flammability Rating UL94-V0
Application Wire-to-board / cable assembly / device port integration

Applications

Consumer electronics ports and charging interfaces

Power banks, adapters, small appliances

Industrial control devices and communication modules

Automotive electronic modules

Cable assembly production and OEM/ODM harness manufacturing

PCB-mounted USB extension ports

Precautions

Ensure the mating dimensions match USB 2.0 A/F standards for proper fit.

Avoid excessive force or misalignment during installation to prevent shell deformation.

Store in a dry environment to protect plated surfaces from oxidation.

Suitable for automated assembly; verify clamp direction during production.

Follow recommended soldering and crimping parameters for stable electrical performance.
