Specifications
Brand Name :
ShuangYi
Model Number :
USB-04M-A3S1A2-000R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.02-0.03 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Clamp-mount with protective housing
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
Straight 180°
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS 2.0
Withstand Voltage :
AC 500V/min
Description

Product Description

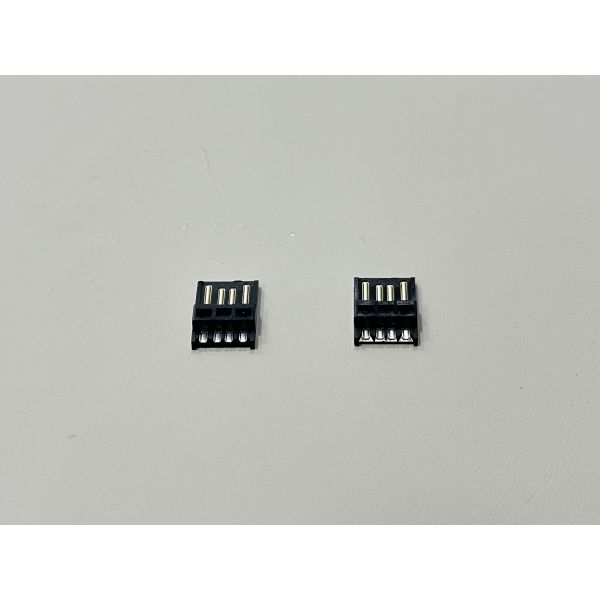

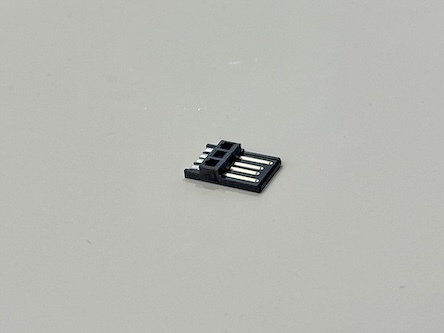

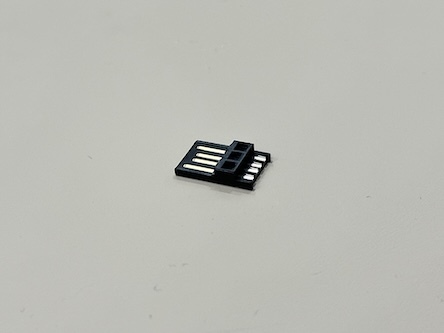

This USB 2.0 AM wire-soldering connector is engineered for reliable power and data transmission in electronic, automotive, and consumer-device applications. The connector features a black flame-retardant housing, gold-flash contacts for enhanced conductivity, and bright-tin plating on solder areas to ensure long-term stability. Manufactured with precise tolerances and ROHS-compliant materials, it supports consistent performance, secure mating, and strong mechanical durability across repeated insertions.

High-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable ConnectorHigh-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable ConnectorHigh-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable Connector

Product Type USB 2.0 AM Wire-Soldering Connector
Structure Wire-solder type, black housing
Plating Gold-flash on contact area; bright tin ≥80u" on solder area; nickel ≥50u"
Housing Material PBT, flame-retardant, V0 grade, ROHS2.0 compliant
Terminal Material Brass C2680-H
Contact Resistance ≤30mΩ
Rated Current 1.5A at 250VAC
Dielectric Withstanding Voltage 500VAC / 1 minute
Insulation Resistance ≥1000MΩ at 500VDC
Durability 1500 cycles
Salt Spray Test ≥24 hours
Operating Type Male connector
Assembly Wire soldering
Compatibility USB 2.0 devices, power & data transmission

Applications

Power and signal transmission cables

Consumer electronics, chargers, adapters

Automotive electronic wiring

Industrial control interfaces

Custom wire harness and PCB assemblies

Server and data-communication devices

Precautions

Ensure proper wire-soldering to avoid resistance increase.

Avoid excessive force during insertion/removal to maintain contact integrity.

Keep terminals clean and dry before assembly.

Verify compatibility with USB 2.0 standard devices.

Store in a non-corrosive environment to protect plating.
