Specifications
Brand Name :
ShuangYi
Model Number :
USB-04F-A1S1A2-011R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.06-0.09 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Two-piece stamped iron shell (SPCC)
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
Straight 180°
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS 2.0
Withstand Voltage :
AC 500V/min
Description

Product Description

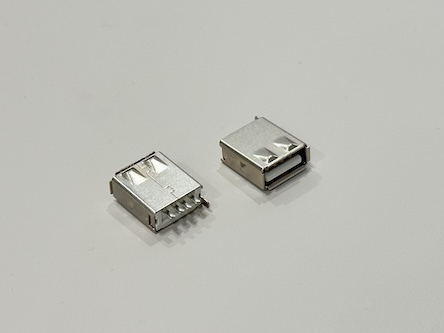

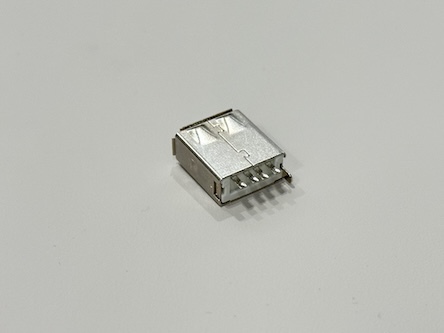

This USB A/F 180° wire-solder connector is designed for high-reliability electronic and power-signal applications. The gold-flash contact terminals ensure stable transmission, reduced resistance, and long-term corrosion resistance. The white PBT reinforced housing delivers excellent heat stability, flame-retardant performance, and mechanical strength. Its robust structure supports customization for different cable gauges, automotive devices, consumer electronics, server equipment, and PCB-level integration. The nickel-plated metal shell enhances shielding performance and durability, making it suitable for precise electrical connection and cable-end assembly.

High-Durability USB A Female 180° Wire-Solder Connector | Gold-Flash Terminals | Electrical Signal Transmission ConnectorHigh-Durability USB A Female 180° Wire-Solder Connector | Gold-Flash Terminals | Electrical Signal Transmission ConnectorHigh-Durability USB A Female 180° Wire-Solder Connector | Gold-Flash Terminals | Electrical Signal Transmission Connector

Type USB A Female 180° Wire-Solder Connector
Structure 2-piece housing + terminal assembly
Housing Material PBT + Glass Fiber, white, UL94V-0
Contact Material Brass, nickel under-plating, gold-flash contact area
Shell Material Iron, nickel plated
Plating Thickness Gold-flash on contact area; tin plating on solder area
Current Rating 1.5A max
Voltage Rating 250V AC
Contact Resistance ≤30 mΩ
Insulation Resistance ≥500 MΩ
Dielectric Withstanding Voltage 500V AC / 1 min
Durability 1,500 cycles
Operating Temperature –30°C to +80°C
Salt Spray ≥24 hours
Wire Compatibility Suitable for power / signal cable soldering
Compliance RoHS 2.0

Applications

Power and signal cable assembly for consumer electronics

Automotive diagnostic interfaces and in-vehicle electronic modules

Server, storage, and industrial control equipment

Custom cable harnesses for charging devices and data-transmission systems

PCB-to-cable interface modules requiring stable USB connections

Precautions

Ensure proper soldering temperature to avoid damage to contacts.

Keep connectors dry before assembly to maintain insulation performance.

Avoid excessive pulling force on the cable after soldering.

Store in a cool, dust-free environment to prevent oxidation.

Confirm compatibility with USB 2.0 electrical requirements before integration.
