Specifications
Brand Name :
ShuangYi
Model Number :
USB-04M-A4S2A2-040H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.05-0.08 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Clamp-mount with protective housing
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
Straight 180°
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS 2.0
Withstand Voltage :
AC 500V/min
Description

Product Description

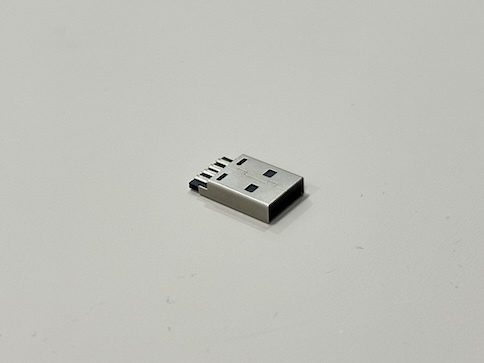

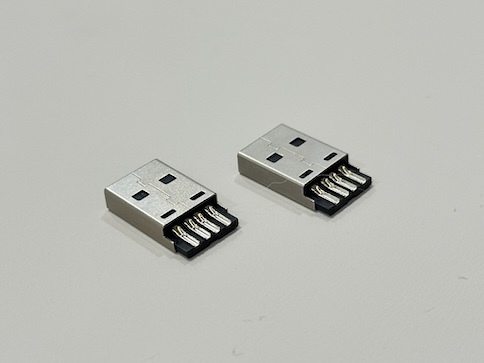

This USB 2.0 AM wire-soldering connector is engineered for reliable power and data transmission in electronic, automotive, and consumer-device applications. The connector features a black flame-retardant housing, gold-flash contacts for enhanced conductivity, and bright-tin plating on solder areas to ensure long-term stability. Manufactured with precise tolerances and ROHS-compliant materials, it supports consistent performance, secure mating, and strong mechanical durability across repeated insertions.

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for CustomizationUSB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for CustomizationUSB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Connector Type USB 2.0 AM Male Integrated Solder-Type Connector
Structure One-piece housing, solder-cup terminals
Application Wire-to-Cable electrical connection
Plating Gold-plated contact area (G/F), nickel-plated shell
Housing Material High-strength black PBT, flame-retardant
Terminal Material Copper alloy C2680
Shell Material SPCC steel
Current Rating 1.5A @ 250VAC
Contact Resistance ≤ 30mΩ
Insulation Resistance ≥ 1000MΩ @ 500VDC
Withstanding Voltage 500VAC / 1 min
Durability ≥ 1500 mating cycles
Operating Temperature −20°C ~ +85°C
Wire Compatibility Suitable for various cable diameters (per customer requirement)
Compliance RoHS / REACH

Applications

Consumer electronics device wiring

Power and signal transmission harnesses

Automotive wire harness customization

Industrial control equipment

Server and storage device cable assemblies

DIY and custom-made cable manufacturing

Precautions

Ensure proper soldering temperature to avoid damaging terminals.

Select matching cable diameter and conductor size before assembly.

Avoid excessive pulling or twisting during installation.

Keep connector away from humid or corrosive environments.

Verify compatibility with USB 2.0 specifications when designing assemblies.
